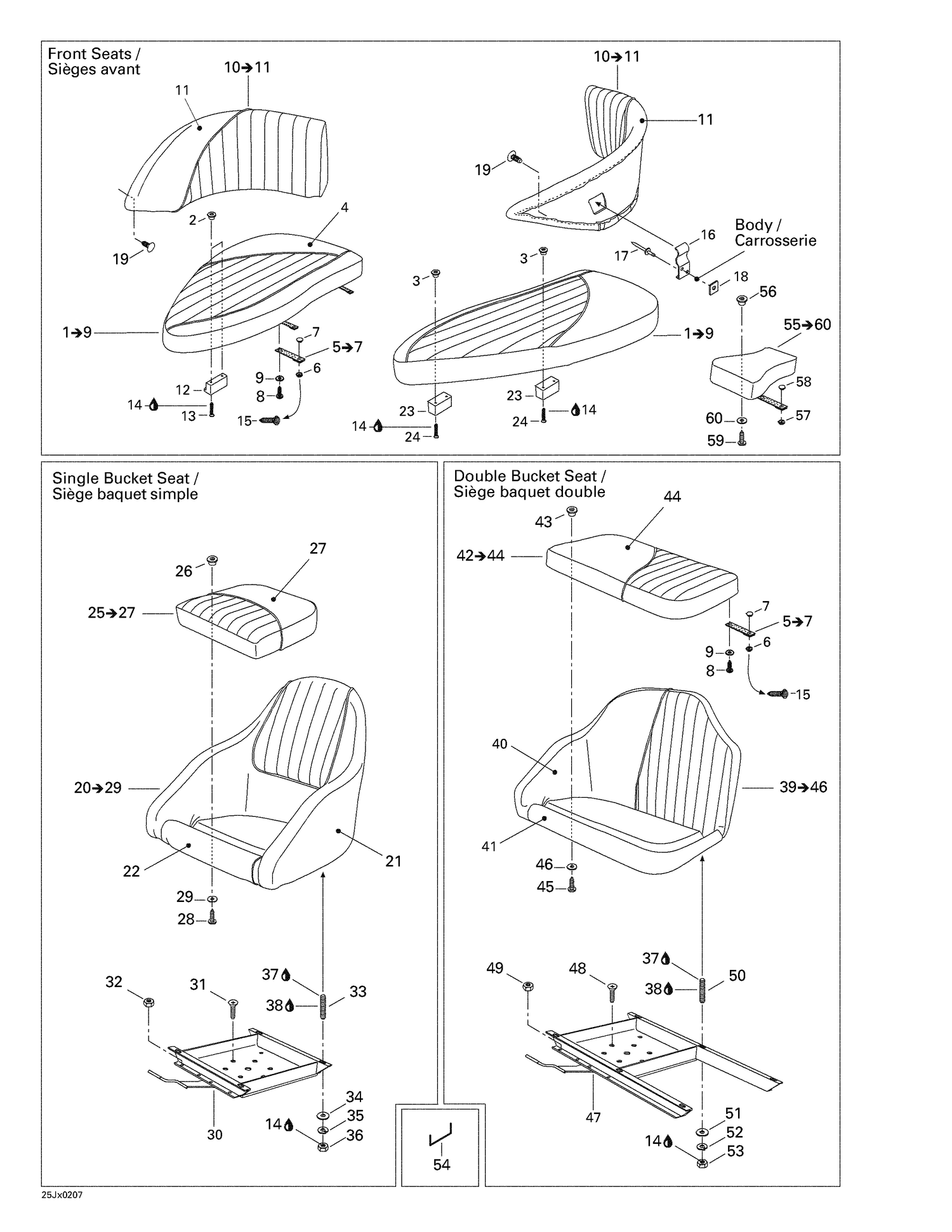

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - Double Bucket Seat Shell Cover (Starboard) |
| 2 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 3 |
204100044 |
TEE-NUT #10-32 - Call your local BRP dealership |
| 4 |
204611869 |
Front Seat Cushion Cover (Port Side) |
| 6 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 7 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 8 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 9 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 11 |
204611873 |
Front Seat Backrest Cover (Port Side) |
| 12 |
204611598 |
Seat Base Catch |
| 13 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
204100046 |
Threaded Stud 5/8” |
| 16 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 17 |
293150043 |
Pop Rivet 3/16" |
| 18 |
Not |
Available As Spare Part - Insert |
| 19 |
293730014 |
Black Dart |
| 21 |
204612098 |
Seat Shell Cover |
| 22 |
204612099 |
Seat Shell Front Cover |
| 23 |
204611805 |
LATCH - Call your local BRP dealership |
| 24 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 26 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 27 |
204612101 |
Single Bucket Seat Cushion Cover |
| 28 |
204100014 |
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership |
| 29 |
234082600 |
Flat Washer 8 mm, Stainless |
| 30 |
Not |
Available As Spare Part - Single Seat Swivel Base |
| 31 |
208463560 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 32 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 33 |
204100077 |
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 34 |
234062600 |
Flat Washer M6, Stainless |
| 35 |
234161601 |
Lock Washer Helical M6 |
| 36 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 37 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 38 |
293800005 |
Loctite 271, 10 ml |
| 40 |
Not |
Available As Spare Part - Double Bucket Seat Shell Cover (Port Side) |
| 41 |
204611399 |
Seat shell Inside Cover |
| 43 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 44 |
204612050 |
Double Bucket Seat Cushion Cover (Port S |
| 45 |
204100014 |
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership |
| 46 |
234082600 |
Flat Washer 8 mm, Stainless |
| 47 |
204611755 |
Double Bucket Seat Swivel Base (Port Sid |
| 48 |
208463560 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 49 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 50 |
204100077 |
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 51 |
234062600 |
Flat Washer M6, Stainless |
| 52 |
234161601 |
Lock Washer Helical M6 |
| 53 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 54 |
Not |
Available As Spare Part - Staple 1/4" |
| 56 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 57 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 58 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 59 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 204611016 |
Double |
Bucket Seat Cushion (Starboard) 204611016 |
| 204611325 |
Front |
Seat Backrest Ass'y (Starboard) (1 204611325 |
| 204611832 |
Single |
Bucket Seat Ass’y 204611832 |
| 204611838 |
Double |
Bucket Seat Ass'y (Starboard) 204611838 |
| 204611843 |
Front |
Seat Backrest Ass’y, Port Side 204611843 |
| 204611844 |
Front |
Seat Backrest Ass’y, Starboard 204611844 |
| 204611871 |
Front |
Seat Cushion Cover (Starboard) 204611871 |
| 204611875 |
Front |
Seat Backrest Cover (Starboard) 204611875 |
| 204611881 |
Retaining |
Strap 204611881 |
| 204611940 |
SEAT |
LATCH - Call your local BRP dealership 204611940 |
| 204611943 |
Front |
Seat Cushion Ass'y (Port Side) (18 204611943 |
| 204611944 |
Front |
Seat Cushion Ass'y (Starboard) (18 204611944 |
| 204612019 |
Front |
Seat Cushion Ass'y (Starboard) 204612019 |
| 204612052 |
Double |
Bucket Seat Cushion Cover (Starbo 204612052 |
| 234061600 |
Stainless |
Flat Washer M6 234061600 |
| 293730006 |
Black, |
Dart 293730006 |
