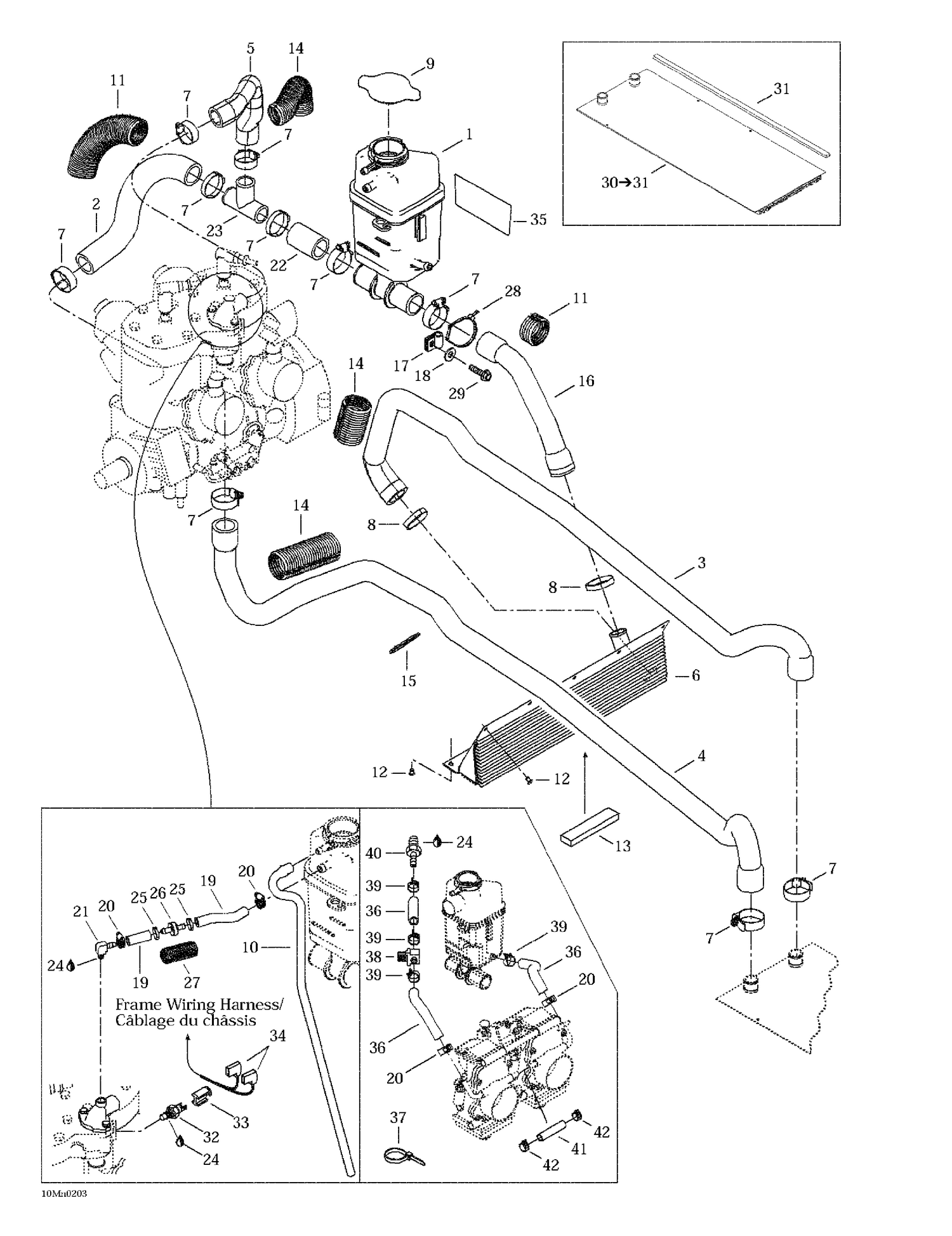

01- Cooling System
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000167 | Tank Coolant |
| 2 | 509000141 | ENGINE INLET HOSE - Call your local BRP dealership |
| 3 | 509000003 | RADIATOR INLET HOSE - Call your local BRP dealership |
| 4 | 509000145 | Radiator Outlet Hose |
| 5 | 509000142 | Hose |
| 6 | 509000150 | Front Radiator |
| 7 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 8 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 9 | 509000187 | Pressure Cap This part replaces 414684700. |
| 10 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 11 | 219704413 | Was 415084700 Protective Shield |
| 12 | 390402200 | Pop Rivet 3/16" |
| 13 | 219704364 | Neoprene Seal (1PAC=3M) |
| 14 | 219704402 | Tubing 25 MM 1000MM Long |
| 15 | 293750008 | Tie Wrap 368 mm |
| 16 | 509000144 | RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 17 | 415052400 | Bracket |
| 18 | 391301600 | Washer |
| 19 | 509000093 | Hose 8 mm |
| 20 | 293650170 | Tridon Gear Clamp This part replaces 293650128. |
| 21 | 293700020 | Elbow Fitting 90° |
| 22 | 509000143 | Hose |
| 23 | 509000219 | T-Fitting This part replaces 414619900. |
| 24 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 25 | 293650053 | Crimp Clamp |
| 26 | 509000153 | Check Valve |
| 27 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 28 | 509000165 | Tie Rap |
| 29 | 250000992 | Screw-Forming Hex.Hd.Fl.Bzn M5 X 20 This part replaces 210252040. |
| 31 | 518322360 | Radiator Protector |
| 32 | 512047000 | Temperature Sensor |
| 33 | 515175297 | Connector Plug |
| 34 | 409010300 | Female Terminal |
| 35 | 514053399 | Reflective Sheet |
| 36 | 509000093 | Hose 8 mm |
| 37 | 414115200 | Tie-Rap 180 mm |
| 38 | 512059324 | Valve 5/16” |
| 39 | 414655700 | Spring Clamp |
| 40 | 293710082 | STRAIGHT FITTING - Call your local BRP dealership |
| 41 | 404161956 | Hose |
