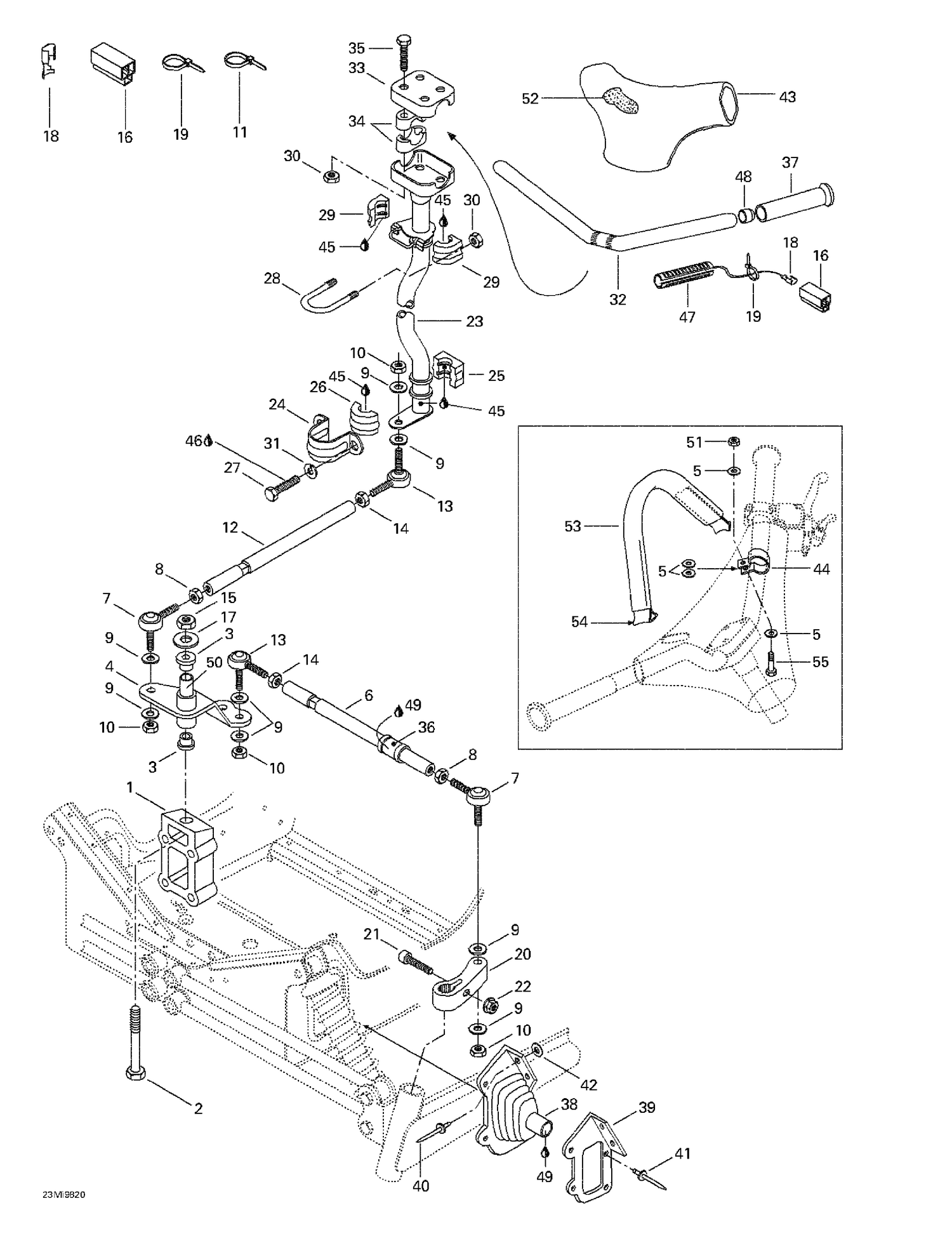

| Ref | Part Number | Description |
|---|
| 1 |
506121400 |
Block |
| 2 |
222028565 |
Screw M12 x 85 |
| 3 |
415041100 |
CUSHION - Call your local BRP dealership |
| 4 |
506133800 |
Pivot Arm |
| 5 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 6 |
506131300 |
Tie Rod |
| 7 |
506151492 |
RH BALL JOINT - Call your local BRP dealership This part replaces 414768000. |
| 8 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 9 |
503175800 |
Washer |
| 10 |
232501416 |
Elastic Flange Nut M10 This part replaces 732610042. |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
506110800 |
Tie Rod |
| 13 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 414768100. |
| 14 |
250100016 |
LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 15 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 16 |
409204300 |
Female Housing |
| 17 |
506136400 |
FLAT WASHER - Call your local BRP dealership |
| 18 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 19 |
293750001 |
Tie Wrap 94 mm |
| 20 |
506144800 |
RH Steering Arm |
| 21 |
222983565 |
Allen Screw M8 x 35 |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 23 |
506149600 |
Main Tube |
| 24 |
517126200 |
Retainer Support |
| 25 |
572064400 |
Bushing |
| 26 |
572064500 |
BUSHING - Call your local BRP dealership |
| 27 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 28 |
506060600 |
U-clamp |
| 29 |
572067100 |
HALF-BUSHING - Call your local BRP dealership |
| 30 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 31 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 32 |
506143902 |
Handlebar |
| 33 |
506055400 |
Steering Clamp |
| 34 |
709400919 |
Steering Support This part replaces 414491600. |
| 35 |
207085544 |
Hex. Screw M8 X 55 This part replaces 222085565. |
| 36 |
572036500 |
BUSHING - Call your local BRP dealership |
| 37 |
506151530 |
RH Grip 6-1/2" This part replaces 572061700. |
| 38 |
570024800 |
RH Tie Rod Cap |
| 39 |
517241200 |
RH Cap Plate |
| 40 |
390906800 |
Pop Rivet 3/16" |
| 41 |
390402200 |
Pop Rivet 3/16" |
| 42 |
517124300 |
Washer |
| 43 |
415106500 |
Cover |
| 44 |
506148200 |
Support Plate |
| 45 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 46 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 47 |
515175573 |
Heating Grip This part replaces 410110000. |
| 48 |
572081900 |
HANDLEBAR END - Call your local BRP dealership |
| 49 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 50 |
415038000 |
Pivot |
| 51 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 52 |
415106600 |
Foam |
| 53 |
506152115 |
Strap Ass'y This part replaces 415090200. |
| 54 |
506152115 |
Strap Ass'y This part replaces 415095500. |
| 506144900 |
Bras |
De Direction GA 506144900 |
| 506144900 |
LH |
Steering Arm 506144900 |
| 517241300 |
LH |
CAP PLATE - Call your local BRP dealership 517241300 |
| 517241300 |
Plaque |
De Capuchon GA - Appelez votre concessionnaire BRP local 517241300 |
| 570024900 |
Capuchon |
De Timonerie GA - Appelez votre concessionnaire BRP local 570024900 |
| 570024900 |
LH |
TIE ROD CAP - Call your local BRP dealership 570024900 |
