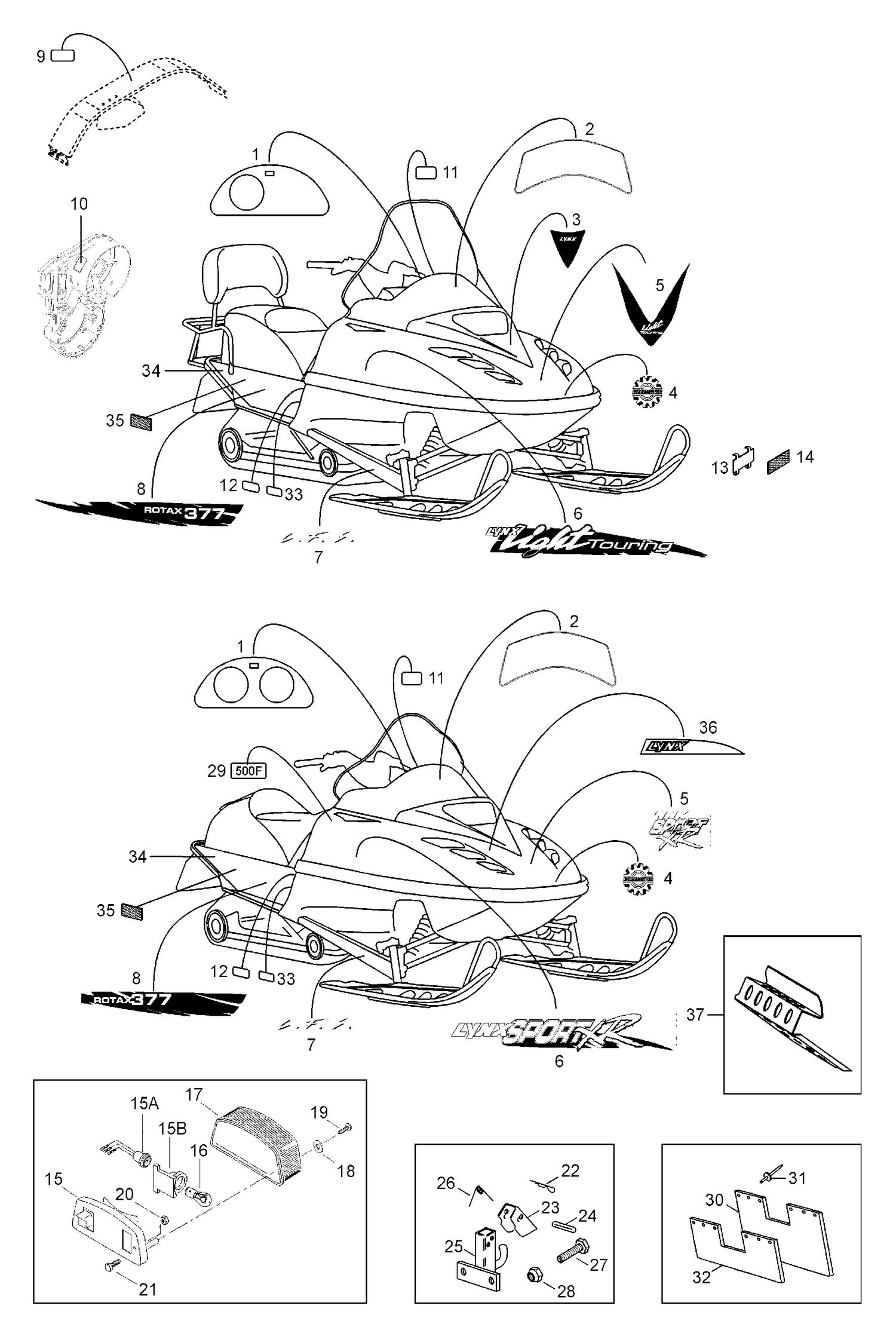

| Ref | Part Number | Description |
|---|
| 1 |
5243305 |
Instrument panel decal |
| 2 |
5241725 |
Instruction decal |
| 3 |
Not |
Available As Spare Part - Decal hood, light - DOES NOT APPLY TO THIS MODEL |
| 4 |
516008738 |
Logo 48mm "BRP" This part replaces 516000282. |
| 5 |
5243304 |
Decal for hood, front |
| 6 |
5243300 |
Decal hood R.H. |
| 6 |
5243301 |
Decal hood L.H. |
| 7 |
5343311 |
LFS-decal blue/yellow |
| 8 |
5244779 |
Decal for frame L.H. |
| 8 |
5244780 |
Decal for frame R.H. |
| 9 |
546820 |
Belt quard decal |
| 10 |
544073 |
Fan belt decal |
| 11 |
549711 |
Dacal for instrument |
| 12 |
544068 |
Oil check decal |
| 13 |
5440839 |
Support |
| 14 |
21060 |
White reflector |
| 15 |
414979400 |
Taillamp housing |
| 15A |
414979400 |
Socket |
| 15B |
414979411 |
Rubber damper |
| 16 |
520000758 |
Bulb This part replaces 410504000. |
| 17 |
414513700 |
Lens |
| 18 |
414516400 |
Washer - Call your local BRP dealership |
| 19 |
40613 |
Screw |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 21 |
40002 |
Screw M6x40 |
| 22 |
Not |
Available As Spare Part - Needle pin - DOES NOT APPLY TO THIS MODEL |
| 23 |
Not |
Available As Spare Part - Latch - DOES NOT APPLY TO THIS MODEL |
| 24 |
Not |
Available As Spare Part - Cotter - DOES NOT APPLY TO THIS MODEL |
| 25 |
Not |
Available As Spare Part - Draw hook - DOES NOT APPLY TO THIS MODEL |
| 26 |
Not |
Available As Spare Part - Spring - DOES NOT APPLY TO THIS MODEL |
| 27 |
Not |
Available As Spare Part - Screw M10x25 - DOES NOT APPLY TO THIS MODEL |
| 28 |
Not |
Available As Spare Part - Nut elastic M10 - DOES NOT APPLY TO THIS MODEL |
| 29 |
5344777 |
Decal 500 F |
| 30 |
534727 |
Snow guard |
| 31 |
36037 |
Rivet |
| 32 |
537577 |
Support |
| 33 |
418002200 |
CE-decal |
| 34 |
5144775 |
Frame |
| 35 |
21121 |
REFLECTOR (YELLOW) - Call your local BRP dealership |
| 36 |
5243302 |
Upper decal hood R.H |
| 36 |
5243303 |
Upper decal hood L.H. |
| 37 |
5243452 |
L.H. Front footrest |
