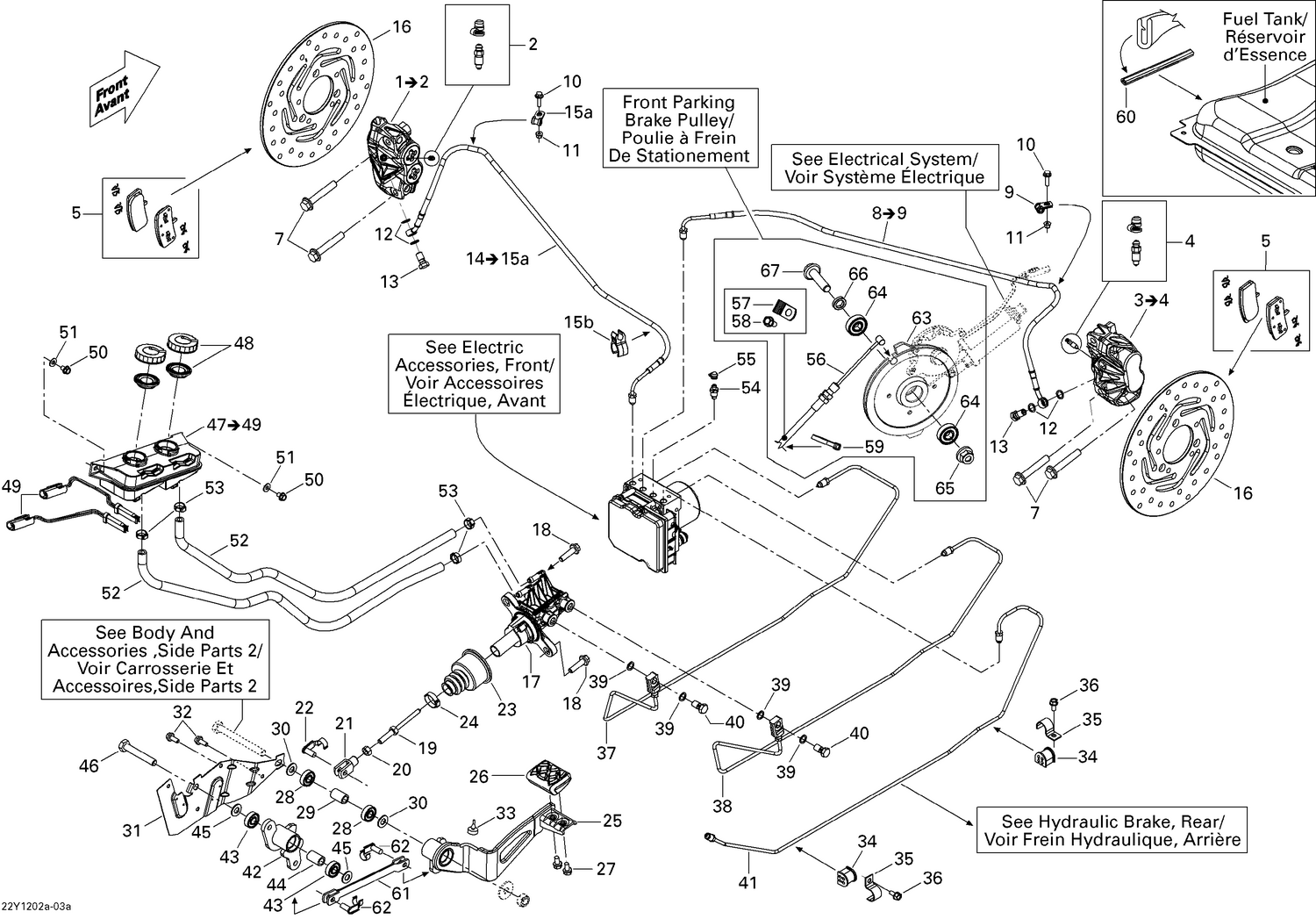

06- Hydraulic Brake, Front
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 219800045 | BLEED SCREW AND SPRING KIT - Call your local BRP dealership |
| 4 | 219800045 | BLEED SCREW AND SPRING KIT - Call your local BRP dealership |
| 5 | 219800164 | Pad Kit (4 Pads) |
| 7 | 207506034 | HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 9 | 293650256 | Clamp This part replaces 705600459. |
| 10 | 207652034 | HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership |
| 11 | 233251434 | Flange Elastic Nut M5 |
| 12 | 414920600 | Washer |
| 13 | 414920500 | Banjo Bolt |
| 15a | 293650256 | Clamp This part replaces 705600459. |
| 15b | 705600854 | Hose Clip |
| 16 | 705600435 | FRONT BRAKE DISC - Call your local BRP dealership |
| 17 | 705600722 | Tandem Cylinder Master |
| 18 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 19 | 705600468 | Piston Rod |
| 20 | 232081414 | Hex. Nut M8 |
| 21 | 705600100 | Yoke |
| 22 | 250400062 | Pin This part replaces 250400056. |
| 23 | 705600716 | Bellow |
| 24 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 25 | 705600920 | BRAKE PEDAL - Call your local BRP dealership |
| 26 | 705004933 | Rubber Pad |
| 27 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 28 | 705600458 | Bearing |
| 29 | 705600541 | Bushing |
| 30 | 503183800 | Washer |
| 31 | 705601163 | TAB LOCK - Call your local BRP dealership This part replaces 705600842. |
| 32 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 33 | 708000759 | Rubber Stopper |
| 34 | 705600843 | TUBE SUPPORT - Call your local BRP dealership |
| 35 | 705600507 | Clip |
| 36 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 37 | 705600721 | FRONT TANDEM RIGID TUBE - Call your local BRP dealership This part replaces 705601074. |
| 38 | 705600742 | REAR TANDEM RIGID TUBE - Call your local BRP dealership This part replaces 705601075. |
| 39 | 414920600 | Washer |
| 40 | 414920500 | Banjo Bolt |
| 41 | 705600834 | REAR RIGID TUBE - Call your local BRP dealership This part replaces 705601076. |
| 42 | 705600855 | Rocker Arm |
| 43 | 705600458 | Bearing |
| 44 | 705600541 | Bushing |
| 45 | 503183800 | Washer |
| 46 | 207206534 | Hex. Screw M10 X 65, Scotch Grip |
| 48 | 219800058 | Cap And Diaphragm Kit |
| 49 | 515176508 | Oil Level Sensor |
| 50 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 51 | 224061121 | Flat Washer |
| 52 | 219704417 | HOSE 8MM 3000MM LONG - Call your local BRP dealership |
| 53 | 293650047 | Crimp Clamp, 15.3-706R |
| 54 | 705600502 | Bleeder Screw |
| 55 | 705600554 | BLEEDER CAP - Call your local BRP dealership |
| 56 | 707000927 | Parking Brake Cable |
| 57a | 415052400 | Bracket |
| 57b | 207662034 | Hex. Flange Screw M6 X 20 |
| 58 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 59 | 414115200 | Tie-Rap 180 mm |
| 60 | 219704354 | Trim 1000Mm Long |
| 61 | 705600959 | Connecting Rod |
| 62 | 250400062 | Pin This part replaces 250400056. |
| 64 | 705600458 | Bearing |
| 65 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 66 | 293900087 | Bushing |
