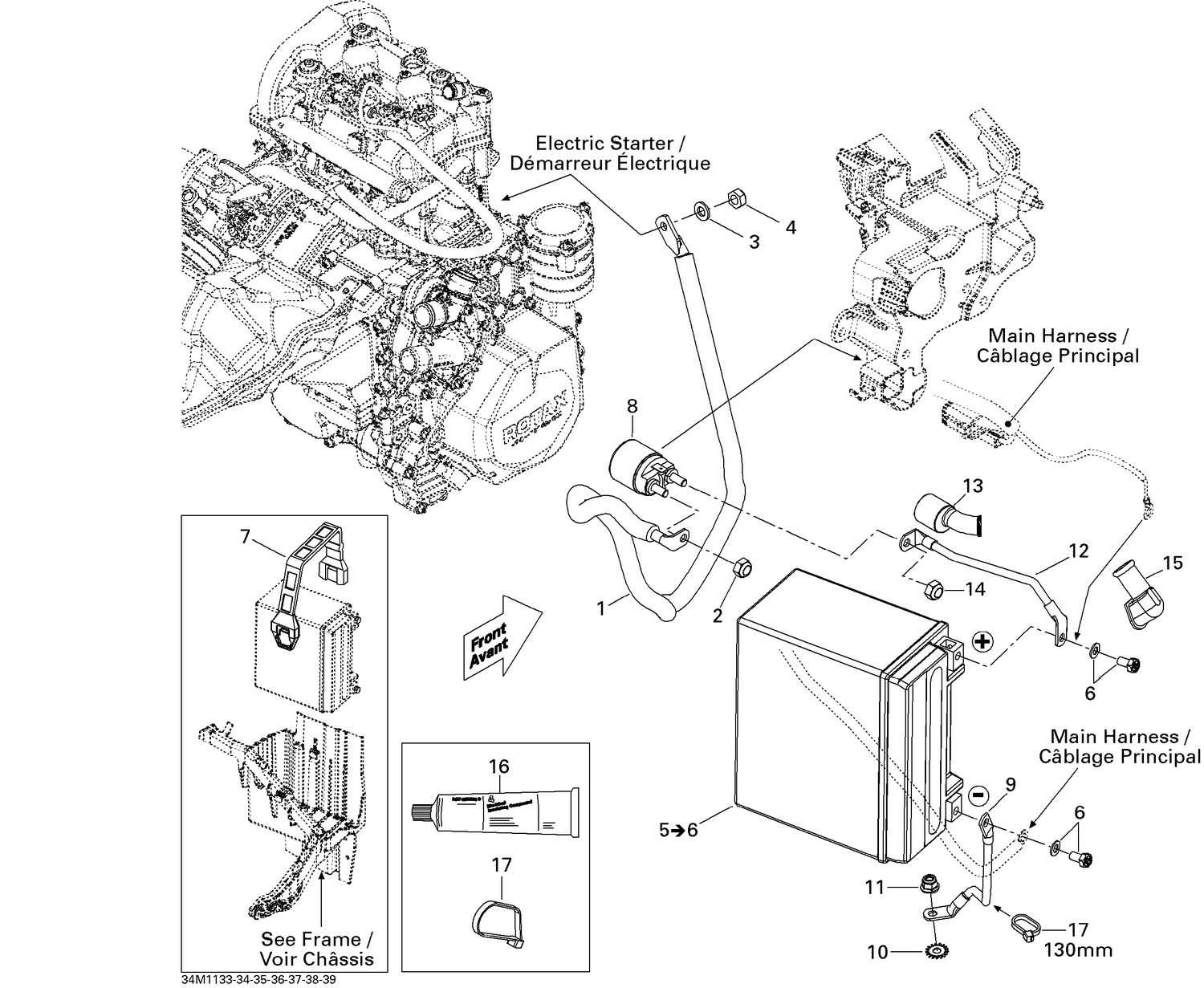

10- Battery And Starter
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176966 | BATTERY WIRE - Call your local BRP dealership |
| 2 | 232561414 | Elastic Stop Nut M6 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 6 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 7 | 515176944 | Strap |
| 8 | 515176942 | STARTER RELAY - Call your local BRP dealership |
| 9 | 515176943 | Ground Wire |
| 10 | 250200041 | Lock Washer Serrated M6 |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 515177007 | BATTERY WIRE - Call your local BRP dealership |
| 13 | 515175919 | Protector Cap |
| 14 | 232561414 | Elastic Stop Nut M6 |
| 15 | 710000495 | Protector Cap |
| 16 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 17 | 293750001 | Tie Wrap 94 mm |
| 17 | 293750002 | Tie Wrap 142 mm |
| 17 | 293750009 | Tie-Rap 173 mm |
| 17 | 414115200 | Tie-Rap 180 mm |
