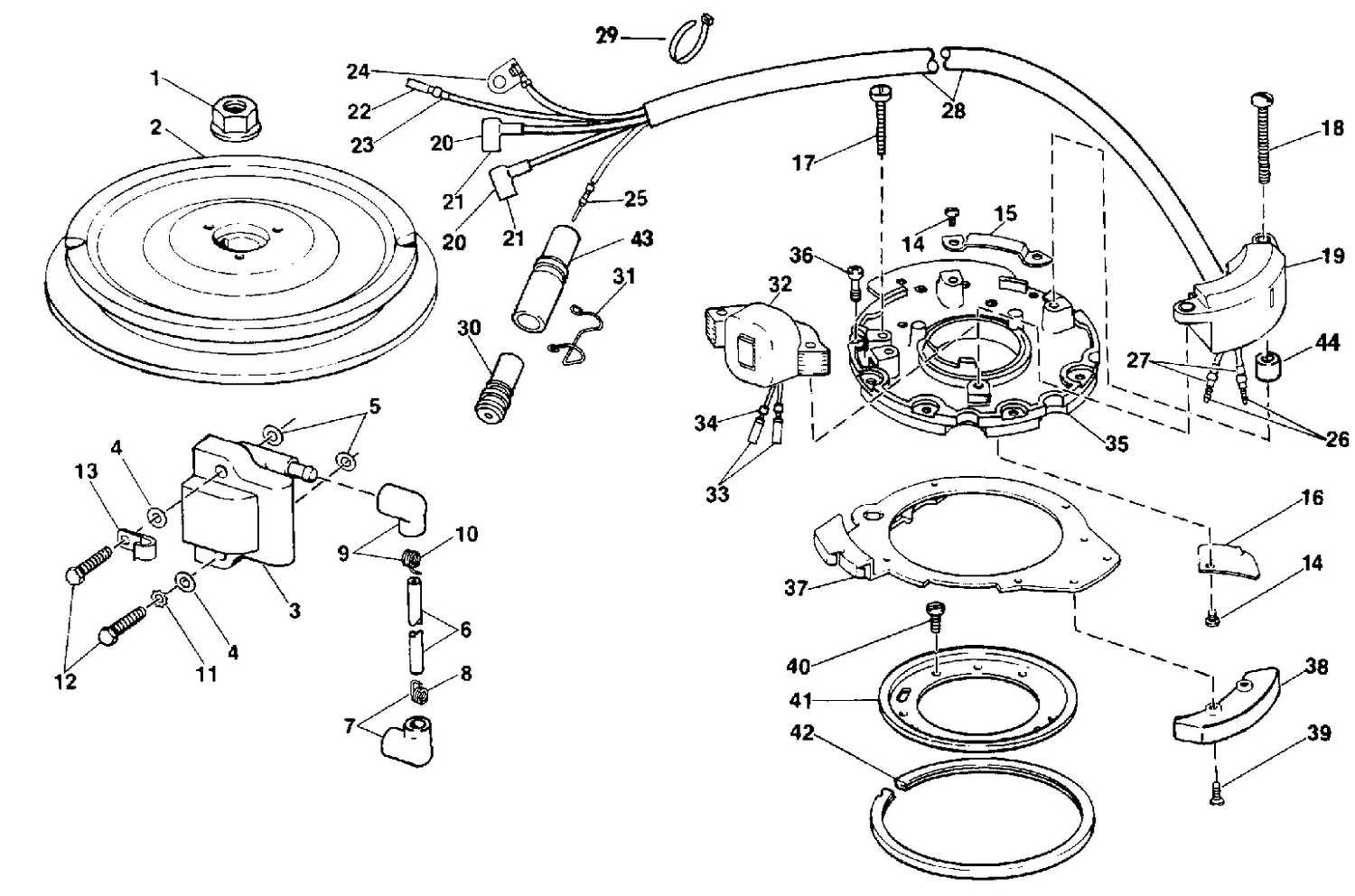

| Ref | Part Number | Description |
|---|
| 2 |
0583917 |
FLYWHEEL ASSEMBLY |
| 3 |
0582508 |
COIL ASSY |
| 5 |
0329176 |
FIBER WASHER, Ignition coil |
| 6 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 13 |
0330151 |
CLAMP, Harness to oil tank boss |
| 14 |
0303212 |
VIS, collier & capot |
| 15 |
0511458 |
COLLIER, fils |
| 16 |
0511459 |
CACHE, fils |
| 18 |
0513057 |
SCREW |
| 19 |
0584489 |
IGNITION MODULE This part replaces 0583896. |
| 28 |
0513354 |
TUBING, Power pack leads |
| 31 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 32 |
0584333 |
CHARGE COIL & LAM. ASSY. This part replaces 0583485. |
| 35 |
0583285 |
PLAT & SLEEVE ASSY. |
| 36 |
0511460 |
VIS, dispositif de retenue |
| 37 |
0396031 |
RETAINER & LINK ASSEMBLY |
| 38 |
0323876 |
CAM, Throttle control |
| 38 |
0334750 |
CAM, Throttle control |
| 39 |
0331036 |
VIS, attache de palier |
| 40 |
0331036 |
VIS, attache de palier |
| 41 |
0322102 |
PLATE, Support |
| 42 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
