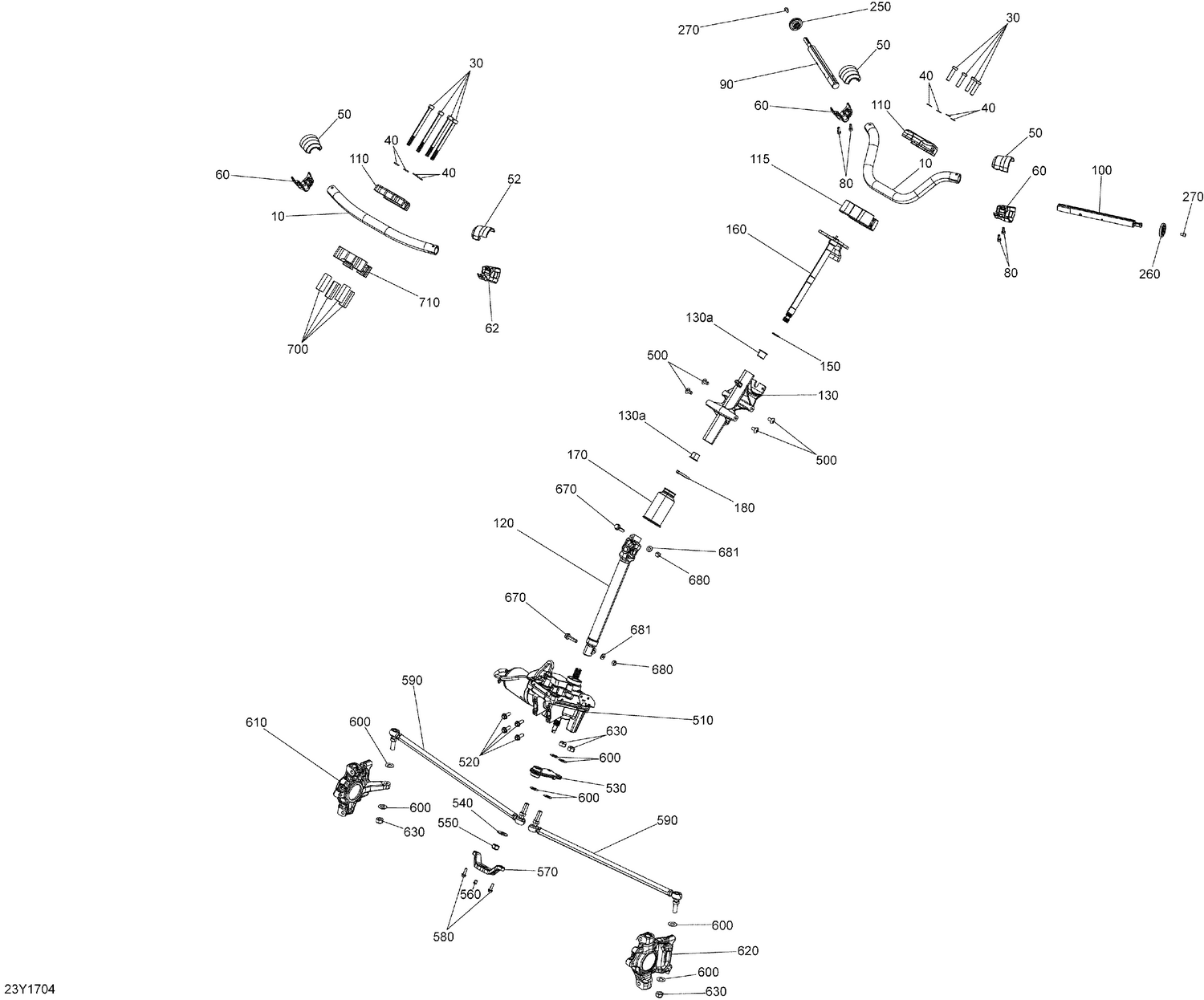

07- Steering - All Models
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 90 | 709401939 | RH Handlebar Tube |
| 100 | 709401952 | LH HandleBar Tube |
| 115 | 709401906 | Black, Central Handle Support |
| 130a | 709402725 | Steering Bushing This part replaces 415108000. |
| 150 | 709000089 | O-Ring |
| 160 | 709401397 | Upper Steering Column |
| 170 | 709400790 | Bellows |
| 180 | 414115200 | Tie-Rap 180 mm |
| 250 | 709401800 | Handlebar End-Piece RH |
| 260 | 709400793 | Handlebar End Piece LH |
| 270 | 205061054 | Screw-Socket Hd.Din.912 |
| 500 | 250000751 | Torx Screw M8 X 16 |
| 520 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 590 | 709401820 | Tie Rod Ass'y |
| 600 | 706200281 | Hardened Washer This part replaces 250200086. |
| 610 | 709401864 | RH Knuckle |
| 620 | 709401865 | LH Knuckle |
| 630 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 670 | 250001021 | Hex. Flange Screw M8 X 35 This part replaces 207583587. |
| 680 | 232081417 | Hex. Nut M8 |
| 681 | 503189157 | Washer |
