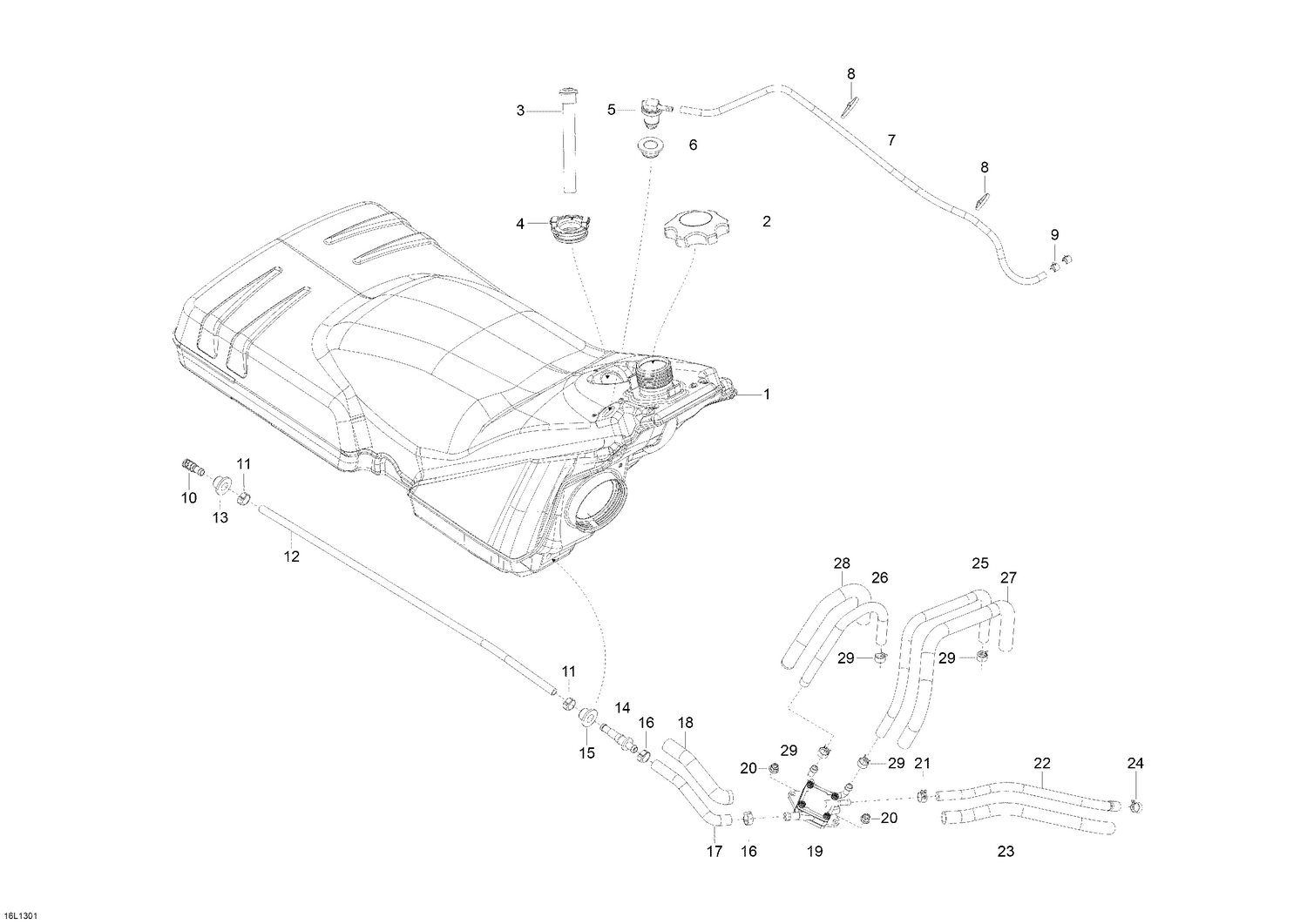

02- Fuel System
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033632 | FUEL TANK - Call your local BRP dealership |
| 2 | 513033025 | Fuel Tank Cap |
| 3 | 513033538 | Fuel Sensor |
| 4 | 293720058 | Grommet |
| 5 | 513033842 | Check Valve This part replaces 513033188. |
| 6 | 513033596 | Grommet |
| 7 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 414227300 | Clip |
| 10 | 414872100 | Fuel Filter |
| 11 | 513033010 | Crimp Clamp |
| 12 | 219704391 | POLYURETHANE HOSE 1000MM LONG This part replaces 513033332. |
| 13 | 280000674 | Grommet This part replaces 28037. |
| 14 | 414872700 | Male Connector |
| 15 | 513033435 | Grommet |
| 16 | 293650053 | Crimp Clamp |
| 17 | 513033626 | Formed Hose |
| 18 | 415080000 | Tubing 16mm |
| 19 | 403901813 | Fuel Pump |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 21 | 414415200 | Universal Spring Clamp |
| 22 | 513033553 | Formed Hose |
| 23 | 415080000 | Tubing 16mm |
| 24 | 513033029 | Spring Clamp |
| 25 | 415129492 | Hose |
| 26 | 415129492 | Hose |
| 27 | 415080000 | Tubing 16mm |
| 28 | 415080000 | Tubing 16mm |
