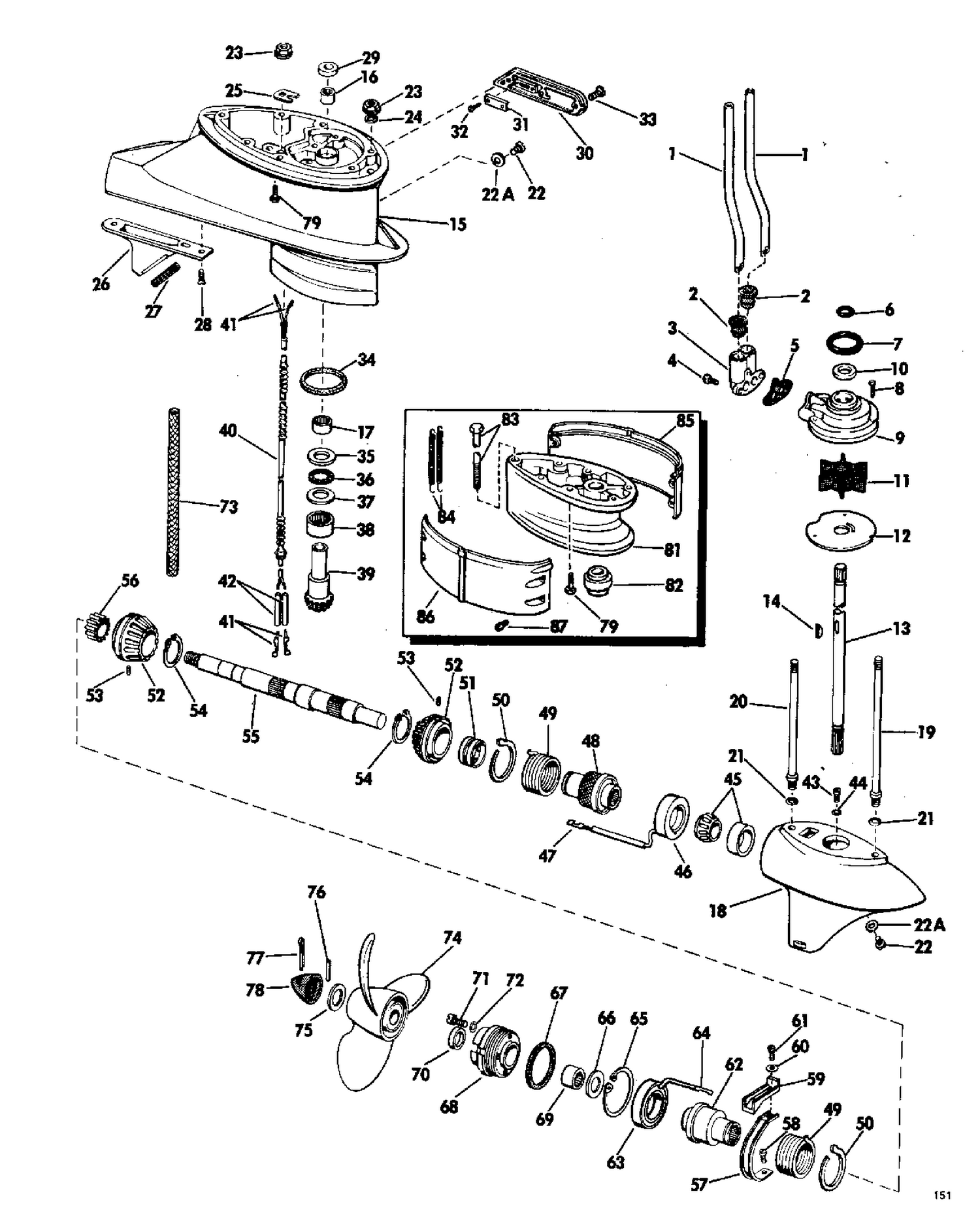

| Ref | Part Number | Description |
|---|
| 1 |
0305492 |
TUBE, Water, in |
| 1 |
0305493 |
TUBE WATER, Long, out 5 INCH LONGER PARTS |
| 2 |
0304026 |
GROMMET |
| 3 |
0307954 |
CAP, Impeller housing |
| 4 |
0300258 |
SCREW, Bracket |
| 5 |
0312614 |
GASKET, Impeller cap |
| 7 |
0202591 |
O RING |
| 8 |
0303714 |
SCREW |
| 9 |
0381576 |
IMPELLER HOUSING ASSY |
| 10 |
0321459 |
OIL RETAINER, Housing This part replaces 0305306. |
| 11 |
0377230 |
IMPEELER ASSEMBLY |
| 12 |
0312613 |
PLATE, Impeller housing |
| 13 |
0379875 |
DRIVE SHAFT ASSEMBLY STANDARD |
| 13 |
0379876 |
DRIVE SHAFT ASSY 5 INCH LONGER PARTS |
| 30 |
0308340 |
COVER |
| 31 |
0305451 |
SCREEN |
| 32 |
0305452 |
SCREEN |
| 34 |
0307103 |
SEAL |
| 35 |
0304795 |
PINION WASHER, Upper |
| 36 |
0376857 |
BEARING, Thrust |
| 37 |
0304796 |
PINION WASHER , Lower |
| 38 |
0378264 |
BEARING, Pinion |
| 39 |
0308254 |
PINION |
| 40 |
0383595 |
CABEL ASSY. |
| 44 |
0308279 |
WASHER |
| 45 |
0375761 |
BEARING, Roller |
| 46 |
0378553 |
COIL, Housing & lead assy., front |
| 48 |
0378519 |
CLUTCH HUB ASSEMBLY-FRONT |
| 49 |
0311030 |
SPRING |
| 50 |
0309042 |
SPACER |
| 51 |
0308276 |
BUSHING |
| 52 |
0308343 |
GEAR |
| 53 |
0308215 |
SCREW, Set |
| 54 |
0308213 |
RETAINING RING |
| 55 |
0378542 |
SHAFT, Propeller |
| 56 |
0378970 |
BEARING, Reverse gear |
| 57 |
0308273 |
GUARD |
| 58 |
0308275 |
SCREW |
| 59 |
0308726 |
RETAINER |
| 60 |
0308730 |
WASHER |
| 61 |
0308727 |
SCREW |
| 62 |
0378625 |
CLUTCH HUB ASSY-REAR |
| 63 |
0378665 |
COIL & RETAINER ASSY. REAR |
| 65 |
0307080 |
RETAINING RING |
| 66 |
0308216 |
THRUST WASHER |
| 67 |
0307082 |
O RING |
| 68 |
0378526 |
GEARCASE HEAD BEARING & SEAl ASSY. |
| 71 |
0308211 |
SCREW |
| 72 |
0307853 |
O RING |
| 73 |
0309807 |
SLEEVE |
| 73 |
0309808 |
SLEEVE, Long 5 INCH LONGER PARTS |
| 74 |
0378571 |
PROPELLER, 10-3/8 x 14 |
| 74 |
0380637 |
PROPELLER 10-1 2 X 12 |
| 74 |
0384460 |
PROPELLER, 10-1 2 x 13 This part replaces 0378579. |
| 74 |
0385955 |
PROPELLER, 10-3/4 x 11 This part replaces 0378581. |
| 75 |
0304576 |
THRUST WASHER |
| 76 |
0304575 |
DRIVE PIN, Propeller |
| 78 |
0305294 |
NUT, Propeller |
| 79 |
0308429 |
SCREW |
| 81 |
0308334 |
EXTENSION 5 INCH LONGER PARTS |
| 82 |
0305571 |
ADAPATER 5 INCH LONGER PARTS |
| 84 |
0305642 |
SPIRNG, Reverse lock 5 INCH LONGER PARTS |
| 85 |
0309038 |
EXTENSION, Exh cover port 5 INCH LONGER PARTS |
| 86 |
0309039 |
EXTENSION, Eshaust cover, starboard 5 INCH LONGER PARTS |
| 0378944 |
0378944 |
GEARCASE ASSY., Less driveshaft and pump |
| 0378994 |
0378994 |
GEARCAASE ASSY |
| 0379877 |
0379877 |
EXTENSION KIT ASSY 5 INCH LONGER PARTS |
