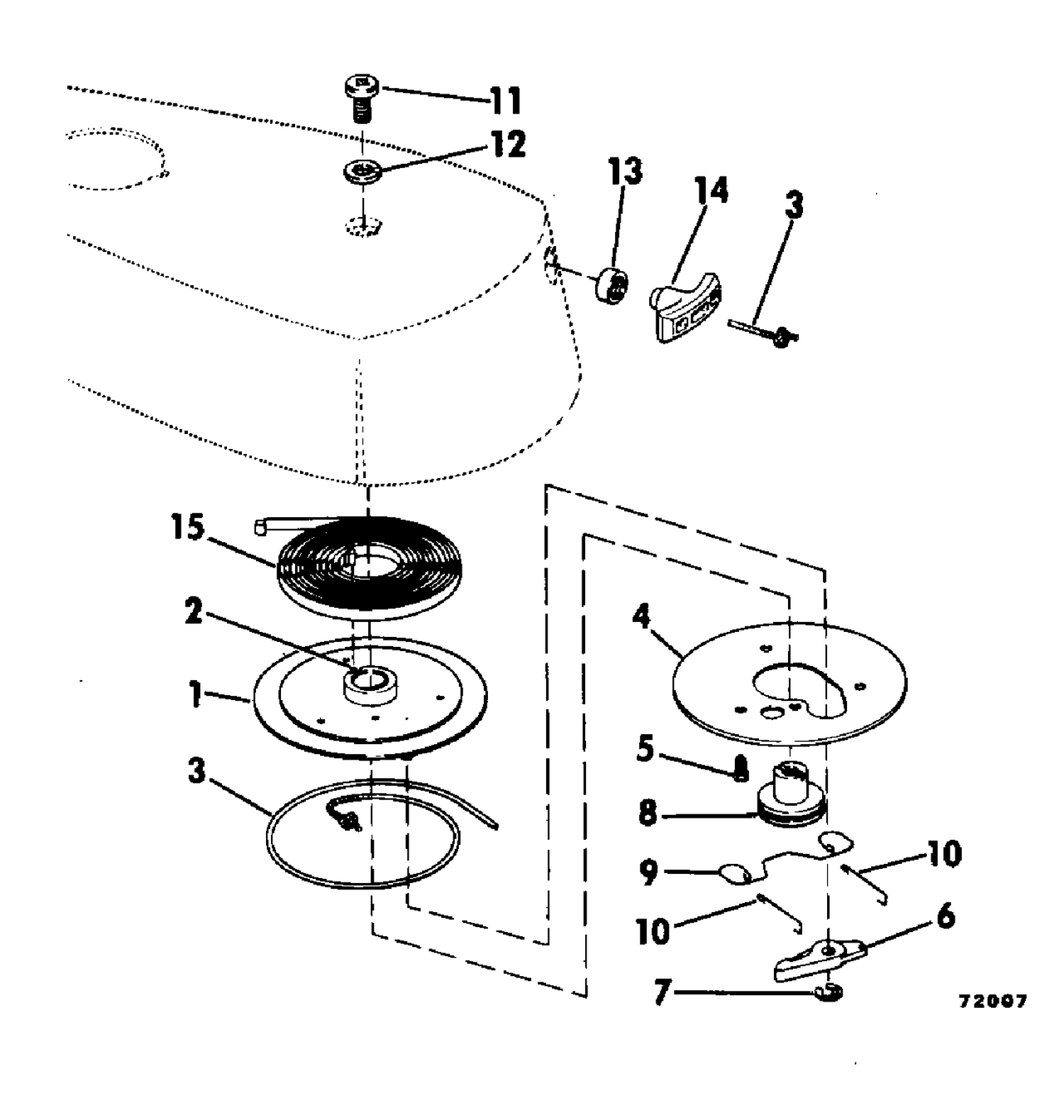

REWIND STARTER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0384443 | PULLEY & PIN |
| 3 | ROPE | Ref: 4 0316371 PLATE, Pulley 0316371 |
| 5 | 0602821 | SCREW, Plate to pulley |
| 6 | 0203698 | PAWL, Starter |
| 8 | 0316373 | SPINDLE |
| 9 | 0316372 | FRICTIN SPRING |
| 10 | 0203700 | LINK SPRING TO PAWL |
| 11 | 0316374 | SCREW, Spindle to hsg |
| 12 | 0306799 | L'WASHER,Bracket to hsg. |
| 13 | 0311371 | BUMPER |
| 14 | 0324513 | HANDLE |
| 0384788 | 0384788 | REWIND STARTER ASSSY |
