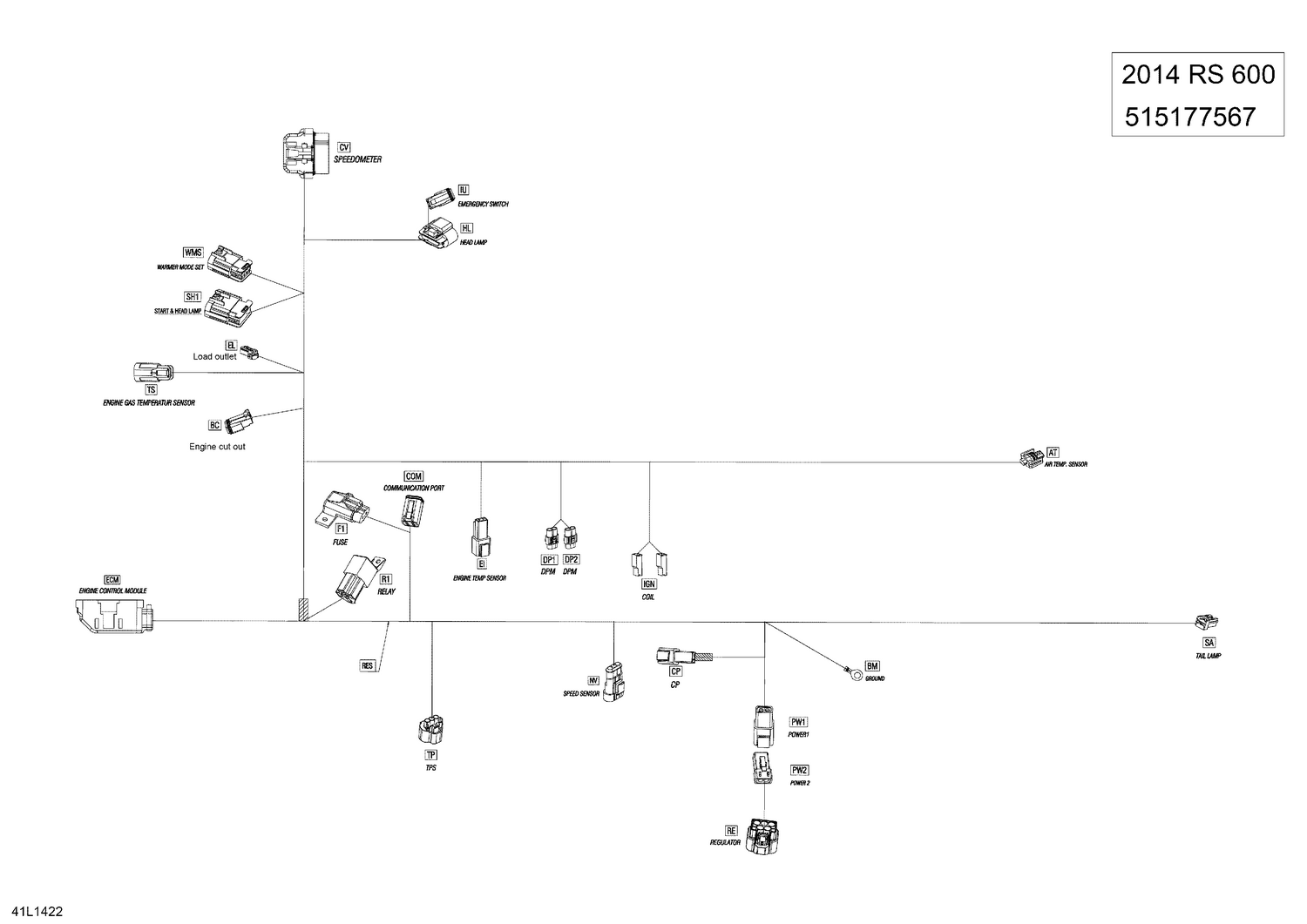

10- Electrical Harness
Parts (89)
| Ref | Part Number | Description |
|---|---|---|
| AT | 515176890 | Female Terminal Housing |
| AT | 710001163 | Wire Seal |
| AT | 710001164 | Female Terminal |
| BC | 278000632 | TERMINAL F |
| BC | 515175670 | HOUSING F |
| BC | 515175675 | LOCK F |
| BM | 278000992 | TERMINAL |
| COM | 278001665 | TERMINAL F |
| COM | 278002896 | HOUSING F |
| COM | 293000052 | Sealing Cap |
| COM | 515175678 | LOCK F |
| CP | 278000631 | TERMINAL M |
| CP | 409207500 | LOCK M |
| CP | 515175665 | HOUSING M |
| CV | 515175801 | HOUSING F |
| CV | 515175802 | LOCK F |
| CV | 515175803 | SEALS |
| CV | 515175806 | TERMINAL F |
| CV | 515175812 | PLUG |
| CV | 710000399 | RETAINER F |
| CV | 710001131 | TERMINAL F |
| DP1 | 409012100 | TERMINAL F |
| DP1 | 409012300 | SEAL |
| DP1 | 409209200 | HOUSING F |
| DP2 | 409012100 | TERMINAL F |
| DP2 | 409012300 | SEAL |
| DP2 | 409209200 | HOUSING F |
| ECM | 414115200 | Tie-Rap 180 mm |
| ECM | 515175806 | TERMINAL F |
| ECM | 515175812 | PLUG |
| ECM | 515176221 | RETAINER |
| ECM | 515176222 | SEALS |
| ECM | 515176223 | HOUSING F |
| ECM | 515176224 | LOCK |
| ECM | 710001131 | TERMINAL F |
| EI | 278000631 | TERMINAL M |
| EI | 409207500 | LOCK M |
| EI | 515175665 | HOUSING M |
| EL | 515175231 | Female Terminal |
| EL | 515175658 | Female Housing, 2 Circuits |
| F1 | 278000805 | FOAM |
| F1 | 278001325 | Fuse Holder |
| F1 | 278001326 | COVER |
| F1 | 409003900 | FUSE |
| F1 | 710000113 | TERMINAL F |
| HL | 515177296 | HOUSING F |
| HL | 710001228 | Terminal |
| HL | 710001332 | Seal Wire |
| IGN | 409010100 | TERMINAL F |
| IGN | 409010400 | HOUSING F |
| IU | 278000632 | TERMINAL F |
| IU | 515175670 | HOUSING F |
| IU | 515175675 | LOCK F |
| NV | 515176164 | TERMINAL M |
| NV | 515176621 | SEAL |
| NV | 710000568 | Male terminal housing |
| NV | 710000992 | Clip |
| PW1 | 278001672 | LOCK M |
| PW1 | 278001674 | HOUSING M |
| PW1 | 515175568 | TERMINAL M |
| PW2 | 278001671 | LOCK F |
| PW2 | 278001673 | HOUSING F |
| PW2 | 515175567 | TERMINAL F |
| R1 | 293750002 | Tie-Rap 142 mm |
| R1 | 409209900 | HOUSING F |
| R1 | 516503100 | TERMINAL F |
| R1 | 561503100 | FEMALE TERMINAL - Call your local BRP dealership |
| R1 | 710010053 | RELAY This part replaces 515177041. |
| RE | 515176530 | HOUSING F |
| RE | 515176531 | TERMINAL F |
| RE | 515176594 | SEAL |
| RES | 710002674 | RESISTOR |
| SA | 515175231 | Female Terminal |
| SA | 515175495 | HOUSING F |
| SH1 | 710001223 | TERMINAL M |
| SH1 | 710001224 | Terminal |
| SH1 | 710001225 | PLUG |
| SH1 | 710001233 | Seal |
| SH1 | 710001332 | Seal Wire |
| SH1 | 710001929 | HOUSING M |
| TP | 515176176 | HOUSING F |
| TP | 710000335 | TERMINAL F |
| TP | 710000402 | SEAL |
| TS | 515177298 | HOUSING M |
| TS | 710001224 | Terminal |
| TS | 710001233 | Seal |
| WMS | 710001225 | PLUG |
| WMS | 710001233 | Seal |
| WMS | 710001927 | HOUSING M |
