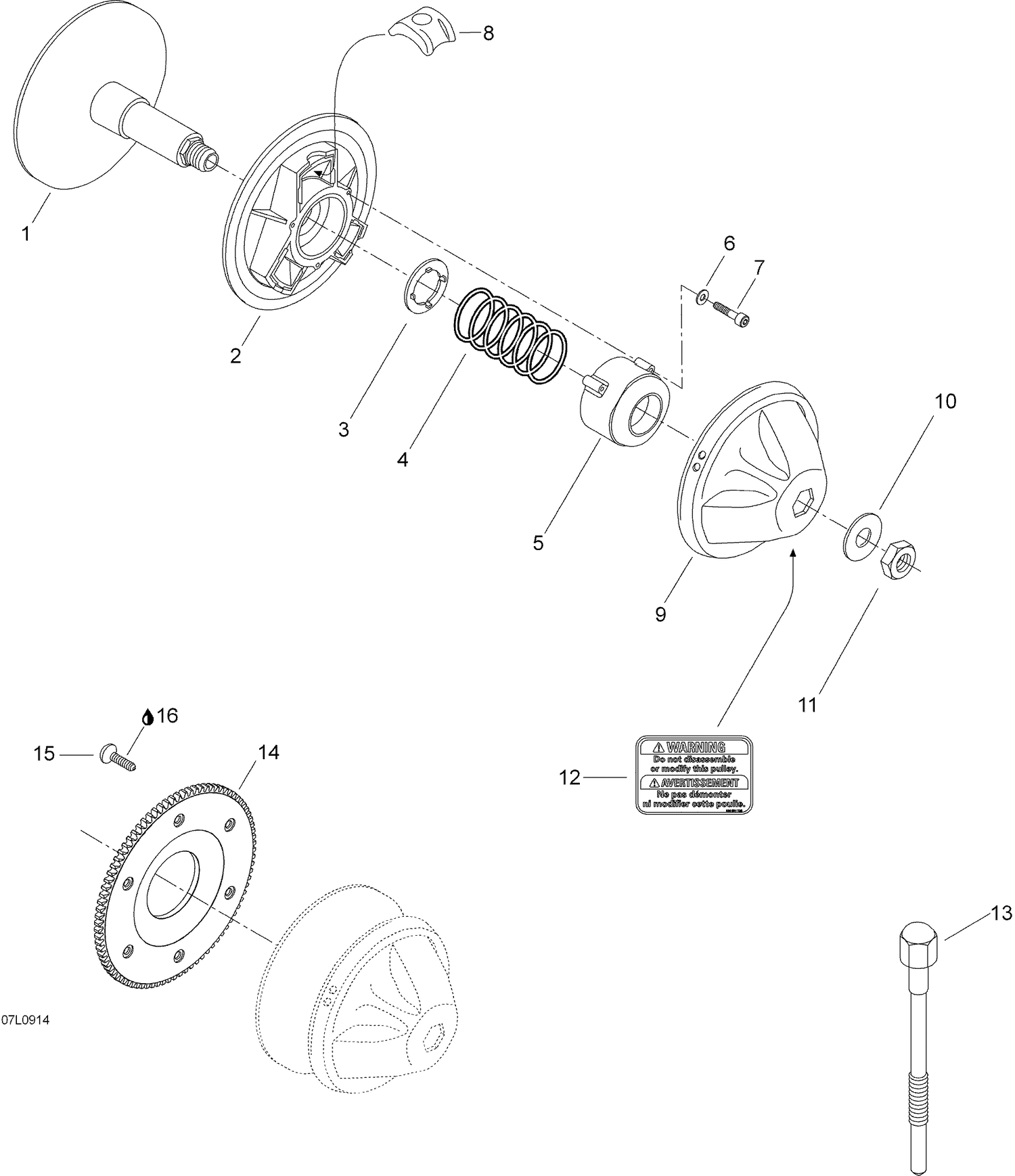

| Ref | Part Number | Description |
|---|
| 1 |
415128975 |
INNER FLANGE - Call your local BRP dealership |
| 2 |
417126692 |
SLIDING FLANGE - Call your local BRP dealership |
| 3 |
417126694 |
SPRING SEAT - Call your local BRP dealership |
| 4 |
415015300 |
Spring, (violet/yellow) |
| 5 |
415128602 |
SPRING COVER - Call your local BRP dealership |
| 6 |
420245370 |
WASHER - Call your local BRP dealership |
| 7 |
415128606 |
SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership |
| 8 |
415129125 |
UNIT - Call your local BRP dealership |
| 9 |
415128609 |
Domed cup |
| 10 |
415128610 |
WASHER - Call your local BRP dealership |
| 11 |
417118300 |
NUT - Call your local BRP dealership |
| 12 |
516001726 |
Security label |
| 13 |
529031400 |
Puller inner half |
| 14 |
417222833 |
Ring gear |
| 15 |
236281684 |
Hex. Screw M8 X 16 |
