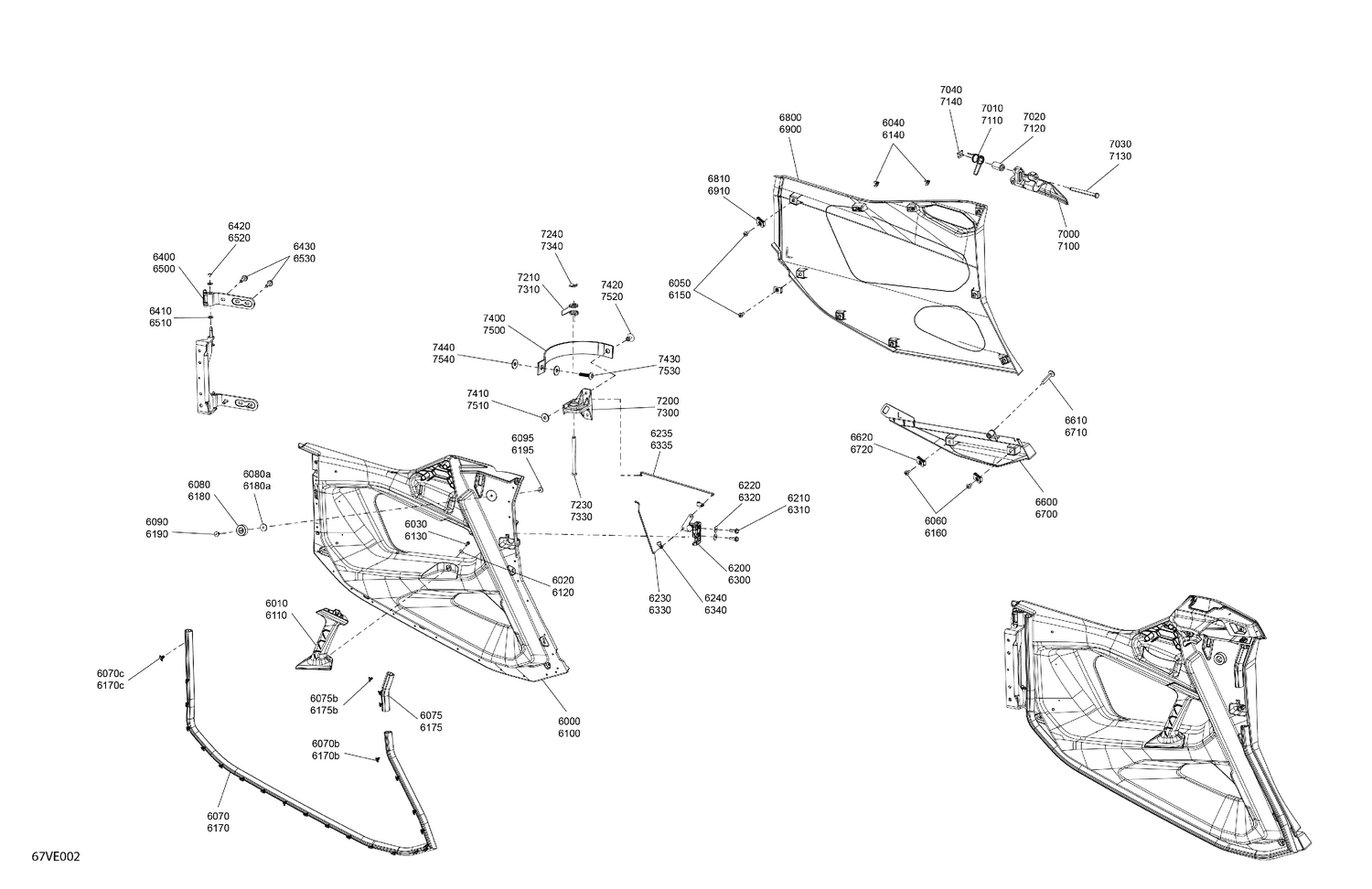

| Ref | Part Number | Description |
|---|
| 6000 |
715010390 |
LH Rear Door Ass'y |
| 6010 |
705016582 |
LH Interior Door Handle |
| 6020 |
234062670 |
Stainless Steel Flat Washer |
| 6030 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 6040 |
517306478 |
Clip |
| 6050 |
250000722 |
Torx Screw M6 X 20 |
| 6060 |
250000722 |
Torx Screw M6 X 20 |
| 6070b |
293730081 |
Natural Color, Dart |
| 6070c |
293730082 |
Red, Dart |
| 6075b |
293730081 |
Natural Color, Dart |
| 6080a |
224060251 |
Washer |
| 6090 |
293150306 |
Black, Ornit Rivet 3/16 X ,800 |
| 6095 |
250200025 |
Washer M5 |
| 6100 |
715010391 |
RH Rear Door Ass'y |
| 6110 |
705016583 |
RH Interior Door Handle |
| 6120 |
234062670 |
Stainless Steel Flat Washer |
| 6130 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 6140 |
517306478 |
Clip |
| 6150 |
250000722 |
Torx Screw M6 X 20 |
| 6160 |
250000722 |
Torx Screw M6 X 20 |
| 6170b |
293730081 |
Natural Color, Dart |
| 6170c |
293730082 |
Red, Dart |
| 6175b |
293730081 |
Natural Color, Dart |
| 6180a |
224060251 |
Washer |
| 6190 |
293150306 |
Black, Ornit Rivet 3/16 X ,800 |
| 6195 |
250200025 |
Washer M5 |
| 6200 |
705017780 |
LH Door Latch |
| 6210 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 6220 |
234062670 |
Stainless Steel Flat Washer |
| 6230 |
705017723 |
LH Latch Rod |
| 6235 |
705017784 |
LH Latch Rod |
| 6240 |
708300182 |
LH Tie Rod Clip |
| 6300 |
705017781 |
RH Door Latch |
| 6310 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 6320 |
234062670 |
Stainless Steel Flat Washer |
| 6330 |
705017724 |
RH Latch Rod |
| 6335 |
705020377 |
RH Latch Rod This part replaces 705017785. |
| 6340 |
708300202 |
RH Tie Rod Clip |
| 6400 |
705017757 |
Female Door Hinge |
| 6410 |
234081100 |
Flat Washer 8 mm, Nylon |
| 6420 |
705601030 |
Circlip |
| 6430 |
250001016 |
Hex Flange Screw M8 X 25 S.Grip |
| 6500 |
705017757 |
Female Door Hinge |
| 6510 |
234081100 |
Flat Washer 8 mm, Nylon |
| 6520 |
705601030 |
Circlip |
| 6530 |
250001016 |
Hex Flange Screw M8 X 25 S.Grip |
| 6600 |
705017650 |
LH Lower Door Panel |
| 6610 |
250001110 |
Torx Screw K50 X 25 |
| 6620 |
250100208 |
Panel Nut M6 X 1.0 |
| 6700 |
705017651 |
RH Lower Door Panel |
| 6710 |
250001110 |
Torx Screw K50 X 25 |
| 6720 |
250100208 |
Panel Nut M6 X 1.0 |
| 6800 |
705018834 |
Dusty Navy, LH Rear Door Panel |
| 6810 |
250100208 |
Panel Nut M6 X 1.0 |
| 6900 |
705018835 |
Dusty Navy, RH Rear Door Panel |
| 6910 |
250100208 |
Panel Nut M6 X 1.0 |
| 7000 |
705017721 |
LH Exterior Door Handle |
| 7010 |
705013062 |
Handle Spring |
| 7020 |
293900165 |
Spacer |
| 7030 |
705211172 |
Pin |
| 7040 |
705601875 |
External Retaining Ring |
| 7100 |
705017722 |
RH Exterior Door Handle |
| 7110 |
705013062 |
Handle Spring |
| 7120 |
293900165 |
Spacer |
| 7130 |
705211172 |
Pin |
| 7140 |
705601875 |
External Retaining Ring |
| 7200 |
705017810 |
Lever |
| 7210 |
705013062 |
Handle Spring |
| 7230 |
705211172 |
Pin |
| 7240 |
705601875 |
External Retaining Ring |
| 7300 |
705017810 |
Lever |
| 7310 |
705013062 |
Handle Spring |
| 7330 |
705211172 |
Pin |
| 7340 |
705601875 |
External Retaining Ring |
| 7400 |
293850147 |
Belt |
| 7410 |
250200025 |
Washer M5 |
| 7420 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 7430 |
250000980 |
Hex. Screw Pt K60 X 25 |
| 7440 |
234062670 |
Stainless Steel Flat Washer |
| 7500 |
293850147 |
Belt |
| 7510 |
250200025 |
Washer M5 |
| 7520 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 7530 |
250000980 |
Hex. Screw Pt K60 X 25 |
