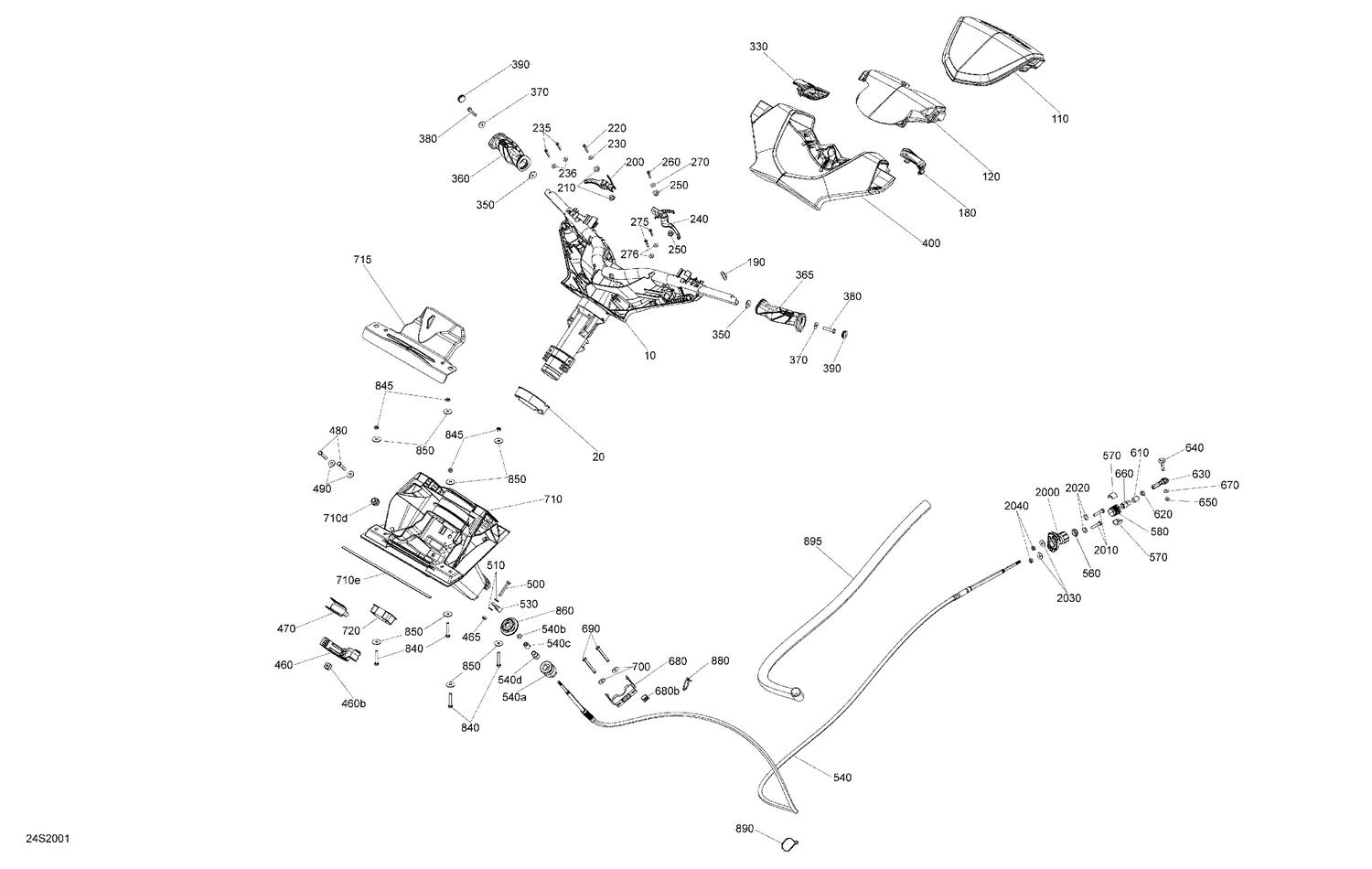

07- Steering
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 277001963 | Steering Column |
| 20 | 277001653 | Wear Ring |
| 110 | 277002096 | Trim Steering Column Manta Green |
| 120 | 277001921 | Handlebar Foam |
| 180 | 277001860 | Housing Cover LH |
| 190 | 277001887 | Red, Knob Switch |
| 200 | 277002138 | Hand Lever Accelerator |
| 210 | 293900091 | Bushing |
| 220 | 241142560 | Hex. Flange Screw K40 X 25 |
| 230 | 234042600 | Flat Washer 4 mm, Stainless |
| 235 | 241142560 | Hex. Flange Screw K40 X 25 |
| 236 | 234042600 | Flat Washer 4 mm, Stainless |
| 330 | 277001755 | Housing Cover RH |
| 350 | 277001863 | Insert Grip Handle |
| 360 | 277002101 | RH Handlebar Grip |
| 365 | 277002102 | LH Handlebar Grip |
| 370 | 234062600 | Flat Washer M6, Stainless |
| 380 | 250000002 | Hex. Screw M6 X 30, Scotch Grip |
| 390 | 277000203 | Black, Cap |
| 460b | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 465 | 232561200 | Brass Elastic Stop Nut M6 |
| 470 | 277001654 | Spacer |
| 480 | 207163560 | Hex. Screw M6 X 35 |
| 490 | 234062600 | Flat Washer M6, Stainless |
| 500 | 207064060 | Hex. Screw M6 X 40 |
| 510 | 234061600 | Stainless Flat Washer M6 |
| 530 | 277001180 | Ball Joint |
| 540a | 277000782 | Ajustment Knob |
| 540b | 211100056 | Hex. Nut 1/4"-28 |
| 540c | 277001582 | Wiper Rod |
| 540d | 277001583 | End Piece |
| 560 | 293830063 | Rubber Washer |
| 570 | 277001527 | Half Ring |
| 580 | 277001729 | Steering Cable Lock |
| 610 | 277001582 | Wiper Rod |
| 620 | 211100056 | Hex. Nut 1/4"-28 |
| 630 | 277000775 | Ball Joint |
| 640 | 250000970 | Hex Sems Screw M6X35 |
| 650 | 232561200 | Brass Elastic Stop Nut M6 |
| 660 | 277001583 | End Piece |
| 670 | 234061600 | Stainless Flat Washer M6 |
| 680 | 277001655 | Thrust Support Ass'y |
| 680b | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 690 | 207165060 | Hex. Screw M6 X 50 |
| 700 | 234062600 | Flat Washer M6, Stainless |
| 710d | 517302716 | Cap |
| 715 | 293000116 | Deflector |
| 720 | 277002318 | Wear Ring This part replaces 277001741. |
| 840 | 207164060 | Hex. Screw M6 X 40 |
| 845 | 232561200 | Brass Elastic Stop Nut M6 |
| 850 | 250200022 | Flat Washer M6.6 X 22 |
| 860 | 293720090 | Cable Grommet |
| 880 | 414115200 | Tie-Rap 180 mm |
| 890 | 293750008 | Tie Wrap 368 mm |
| 895 | 276000470 | Shield Corrugated 22MM - 1100MM |
| 2000 | 277001881 | Cable Adaptor Ass'y |
| 2010 | 207063060 | Hex. Screw M6 X 30 |
| 2020 | 250200114 | Sealing Washer |
| 2030 | 234062600 | Flat Washer M6, Stainless |
