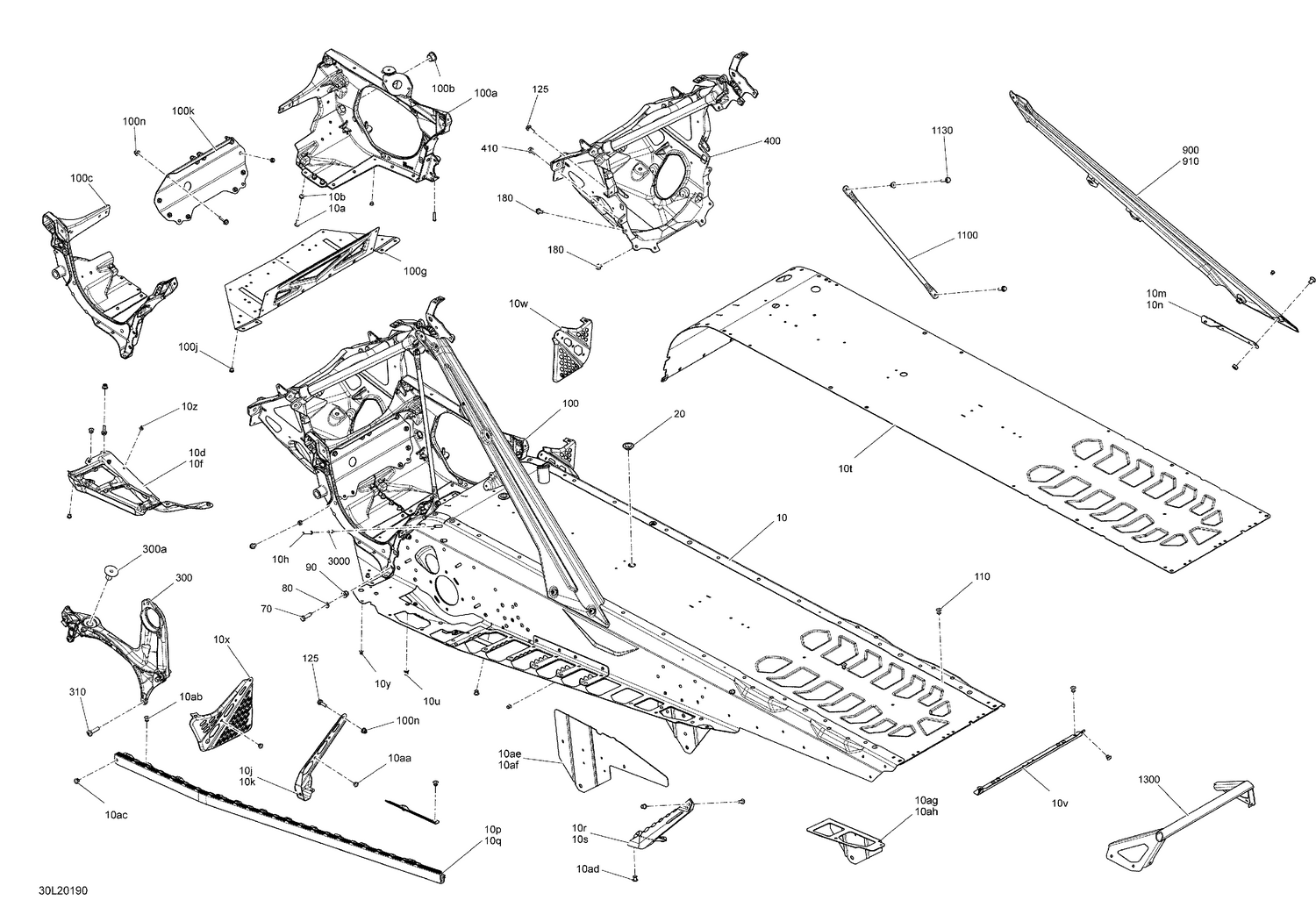

09- Frame - System - RE
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 10aa | 293150096 | Hemlock Rivet, 6.5 mm |
| 10ab | 293150119 | Hemlock Rivet, 6.5 mm |
| 10ac | 293150174 | Hemlock Rivet, 6.5 mm |
| 10ad | 293150266 | Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 10ae | 518329531 | Rear Arm Support Xtrim |
| 10af | 518329786 | Rear Arm Support Xtrim Rh |
| 10ag | 518329532 | Rear Support Xtrim Lh |
| 10ah | 518329533 | Rear Support Xtrim Rh |
| 10h | 250300031 | Clinch Stud M6 X 30 |
| 10j | 518329305 | RH Reinforcement Footrest |
| 10k | 518329306 | LH Reinforcement Footrest |
| 10m | 518330299 | LH Member Fixation Plate |
| 10n | 518331745 | RH Under Chassis Reinforcement This part replaces 518330300. |
| 10p | 518330080 | RH Roller |
| 10q | 518330079 | LH Roller |
| 10r | 518330161 | RH Roller Link |
| 10s | 518330160 | LH Roller Link |
| 10t | 518334488 | Radiator Tunnel 137 Ass'y This part replaces 415130286. |
| 10u | 605636003 | Clinch Nut M6 Hexsert |
| 10v | 518328990 | Rear Cap |
| 10w | 518328460 | Appui-Pied DR |
| 10x | 518333007 | LH Footrest This part replaces 518331556. |
| 10y | 390909100 | Avex Rivet |
| 10z | 390909200 | Avex Rivet |
| 20 | 293730052 | Black, Plug |
| 70 | 250000942 | Hex Screw M8 X 30 |
| 80 | 234081410 | Flat Washer 8 mm |
| 90 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100b | 505073317 | Leg Cushion |
| 100g | 518331661 | Bottom Plate This part replaces 518330074. |
| 100j | 293450268 | Insert M5 X 0.8 |
| 100k | 518330100 | Front Member |
| 100n | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 110 | 293150266 | Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 125 | 207662044 | Hex. Flange Screw M6 X 20 |
| 180 | 207661646 | Hex. Flange Screw M6 X 16 |
| 300a | 512061516 | Vibration Damper This part replaces 512060295. |
| 310 | 250001060 | Pan Screw HD.Torx M8X30 |
| 400 | 518334549 | Chassis Suspension Module Ass'y This part replaces 518330573. |
| 410 | 250001051 | Hex. Forming Screw HD.FL. M6 X 16 |
| 910 | 518331870 | Grey, RH Member |
| 920 | 250000887 | Pan Head Torx Screw M8 X 12 |
| 1100 | 518329974 | Upper Colomn Support |
| 1130 | 207662544 | Hex. Flange Screw M6 X 25 |
