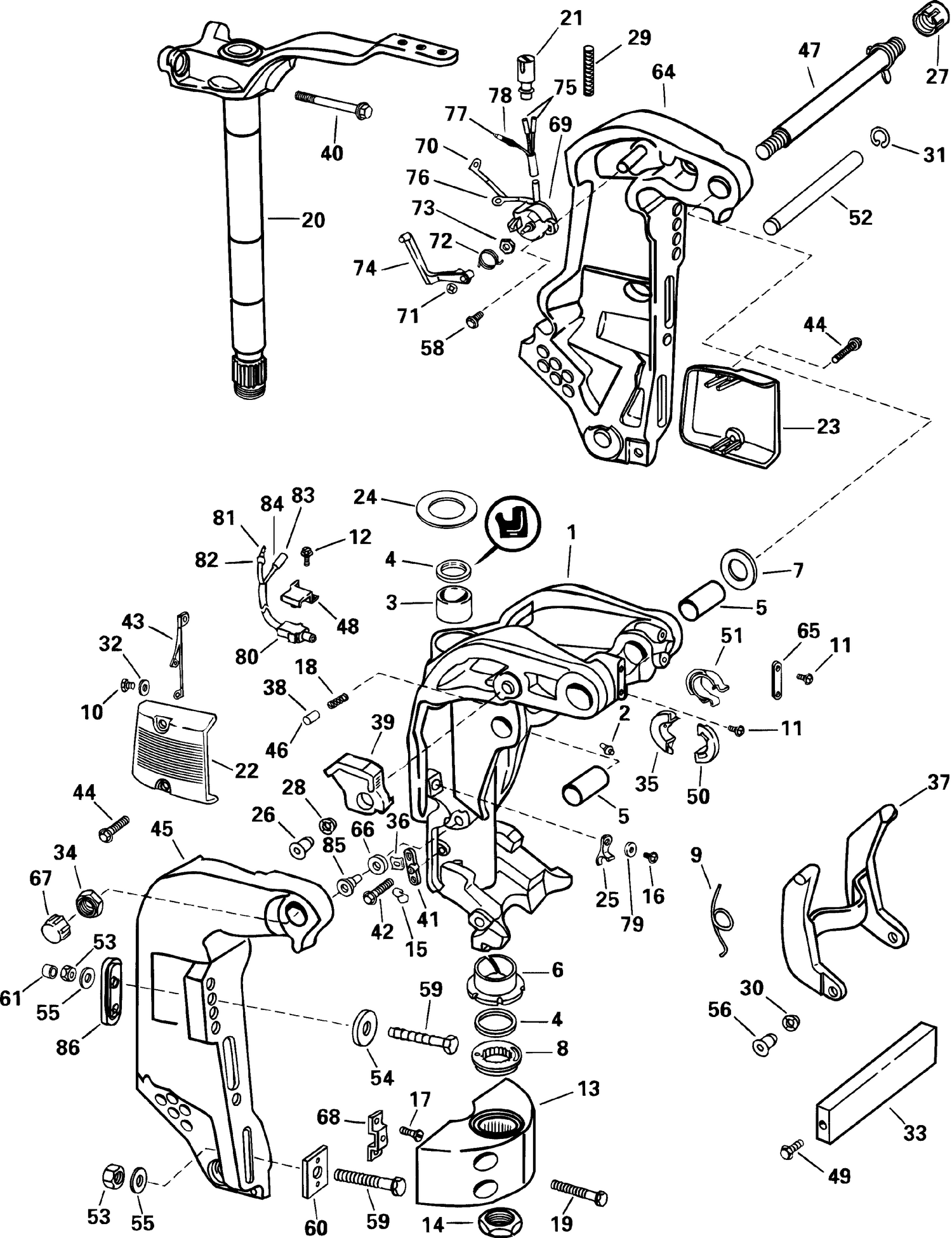

| Ref | Part Number | Description |
|---|
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0336210 |
RESSORT, verrouillage pour transport sur remorque vers support |
| 13 |
0340006 |
BRACKET, Mount |
| 14 |
0320746 |
CROU, support de montage |
| 15 |
0335814 |
DISPOSITIF DE RETENUE, ressort de verrouillage pour transport sur remorque |
| 17 |
0319886 |
SCREW |
| 18 |
0336230 |
RESSORT, dispositif de blocage, verrouillage de relevage |
| 19 |
0334936 |
SCREW, Mount |
| 22 |
0335474 |
CACHE, support arrière, tribord |
| 23 |
0335475 |
CACHE, support arrière, bâbord |
| 24 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 25 |
0336172 |
DISPOSITIF DE RETENUE, bras transport sur remorque |
| 26 |
0335481 |
SCREW, Tilt lever to bracket |
| 28 |
0335486 |
BAGUE, levier de relevage |
| 29 |
0513817 |
BRAIDED SLEEVE |
| 30 |
0335701 |
BUSHING, Trail arm |
| 31 |
0336529 |
ANNEAU DE RETENUE, tige de correction d'assiette |
| 33 |
5010190 |
ANODE KIT This part replaces 0433580. |
| 34 |
0335554 |
CROU, tube de relevage |
| 35 |
0337592 |
COLLAR, Cam, tilt limit switch |
| 36 |
0336853 |
ATTACHE, vis, dispositif de retenue |
| 37 |
0335470 |
ARM, Trail lock |
| 38 |
0334241 |
GUIDE |
| 39 |
0335485 |
LEVER, Tilt lock |
| 41 |
0336467 |
RETAINER, Support |
| 43 |
0584136 |
FIL, masse |
| 44 |
0337580 |
SCREW, Cover |
| 45 |
0351922 |
STERN BRACKET, Starboard This part replaces 0335489. |
| 46 |
0336209 |
BALL, Detent, tilt lock |
| 47 |
0435007 |
TILT TUBE Assembly |
| 48 |
0336171 |
BRACKET, Tilt limit switch |
| 49 |
0324816 |
SCREW, Anode |
| 50 |
0337593 |
COLLAR, Cam, tilt limit switch |
| 51 |
0337591 |
CAM, Tilt limit switch |
| 52 |
5009389 |
Kit This part replaces 0336525. |
| 53 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 54 |
0307238 |
RONDELLE |
| 55 |
0320248 |
RONDELLE, écrou |
| 56 |
0335487 |
SCREW, Thrust roller, swivel bracket |
| 59 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) This part replaces 0327053. |
| 59 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 59 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 59 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 60 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 61 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 62 |
0332697 |
RETAINER, Spring |
| 63 |
0332698 |
SPRING, Trail lock |
| 64 |
0351921 |
STERN BRACKET, Port This part replaces 0335416. |
| 65 |
0513787 |
DISPOSITIF DE RETENUE, interrupteur-limiteur de relevage |
| 66 |
0335949 |
ROULEAU DE BUTÉE |
| 67 |
0317894 |
CACHE, tube de relevage |
| 68 |
0318273 |
Bolt hex retainer 1/2 in. |
| 69 |
0433462 |
SENDING UNIT ASSY |
| 80 |
0585141 |
SWITCH ASSY., Tilt limit |
| 85 |
0335487 |
SCREW, Thrust roller, swivel bracket |
