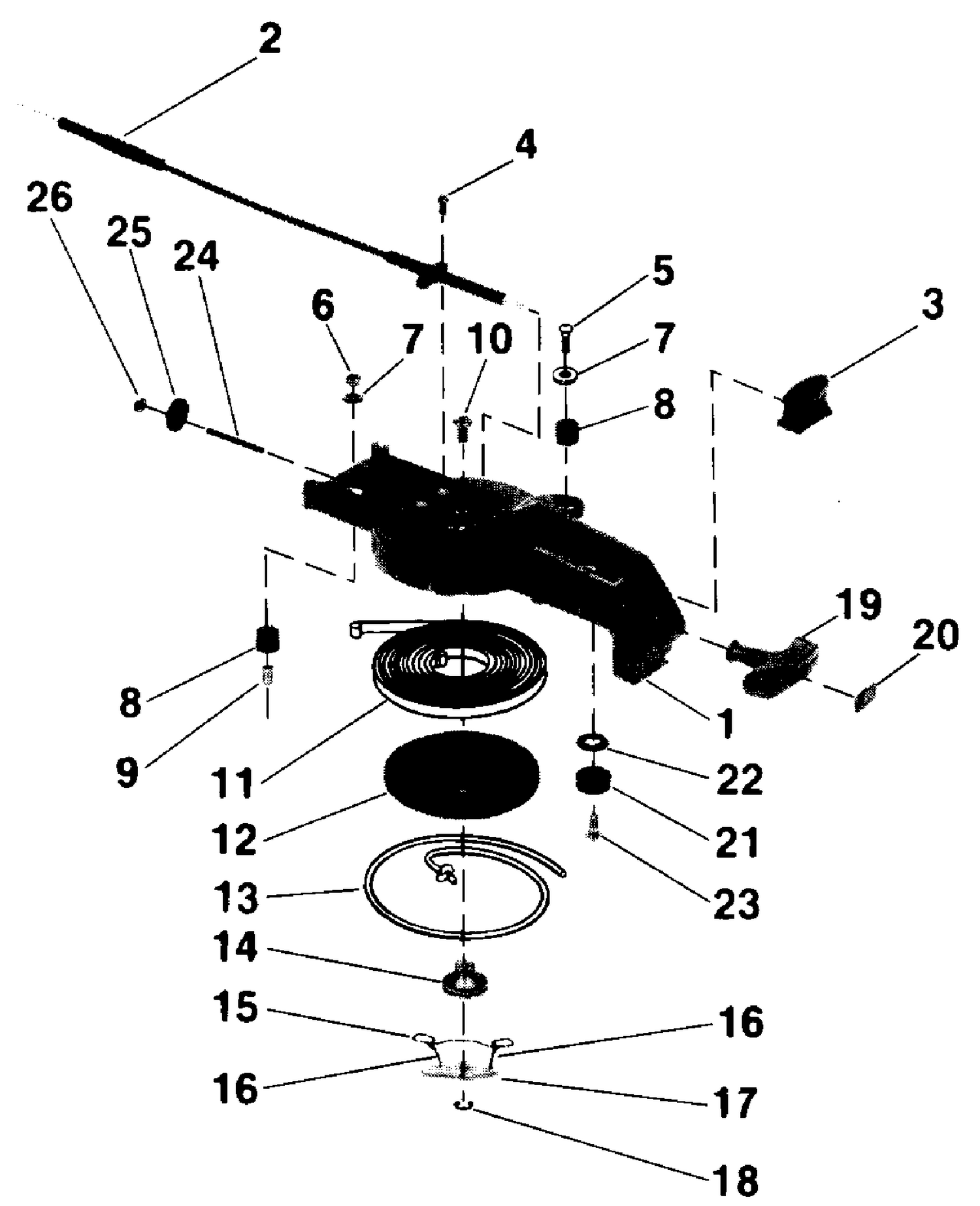

| Ref | Part Number | Description |
|---|
| 1 |
0397393 |
HOUSING & EYELET ASSY., Starter |
| 2 |
0396925 |
THROTTLE CABLE ASSY. |
| 3 |
0332016 |
KNOB, Throttle control |
| 4 |
0330975 |
SCREW, Bearing clamp |
| 9 |
0333041 |
SLEEVE, Starter hsg. mount |
| 10 |
0332056 |
SCREW, Spindle to starter hsg. |
| 11 |
0326877 |
SPRING, Starter |
| 12 |
0396854 |
PULLEY & PIN ASSY. |
| 14 |
0431968 |
SPINDLE & SCREW |
| 15 |
0331970 |
FRICTION SPRING |
| 16 |
0203700 |
LINK SPRING TO PAWL |
| 17 |
0203698 |
PAWL, Starter |
| 19 |
0331361 |
HANDLE |
| 21 |
0398611 |
PULLEY & O-RING ASSY., |
| 23 |
0332020 |
SCREW, Rope guide pulley |
| 24 |
0333163 |
SCREW, Idle adjusting |
| 25 |
0333164 |
NUT, Idle adjusting |
