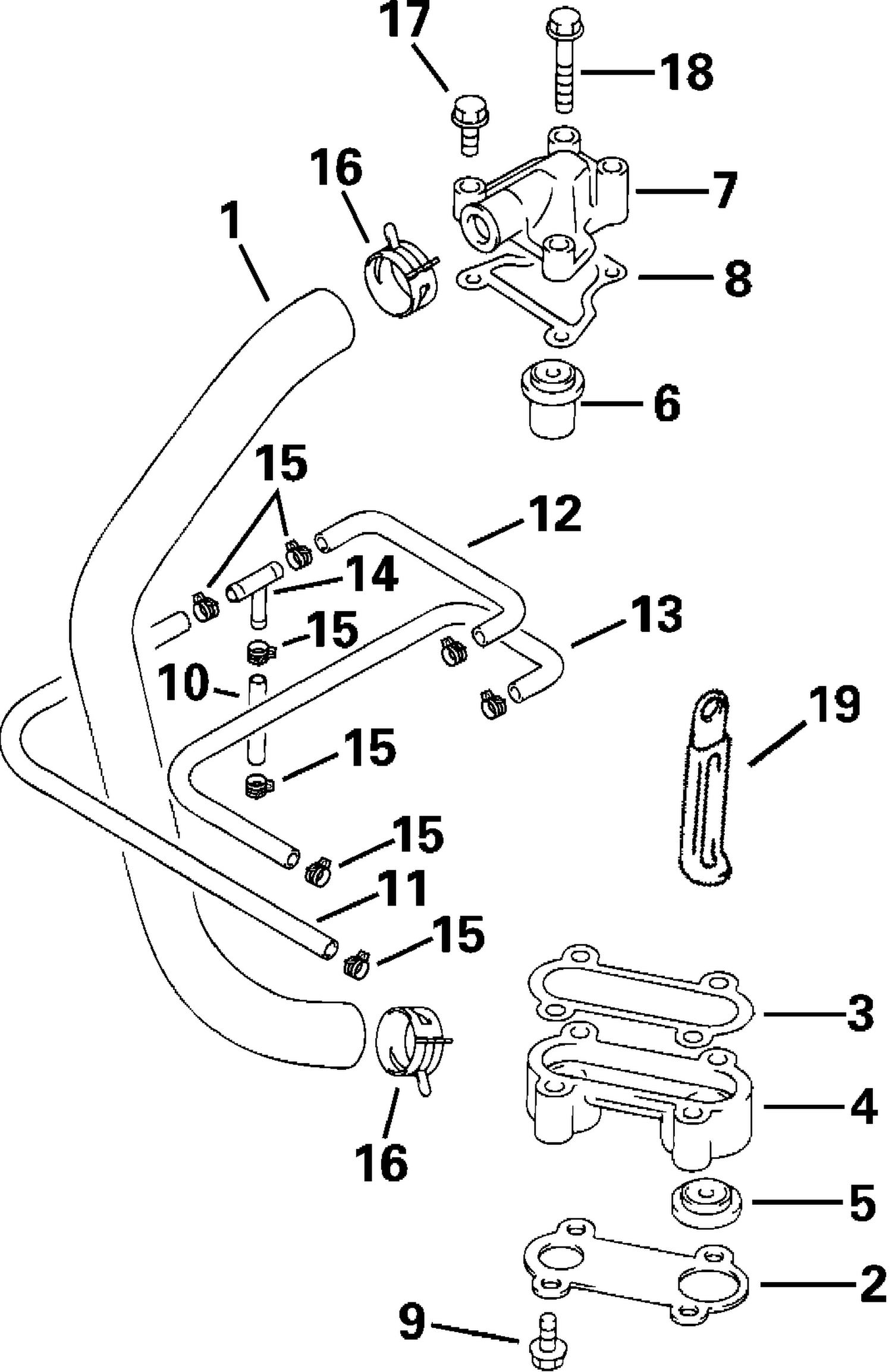

THERMOSTAT
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032241 | HOSE, Water return |
| 2 | 5031425 | COVER, WATER PRESS VALVE |
| 4 | 5031427 | CASE, WATER PRESS VALVE |
| 5 | 5032471 | VALVE, WATER PRESS |
| 6 | 5030742 | THERMOSTAT |
| 6 | 5031758 | THERMOSTAT (60 Deg C) |
| 6 | 5031762 | PIVOT, Throttle lever |
| 7 | 5036476 | Cover This part replaces 5031429. |
| 9 | 5031211 | BOLT (6X42mm) |
| 16 | 5030581 | CLAMP |
| 18 | 5031079 | BOLT |
