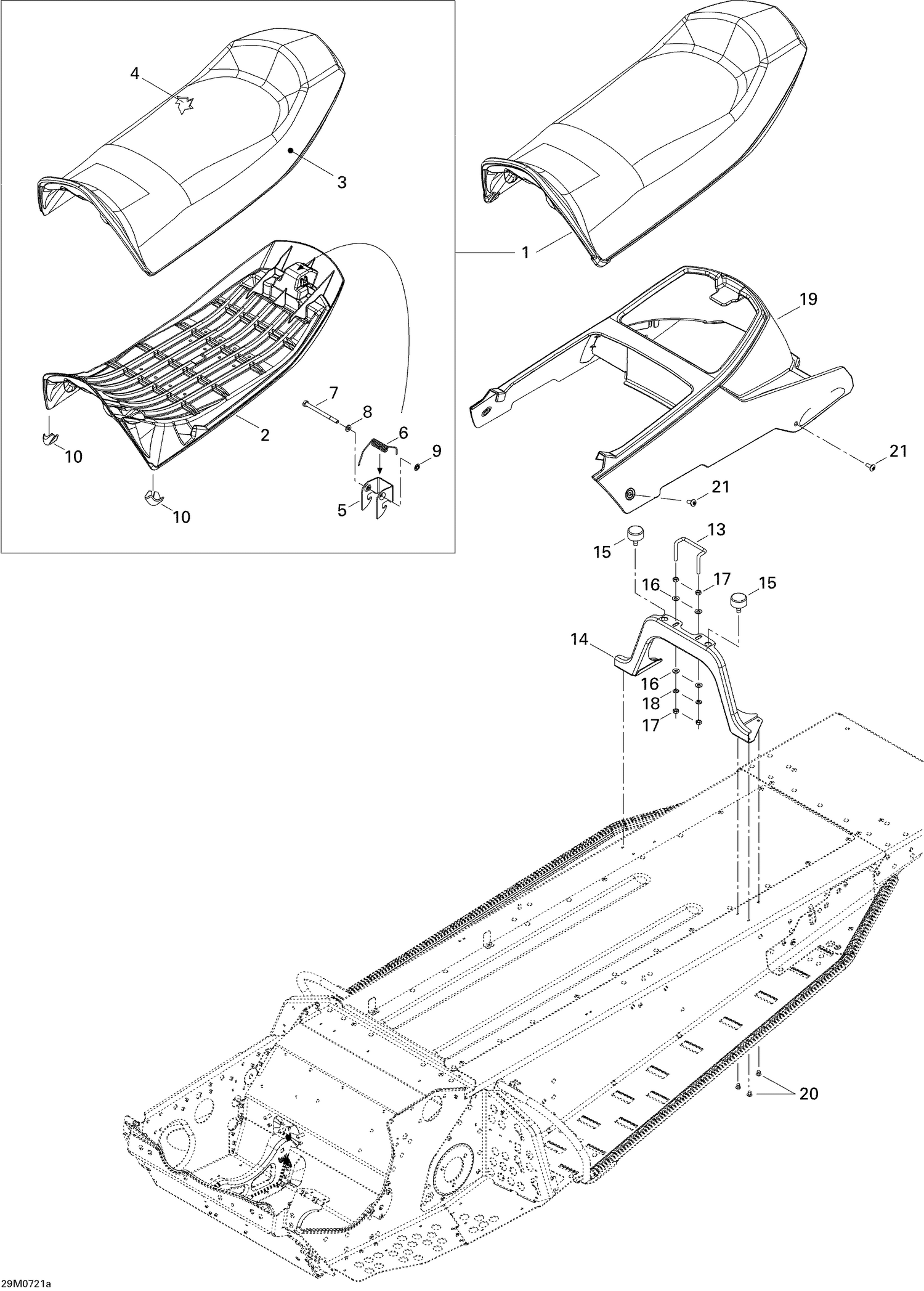

09- Seat 1
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | XXX | Not Available As Spare Parts |
| 2 | 510004487 | SEAT BASE - Call your local BRP dealership |
| 3 | 510004488 | SEAT COVER - Call your local BRP dealership |
| 4 | 510004489 | SEAT FOAM - Call your local BRP dealership |
| 5 | 708000144 | Latch, Black |
| 6 | 708000369 | Spring |
| 7 | 207068044 | Hex. Screw M6 X 80 |
| 8 | 234061410 | Flat Washer 6 mm |
| 9 | 732610072 | Push Nut |
| 10 | 510004606 | SEAT PROTECTOR, BLACK - Call your local BRP dealership |
| 13 | 510004608 | SEAT FASTENER PIN - Call your local BRP dealership |
| 14 | 510004602 | SEAT SUPPORT - Call your local BRP dealership |
| 15 | 708000758 | Rubber Stopper This part replaces 708000006. |
| 16 | 224061121 | Flat Washer |
| 17 | 232061414 | Hex. Nut M6 |
| 18 | 234161601 | Lock Washer Helical M6 |
| 19 | 510004490 | TRUNK - Call your local BRP dealership |
| 20 | 390909200 | Avex Rivet |
