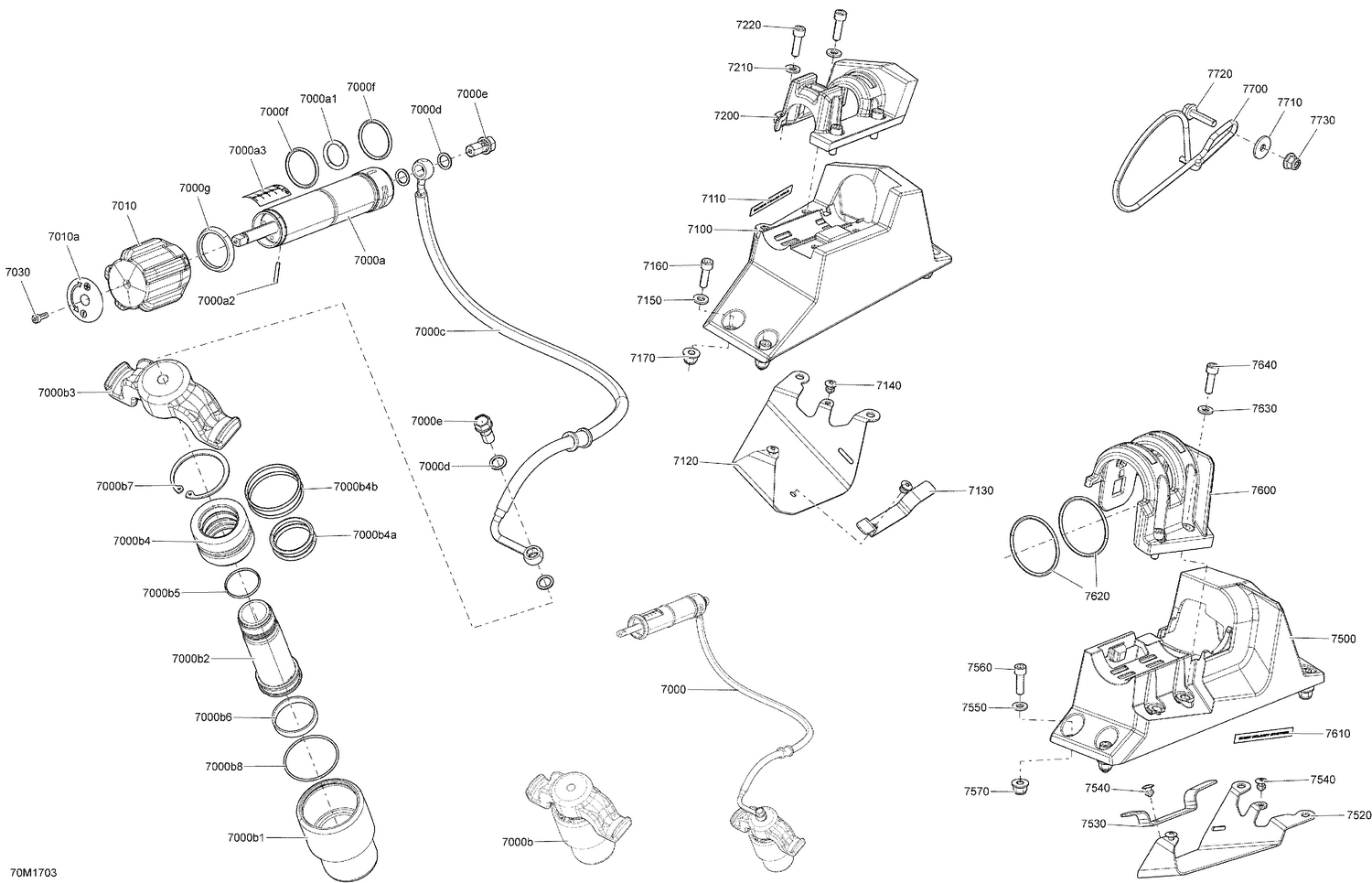

08- QAS - Quick Adjust Suspension
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 7000a1 | 293300036 | O-Ring |
| 7000a2 | 250400014 | Spring Pin |
| 7000a3 | 516004917 | Adjustment Decal |
| 7000b1 | 503192795 | Cylinder |
| 7000b2 | 503193779 | Piston |
| 7000b3 | 503192633 | Spring Bracket |
| 7000b4a | 293300068 | O-Ring |
| 7000b4b | 503192832 | O-Ring |
| 7000b5 | 293300039 | O-Ring |
| 7000b6 | 503192833 | Wear Ring |
| 7000b7 | 503192834 | Retaining Ring |
| 7000b8 | 503193014 | O-Ring |
| 7000c | 503193476 | Connector Hose |
| 7000d | 705601628 | Copper Washer This part replaces 705600310. |
| 7000e | 705600628 | Banjo Bolt |
| 7000f | 293250269 | O-Ring |
| 7000g | 503192825 | WIPER SEAL - Call your local BRP dealership |
| 7010a | 516004751 | STICKER KNOB ADJUSTER - Call your local BRP dealership |
| 7030 | 205541660 | Socket Screw M4 X 16 (Scotch Grip) |
| 7100 | 503194686 | LH Support This part replaces 503192811. |
| 7110 | 516006369 | Decal |
| 7120 | 503193437 | LH HOSE PROTECTOR - Call your local BRP dealership |
| 7130 | 503196020 | Retaining Plate This part replaces 503193413. |
| 7140 | 293150144 | Stavex Rivet |
| 7150 | 234061600 | Stainless Flat Washer M6 |
| 7160 | 205062060 | Socket Head Screw M6 X 20 |
| 7170 | 233261466 | Hex. Flange Elastic Nut M6 |
| 7200 | 503192956 | LH Half Housing |
| 7210 | 234061600 | Stainless Flat Washer M6 |
| 7220 | 205062060 | Socket Head Screw M6 X 20 |
| 7500 | 503192810 | RH Support |
| 7520 | 503193438 | RH HOSE PROTECTOR - Call your local BRP dealership |
| 7530 | 503196020 | Retaining Plate This part replaces 503193413. |
| 7540 | 293150144 | Stavex Rivet |
| 7550 | 234061600 | Stainless Flat Washer M6 |
| 7560 | 205062060 | Socket Head Screw M6 X 20 |
| 7570 | 233261466 | Hex. Flange Elastic Nut M6 |
| 7600 | 503192957 | RH Half-Housing |
| 7610 | 516006369 | Decal |
| 7620 | 293250085 | O-Ring |
| 7630 | 234061600 | Stainless Flat Washer M6 |
| 7640 | 205062060 | Socket Head Screw M6 X 20 |
| 7700 | 503194113 | Protector |
| 7710 | 224061201 | Flat Washer |
| 7720 | 207662556 | Hex. Flange Screw M6 X 25 |
