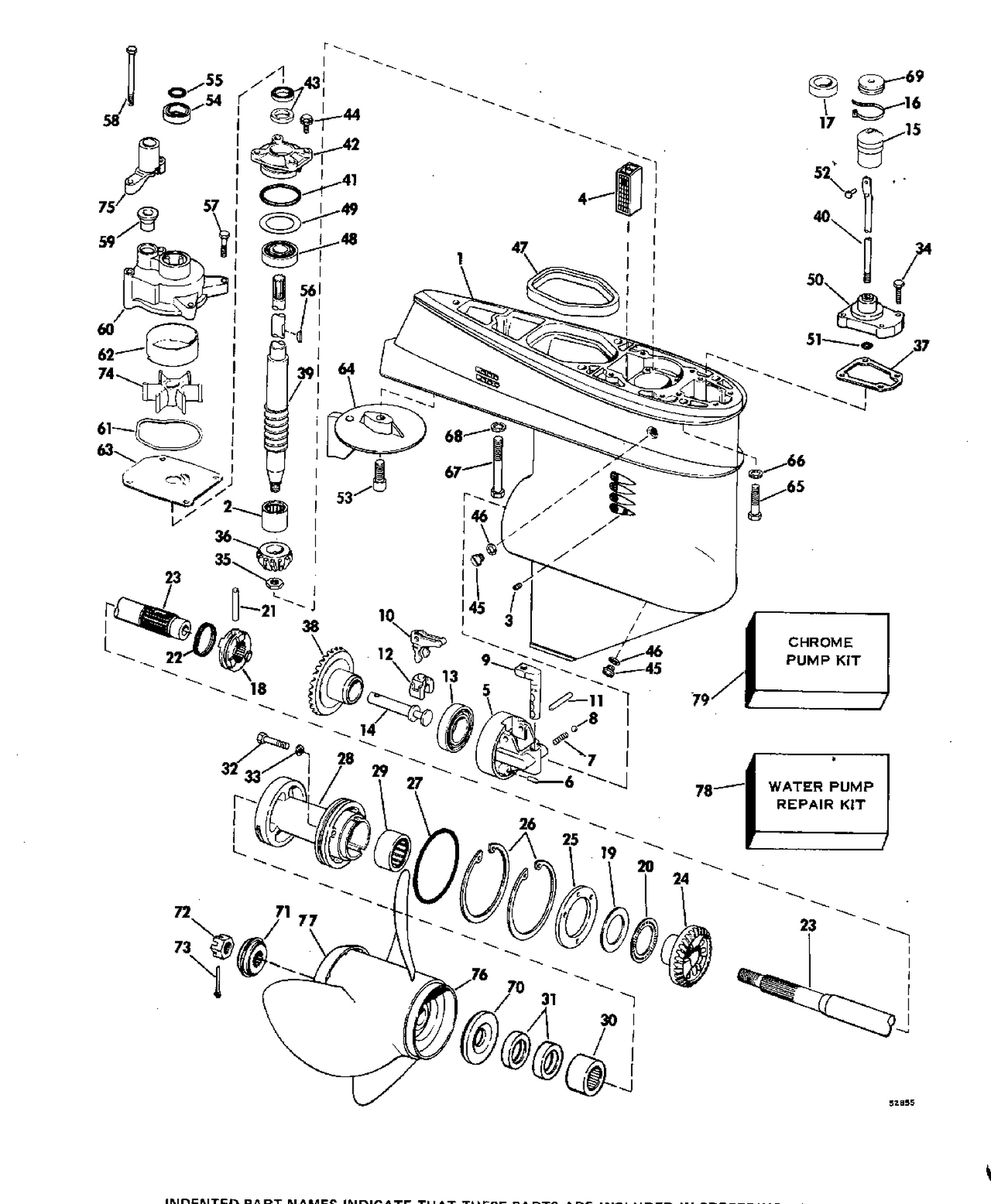

| Ref | Part Number | Description |
|---|
| 1 |
0392196 |
GEARCASE & BRG ASSY This part replaces 0386914. |
| 5 |
0387066 |
BEARING HOUSING & PIN |
| 9 |
0320171 |
DETENT, Shifter |
| 10 |
0320120 |
LEVER, Shifter |
| 13 |
3854249 |
BEARING, Driveshaft, lower This part replaces 0386768. |
| 14 |
0320172 |
SHAFT, Shifter |
| 16 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 18 |
0319895 |
SHIFT,Clutch dog |
| 19 |
0320115 |
THRUST WASHER |
| 20 |
0386719 |
THRUST BEARING, Rev gear |
| 23 |
0386659 |
PROPELLER SHAFT ASSY |
| 25 |
0320304 |
RETAINER PLATE, Brg hsg |
| 26 |
0320309 |
RETAINER RING |
| 27 |
0320303 |
O RING, Housing |
| 28 |
0386920 |
BEARING HOUSING ASSY |
| 33 |
0317178 |
O RING |
| 34 |
0307151 |
SCREW |
| 36 |
0391164 |
PINION ASSY This part replaces 0319767. |
| 38 |
0386563 |
GEAR ASSY, Forward |
| 39 |
0386769 |
DRIVESHAFT ASSY, Std |
| 39 |
0386771 |
DRIVESHAFT ASSY, Long |
| 42 |
0387067 |
BEARING HOUSING & SEAL ASSY |
| 44 |
0329894 |
SCREW This part replaces 0302510. |
| 48 |
0385175 |
CONE & GOLLER ASSY. |
| 49 |
0320165 |
SHIM, .002" |
| 49 |
0320166 |
SHIM, . 003" |
| 49 |
0320167 |
SHIM , . 004" |
| 49 |
0320168 |
SHIM, . 005" |
| 49 |
0320169 |
SHIM , . 006" |
| 49 |
0320170 |
SHIM , . 007" |
| 52 |
0388676 |
PIN, Shaft lever to shift rod This part replaces 0318583. |
| 53 |
0320040 |
SCREW, Trim tab std. models |
| 57 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0316357. |
| 59 |
0315837 |
GROMMET, Water tube |
| 60 |
0387215 |
IMPELLER HOUSING, Gearcase |
| 61 |
0315788 |
SEAL, Impeller housing |
| 62 |
0320775 |
LINER, Impeller housing |
| 63 |
0320776 |
PLATE, Impeller housing |
| 63 |
0320981 |
PLATE, Impeller housing This part replaces 0315745. |
| 64 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0316981. |
| 65 |
0305282 |
BOLT, Bowl & suction piece |
| 66 |
0307708 |
RONDELLE GROWER This part replaces 0302865. |
| 67 |
0313697 |
SCR,Grc to hsg.long |
| 68 |
0306314 |
L'WASHER,Scr,long |
| 69 |
0321452 |
GROMMET This part replaces 0318249. |
| 74 |
0377230 |
IMPEELER ASSEMBLY |
| 75 |
0315838 |
BRACKET, Water tube |
| 76 |
0176423 |
PROPELLER, 11 1/4 x 19 - Aluminum This part replaces 0386908. |
| 76 |
0386786 |
PROPELLER, 11-3/4 X 15 |
| 76 |
0386841 |
PROPELLER |
| 76 |
0386907 |
PROPELLER 13 X 11 |
| 76 |
0386909 |
PROPELLER, 12 - 1/2 x 13 |
| 76 |
0386980 |
PROPELLER, 11 - 3/4 x 17, SST |
| 76 |
0386981 |
PROPELLER, 12 - 1/4 x 15, SST |
| 76 |
0386982 |
PROPELLER, 12 1/2 x 13 sst |
| 78 |
0387216 |
WATER PUMP REPAIR KIT |
| 78 |
0389133 |
WATER PUMP REPAIR KIT This part replaces 0387217. |
| 0387107 |
0387107 |
GEARCASE ASSY. , Standard |
| 0387108 |
0387108 |
GEARCASE ASSY. , Long |
