Parts Catalog

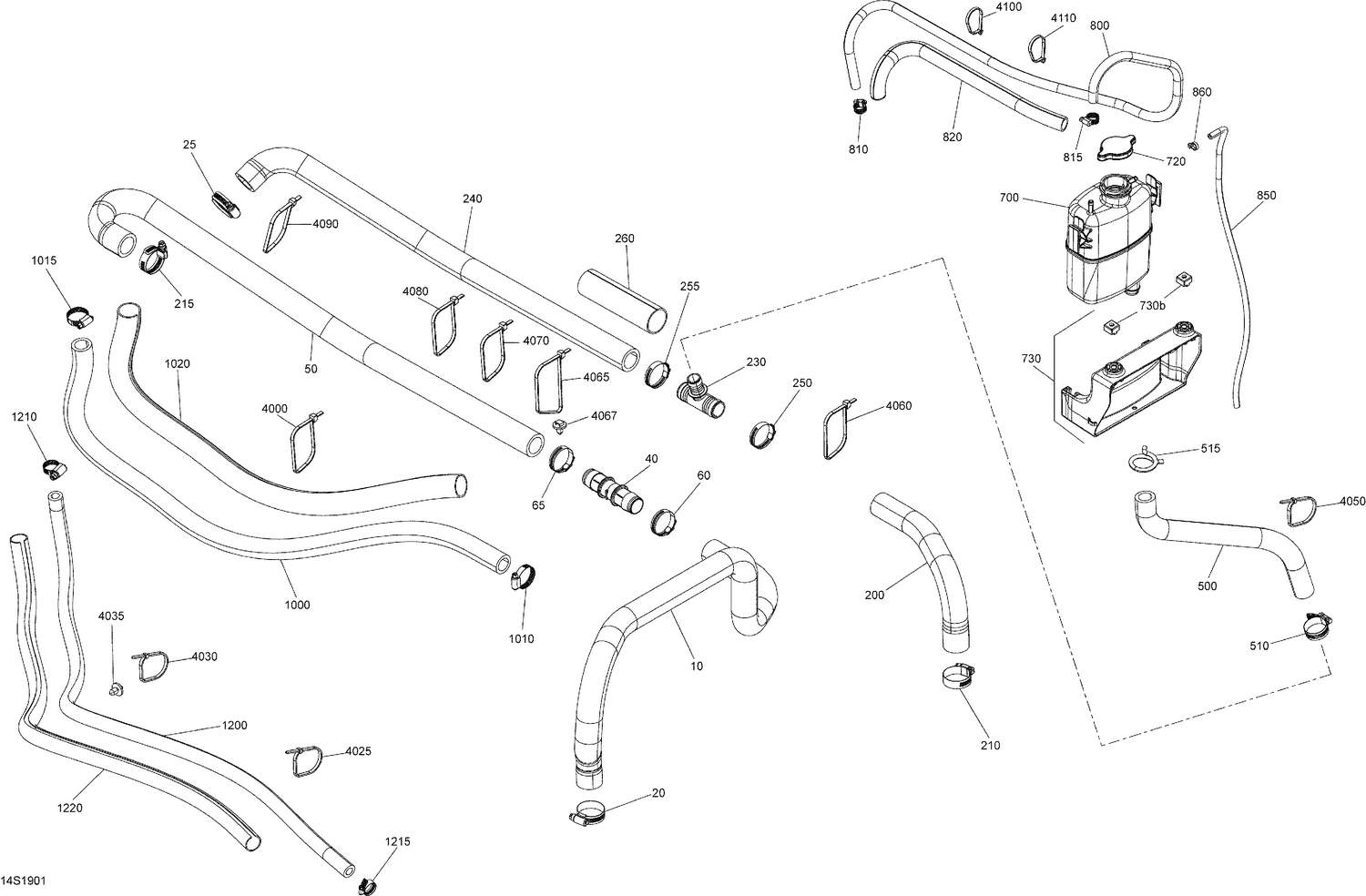

01- Cooling System

Parts (48)

Ref	Part Number	Description
10	276000414	Radiator Hose
20	293650245	Norma Clamp This part replaces 293650280.
25	293650245	Norma Clamp This part replaces 293650280.
40	509000914	Fitting
50	276000403	Formed Hose
60	293650185	Tridon Gear Clamp This part replaces 293650289.
65	293650185	Tridon Gear Clamp This part replaces 293650289.
200	276000404	Formed Hose
210	293650245	Norma Clamp This part replaces 293650280.
215	293650245	Norma Clamp This part replaces 293650280.
230	509000372	T-Fitting
240	276000452	Formed Hose This part replaces 276000401.
250	293650185	Tridon Gear Clamp This part replaces 293650289.
255	293650185	Tridon Gear Clamp This part replaces 293650289.
260	219704428	Tubing 35 MM 1000MM Long
270	219704428	Tubing 35 MM 1000MM Long
500	276000402	Formed Hose
510	293650019	Tridon Gear Clamp This part replaces 293650290.
515	293650115	Spring Clamp
700	276000086	Coolant Tank
720	276000100	Pressure Cap
730a	269502408	Housing Nut M6 This part replaces 269501166.
800	219704362	Was 276000394 Hose 6.4 mm
810	293650287	Gear Clamp
815	293650287	Gear Clamp
820	219704408	Tubing 16 Mm 1000Mm Long
850	219704389	Polyurethane Hose 4000MM Long
860	293750001	Tie Wrap 94 mm
1000	219704361	Hose 19.0Mm. 2000Mm Long
1010	293650284	Gear Clamp
1015	293650284	Gear Clamp
1020	219704402	Tubing 25 MM 1000MM Long
1200	219704394	Was 276000001 Hose 12.5 mm
1210	293650285	Clamp Gear
1215	293650285	Clamp Gear
1220	219704423	Was 515175319 Tubing 22 mm
4000	293750008	Tie Wrap 368 mm
4025	414115200	Tie-Rap 180 mm
4030	414115200	Tie-Rap 180 mm
4035	293730040	Mount Dart
4050	414115200	Tie-Rap 180 mm
4060	293750008	Tie Wrap 368 mm
4065	293750008	Tie Wrap 368 mm
4067	293730040	Mount Dart
4070	293750008	Tie Wrap 368 mm
4080	293750008	Tie Wrap 368 mm
4090	293750008	Tie Wrap 368 mm
4100	414115200	Tie-Rap 180 mm
