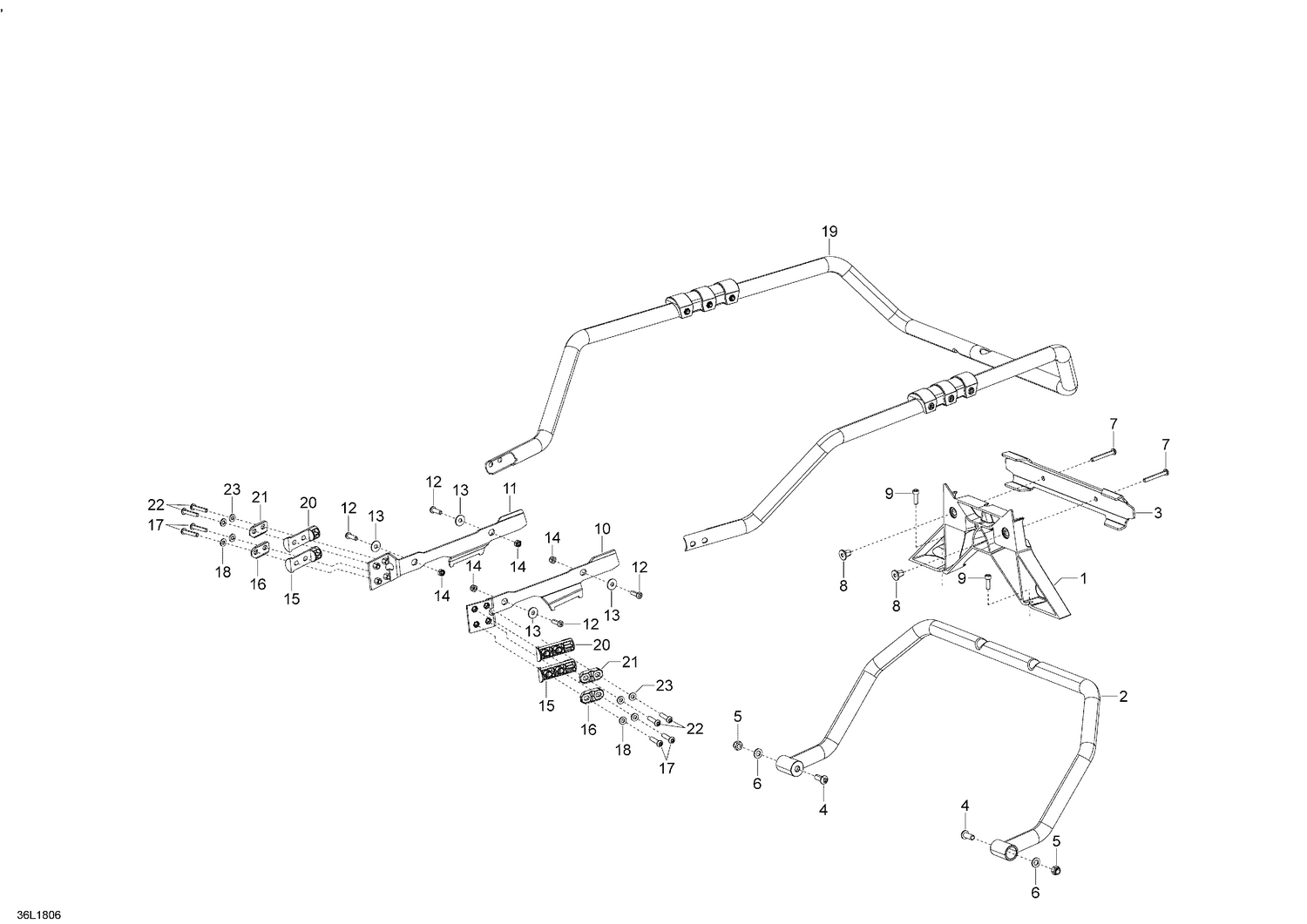

| Ref | Part Number | Description |
|---|
| 1 |
511000559 |
Rear Light Support |
| 2 |
511001088 |
Rear Rack Support Bar |
| 3 |
511001089 |
Clamp For Cargo Rack Tubes |
| 4 |
205482560 |
Socket Screw M8 X 25 |
| 5 |
232581600 |
Hex. Elastic Nut M8 |
| 6 |
234081600 |
Flat Washer 8 mm, Stainless |
| 7 |
205464560 |
Screw-socket Bn.hd. M6 X 45 |
| 8 |
511001090 |
Machined Nut, M6 For Rear Light Sup |
| 9 |
207662056 |
Screw Hex. Flange M6 x 20 |
| 10 |
511001091 |
Bracket For Cargo Rack / Side Tubes |
| 11 |
511001092 |
Bracket For Cargo Rack /side Tubes |
| 12 |
205462060 |
SOCKET SCREW M6 X 20 - Call your local BRP dealership |
| 13 |
234062600 |
Flat Washer M6, Stainless |
| 14 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 15 |
293710158 |
Tube Insert Plastic For 25mm Diamet |
| 16 |
293710159 |
Screw Support Plate For 25mm Diamet |
| 17 |
205463060 |
SOCKET SCREW M6 X 30 - Call your local BRP dealership |
| 18 |
234061600 |
Flat Washer M6, Stainless |
| 19 |
511001086 |
Lower Rear Rack |
| 20 |
293710158 |
Tube Insert Plastic For 25mm Diamet |
| 21 |
293710159 |
Screw Support Plate For 25mm Diamet |
| 22 |
205463060 |
SOCKET SCREW M6 X 30 - Call your local BRP dealership |
