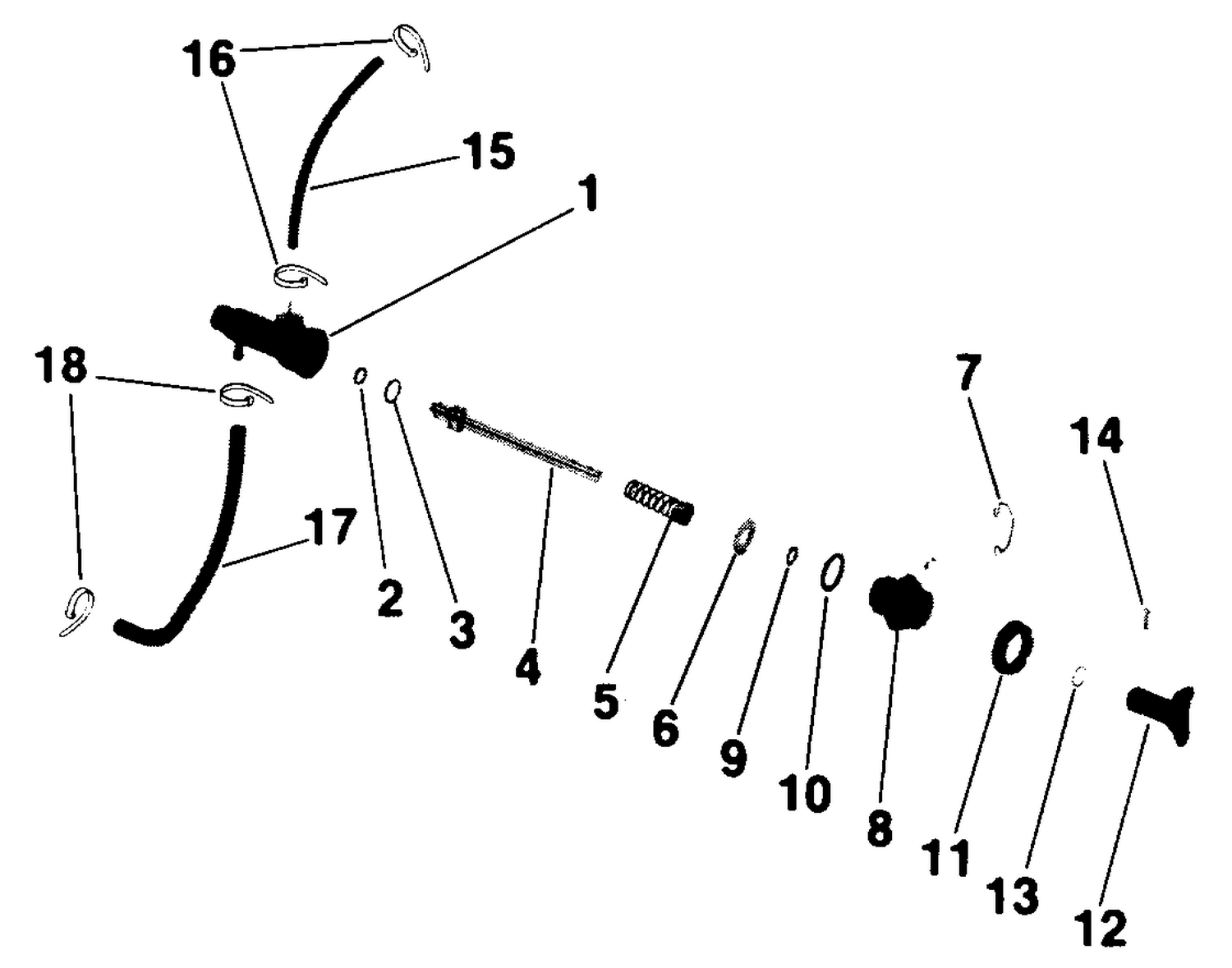

PRIMER PUMP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0396929 | PLUNGER & VALVE ASSEMBLY |
| 5 | 0333541 | SPRING |
| 8 | 0398868 | END CAP |
| 11 | 0329670 | NUT |
| 12 | 0395781 | KNOB & DETENT ASSY This part replaces 0398792. |
| 13 | 0330992 | JOINT TORIQUE, bouton |
| 14 | 0329054 | SCREW |
| 15 | HOSE, | Primer pump to carb. body 5 in. (127mm) long |
| 17 | 0331227 | HOSE, Float bowl to primer pump |
| 0398816 | 0398816 | PRIMER PUMP ASSEMBLY |
