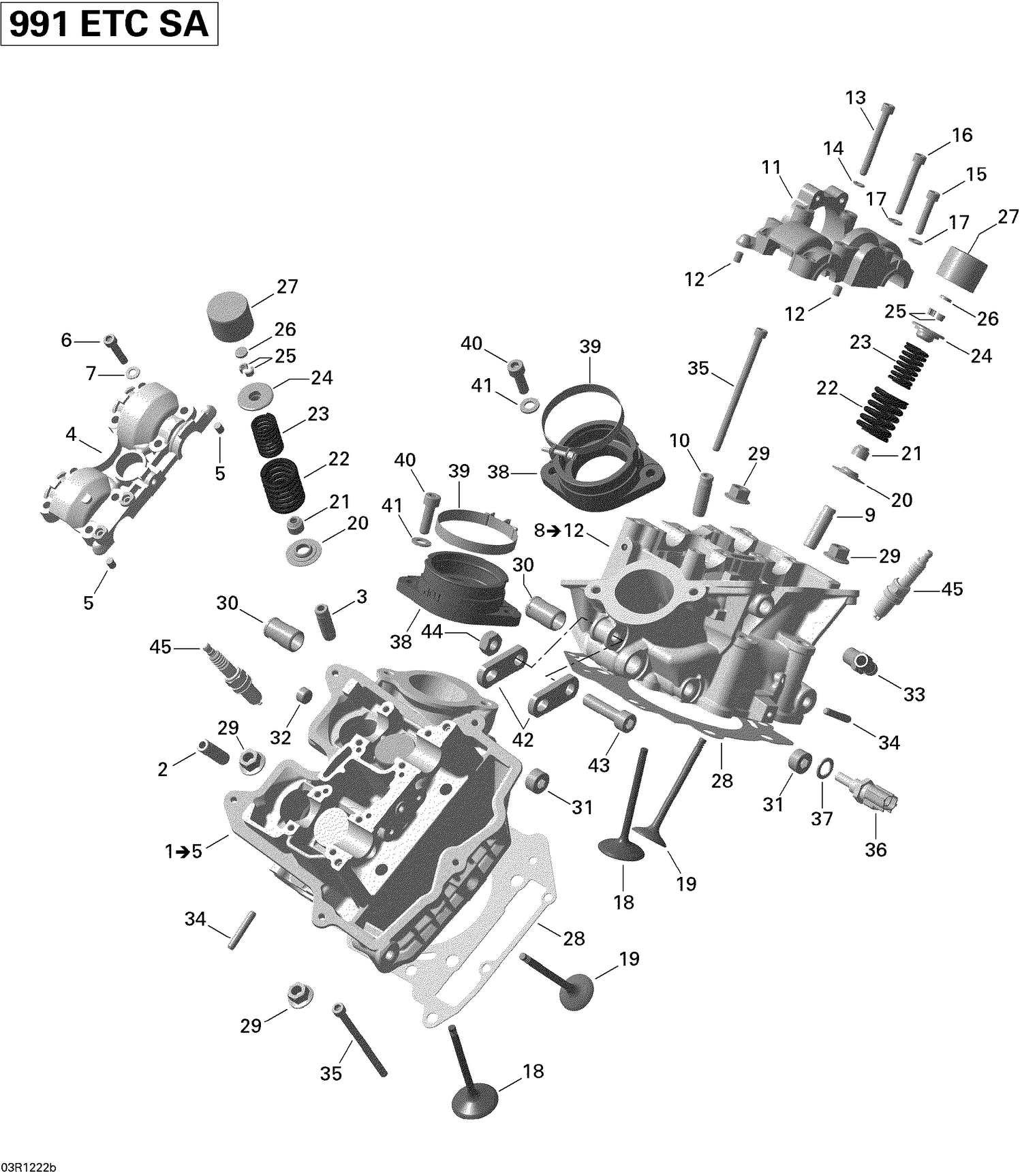

| Ref | Part Number | Description |
|---|
| 2 |
420253926 |
VALVE GUIDE, EXHAUST - Call your local BRP dealership |
| 3 |
420253921 |
VALVE GUIDE, INTAKE - Call your local BRP dealership |
| 4 |
Not |
Available As Spare Part - Camshaft Bearing Cap |
| 5 |
420232210 |
Center Pin |
| 6 |
205063044 |
Socket Head Screw M6 X 30 |
| 7 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 9 |
420253926 |
VALVE GUIDE, EXHAUST - Call your local BRP dealership |
| 10 |
420253921 |
VALVE GUIDE, INTAKE - Call your local BRP dealership |
| 11 |
Not |
Available As Spare Part - Camshaft Bearing Cap |
| 12 |
420232210 |
Center Pin |
| 13 |
420240332 |
Allen Screw M6 X 55 This part replaces 420240331. |
| 14 |
420927863 |
SHIM - Call your local BRP dealership |
| 15 |
205063044 |
Socket Head Screw M6 X 30 |
| 16 |
205064544 |
SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership |
| 17 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 18 |
420254027 |
Exhaust Valve 31 mm |
| 19 |
420254295 |
Intake Valve, 38 mm |
| 20 |
420253967 |
Valve Spring Shim |
| 21 |
420230510 |
Seal |
| 22 |
420238211 |
VALVE SPRING, OUTER - Call your local BRP dealership |
| 23 |
420238201 |
Valve Spring, Inner |
| 24 |
420253957 |
Valve Spring Retainer |
| 25 |
420253645 |
Valve Cotter |
| 26 |
420253974 |
SHIM 2.3 - Call your local BRP dealership |
| 26 |
420253975 |
Shim 2.35 |
| 26 |
420253976 |
SHIM 2.4 - Call your local BRP dealership |
| 26 |
420253977 |
SHIM 2.45 - Call your local BRP dealership |
| 26 |
420253978 |
SHIM 2.5 - Call your local BRP dealership |
| 26 |
420253979 |
SHIM 2.55 - Call your local BRP dealership |
| 26 |
420253980 |
SHIM 2.6 - Call your local BRP dealership |
| 26 |
420253981 |
SHIM 2.65 - Call your local BRP dealership |
| 26 |
420253982 |
SHIM 2.7 - Call your local BRP dealership |
| 26 |
420253983 |
SHIM 2.75 - Call your local BRP dealership |
| 26 |
420253984 |
SHIM 2.8 - Call your local BRP dealership |
| 26 |
420253985 |
SHIM 2.85 - Call your local BRP dealership |
| 26 |
420253986 |
SHIM 2.9 - Call your local BRP dealership |
| 26 |
420253987 |
SHIM 2.95 - Call your local BRP dealership |
| 26 |
420253988 |
SHIM 3.0 - Call your local BRP dealership |
| 26 |
420253989 |
SHIM 3.05 - Call your local BRP dealership |
| 26 |
420254030 |
SHIM 2.325 - Call your local BRP dealership |
| 26 |
420254031 |
SHIM 2.375 - Call your local BRP dealership |
| 26 |
420254032 |
SHIM 2.425 - Call your local BRP dealership |
| 26 |
420254033 |
SHIM 2.475 - Call your local BRP dealership |
| 26 |
420254034 |
SHIM 2.525 - Call your local BRP dealership |
| 26 |
420254035 |
SHIM 2.575 - Call your local BRP dealership |
| 26 |
420254036 |
Shim 2.625 |
| 26 |
420254037 |
Shim 2.675 |
| 26 |
420254038 |
SHIM 2.725 - Call your local BRP dealership |
| 26 |
420254039 |
SHIM 2.775 - Call your local BRP dealership |
| 26 |
420254040 |
SHIM 2.825 - Call your local BRP dealership |
| 26 |
420254041 |
SHIM 2.875 - Call your local BRP dealership |
| 26 |
420254042 |
SHIM 2.925 - Call your local BRP dealership |
| 26 |
420254043 |
SHIM 2.975 - Call your local BRP dealership |
| 26 |
420254044 |
SHIM 3.025 - Call your local BRP dealership |
| 27 |
420253990 |
Tappet Valve |
| 28 |
420650210 |
Cylinder Head Gasket |
| 29 |
233101414 |
Hex. Flange Nut M10 |
| 30 |
420224090 |
Elbow Fitting |
| 31 |
420240170 |
Plug Screw M18 X 1.5 - Call your local BRP dealership |
| 32 |
420840658 |
Plug Screw M12x1,5 This part replaces 420840657. |
| 33 |
420922242 |
Angular Tube |
| 34 |
420440131 |
Stud, M6 X 19/16 |
| 35 |
420241602 |
Socket Head Screw M6 X 100 This part replaces 420241601. |
| 36 |
420274040 |
Temperature Sensor |
| 37 |
420250640 |
Copper Washer |
| 38 |
420267151 |
Intake Flange This part replaces 420267150. |
| 39 |
420251830 |
Hose Clamp |
| 40 |
205082544 |
Socket Head Screw M8 X 25 |
| 41 |
420250315 |
Flat Washer 8.4 mm This part replaces 420250311. |
| 42 |
420251100 |
SUPPORT BRACKET - Call your local BRP dealership |
| 43 |
420640581 |
SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership |
| 44 |
232006414 |
Hex. Nut M10 X 1.5 |
