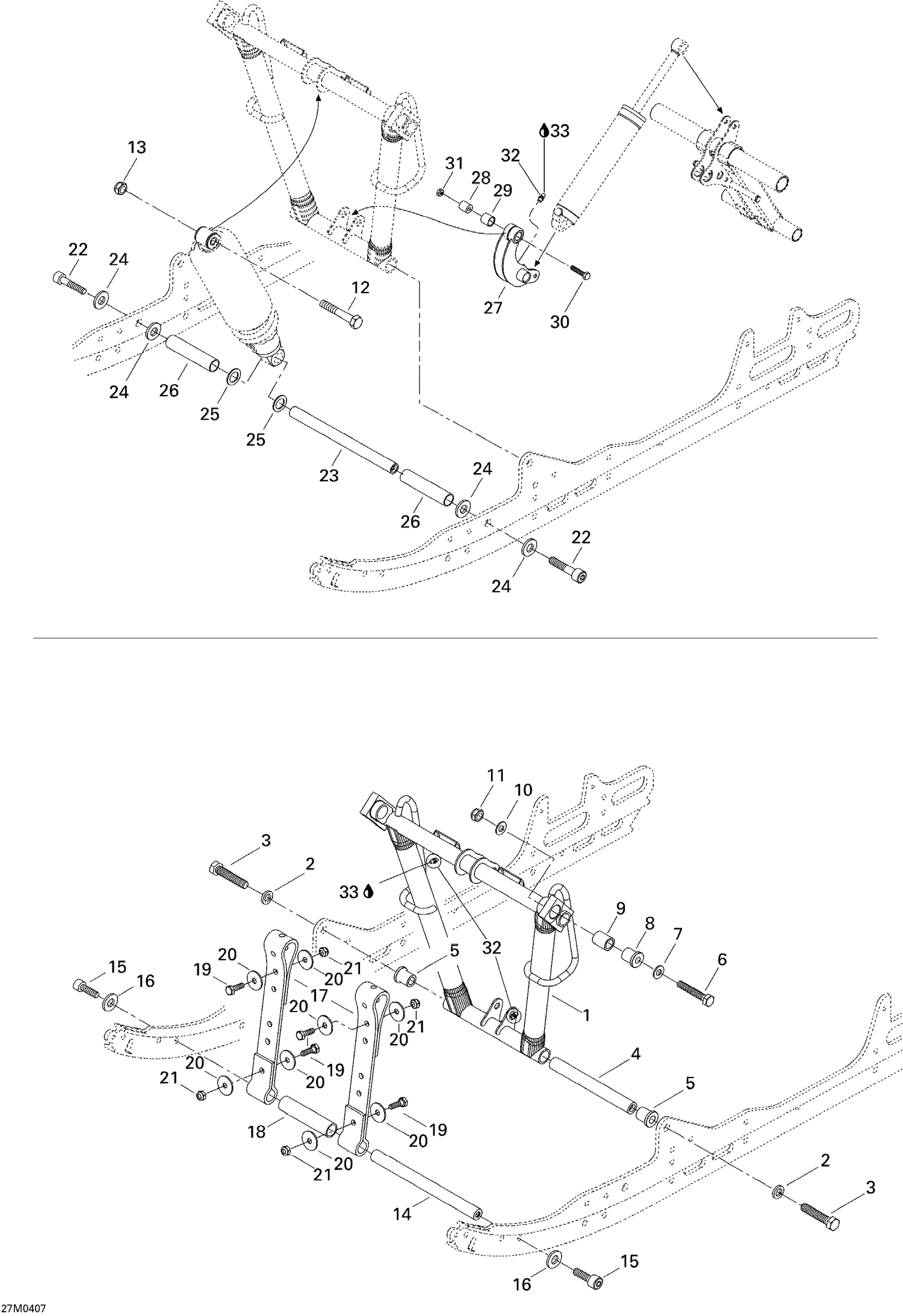

08- Front Arm
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503190674 | Front Arm |
| 2 | 503189276 | Washer |
| 3 | 207226044 | HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 4 | 503189313 | SHAFT - Call your local BRP dealership |
| 5 | 503189323 | CUSHION - Call your local BRP dealership |
| 6 | 207005544 | Hex. Screw M10 X 55 |
| 7 | 732900049 | Washer |
| 8 | 503190373 | EXTENSION - Call your local BRP dealership |
| 9 | 503190474 | EXTENDED BUSHING - Call your local BRP dealership |
| 10 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 11 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 12 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 13 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 14 | 503189562 | AXLE - Call your local BRP dealership |
| 15 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 16 | 503189564 | Washer |
| 17 | 503190563 | Stopper Strap, Large |
| 18 | 503189265 | Spacer |
| 19 | 207182544 | Hex. Screw M8 X 25 |
| 20 | 224081301 | Flat Washer |
| 21 | 232581414 | Hex. Elastic Stop Nut M8 |
| 22 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 23 | 503189272 | CENTER SHOCK SHAFT - Call your local BRP dealership |
| 24 | 503189276 | Washer |
| 25 | 503189273 | Washer |
| 26 | 503189274 | SPACER - Call your local BRP dealership |
| 27 | 503189845 | Rocker |
| 28 | 503189388 | Rocker Axle |
| 29 | 503189626 | CUSHION - Call your local BRP dealership |
| 30 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 31 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 32 | 408200700 | Grease Fitting |
