| Ref | Part Number | Description |
|---|
| 9 |
0435957 |
DIAPHRAGM |
| 10 |
0322323 |
SCREW |
| 11 |
0436195 |
ENSEMBLE THERMOSTAT |
| 12 |
0329830 |
GASKET, Cover |
| 14 |
0326248 |
SCREW |
| 15 |
0325211 |
GASKET |
| 16 |
0437506 |
COVER & PLUG Assy, Water passage |
| 18 |
0432424 |
SPARK PLUG , QL16V |
| 18 |
0502894 |
SPARK PLUG, Champion, L16V |
| 19 |
0316355 |
BUT, Carburetor mounting |
| 20 |
0335359 |
GASKET, Cylinder head |
| 22 |
0339540 |
CYLINDER HEAD |
| 23 |
HOSE, |
Indicator, 18 3/4 in. (480mm) |
| 25 |
0326023 |
LIFT BRACKET |
| 26 |
0343141 |
COVER, Thermostat |
| 28 |
0306049 |
SCREW |
| 29 |
0302288 |
BOLT |
| 30 |
0343115 |
SPRING |
| 0437341 |
0437341 |

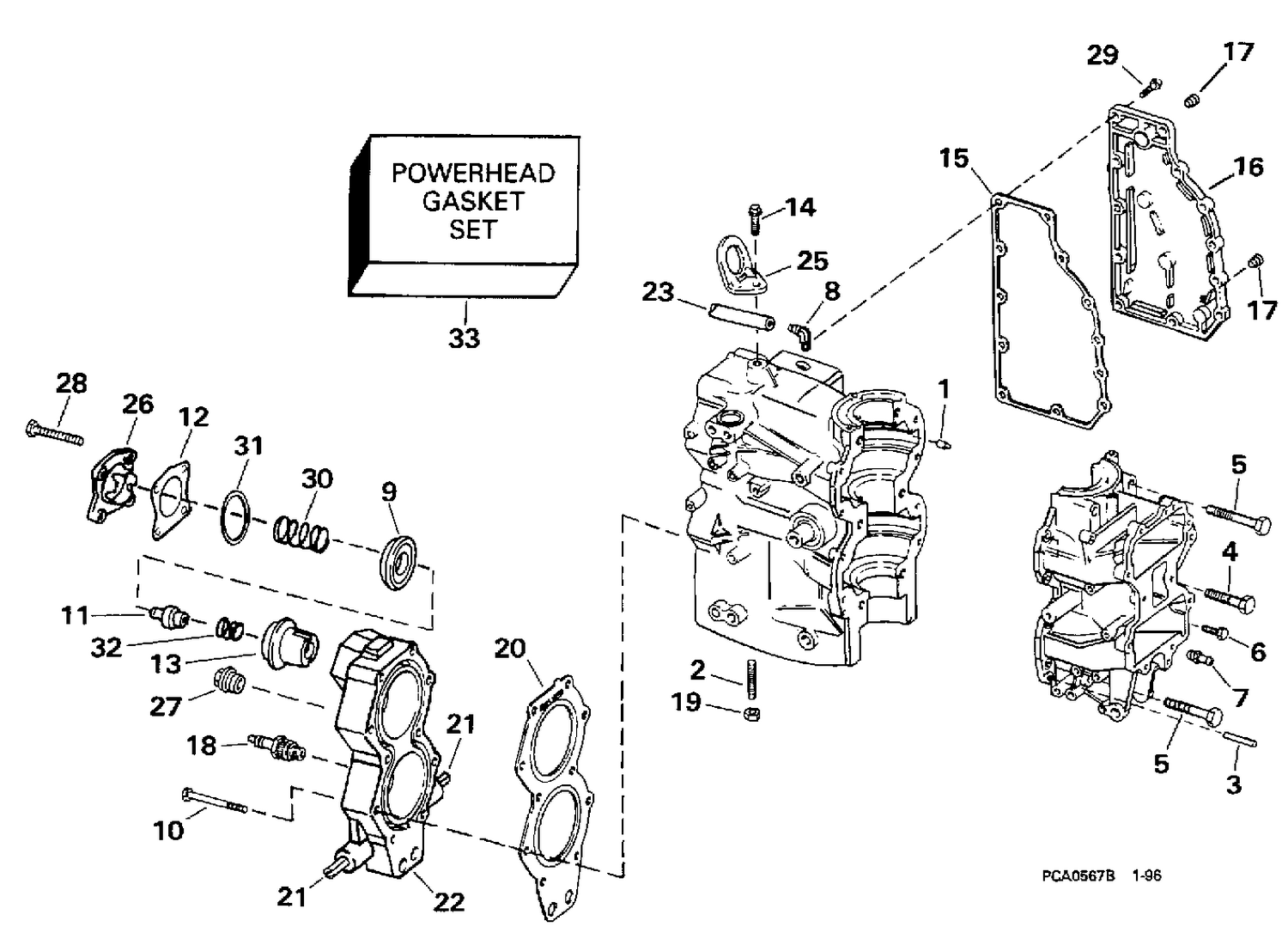

CYLINDER & C'CASE Assy |
