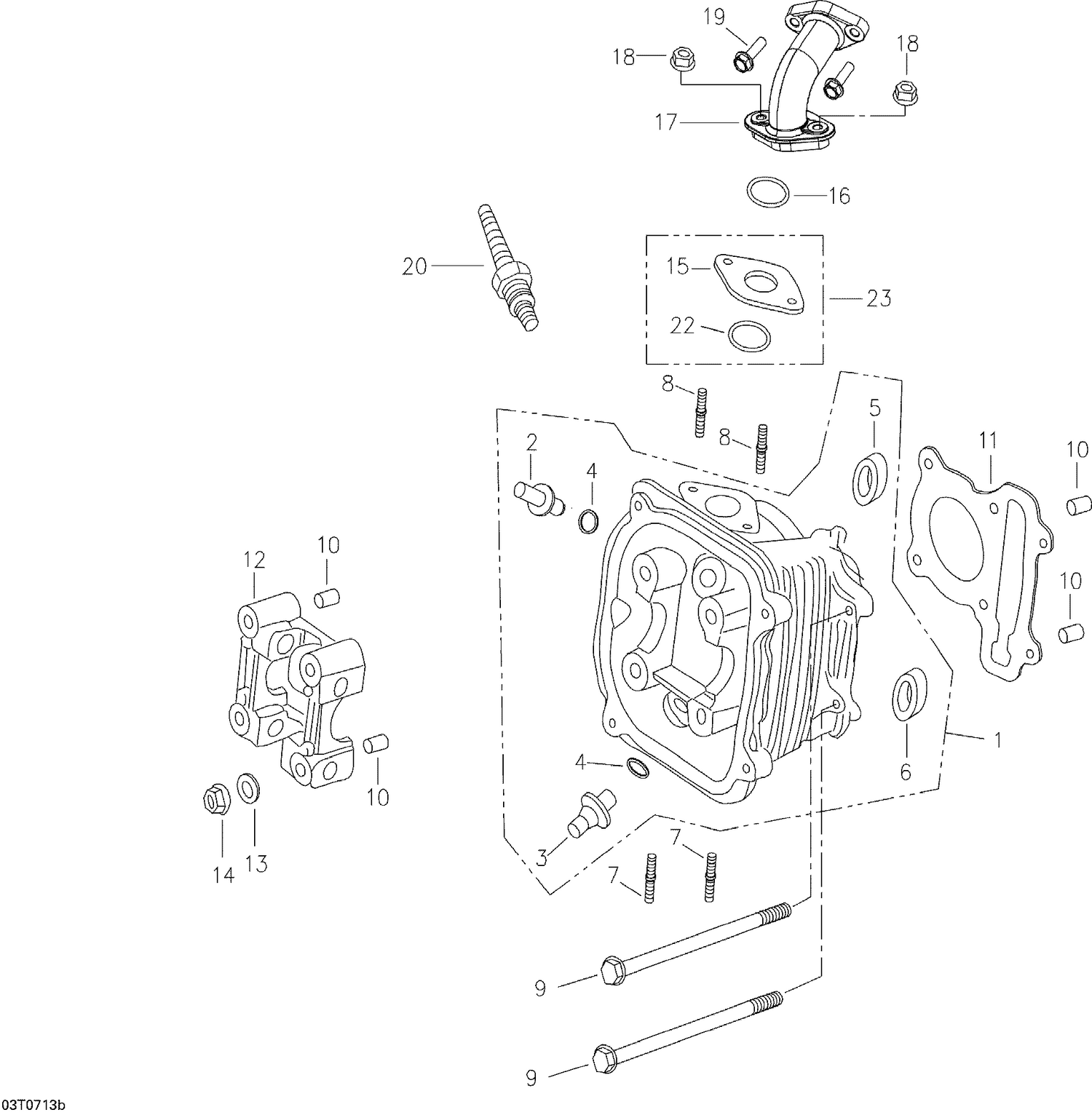

01- Cylinder Head
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A12204175000 | Valve Guide |
| 3 | A12206175000 | Valve Guide Ex. |
| 4 | A9130912000A | OIL-RING - Call your local BRP dealership |
| 5 | A12225175000 | Seat Intake Valve |
| 6 | A12226175000 | Seat Exhaust Valve |
| 7 | A9100106032 | Stud Bolt M6 X 32 |
| 8 | A9100106040 | Stud Bolt |
| 9 | A960000608508 | Hexagonal Washer Face Bolt |
| 10 | A9430108140A | Dowel Pin |
| 11 | A12251175000 | CYLINDER HEAD GASKET - Call your local BRP dealership |
| 12 | A12211133000 | Camshaft Holder |
| 13 | A941010714025 | Flat Washer |
| 14 | A9405007000 | HEX.FLANGE NUT WITH SERRATION M7 - Call your local BRP dealership |
| 15 | Not | Available As Spare Part - Carburetor Insulator |
| 16 | A91322175000 | Oil Ring |
| 17 | A1710017500A | Intake Manifold |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 207662044 | Hex. Flange Screw M6 X 20 |
| 20 | 219703175 | Spark Plug NGK CR7HSA This part replaces 219700195. |
| 22 | Not | Available As Spare Part - Ring |
