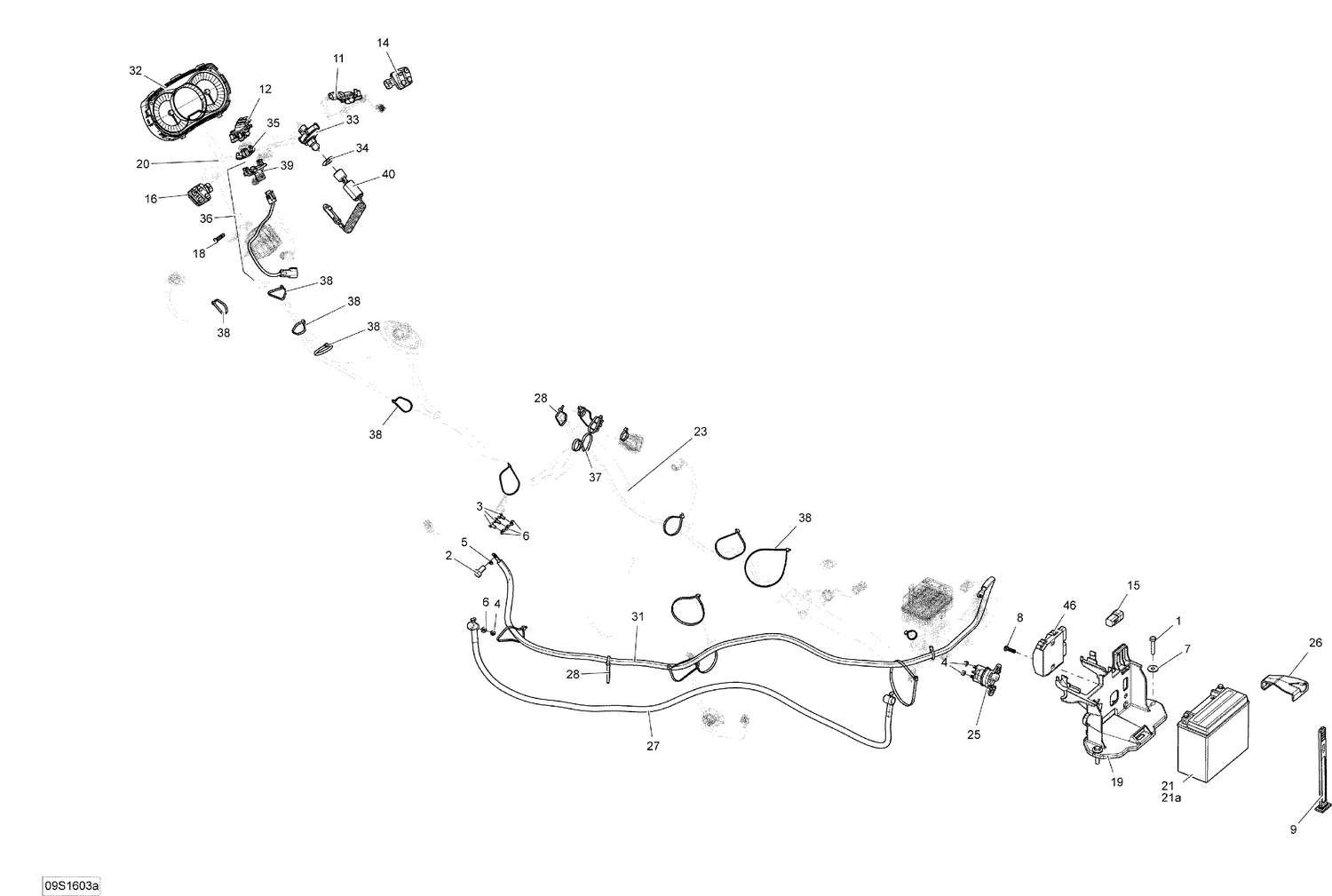

10- Electrical System - RXT-X aS 260
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207184060 | Hex. Screw M8 X 40 |
| 2 | 207302060 | Hex. Screw M10 X 20, Scotch Grip |
| 3 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 4 | 232561200 | Brass Elastic Stop Nut M6 |
| 5 | 234000600 | Flat Washer 10 mm, Stainless |
| 6 | 234061600 | Stainless Flat Washer M6 |
| 7 | 234082600 | Flat Washer 8 mm, Stainless |
| 8 | 250000466 | Torx Screw Plastite M6 |
| 9 | 269502417 | Strap This part replaces 269500408. |
| 11 | 278002283 | Throttle Position Sensor |
| 12 | 278002284 | LH Throttle Sensor |
| 14 | 278002602 | Switch RH Mode/Set |
| 15 | 278002704 | Diagnostic Connector |
| 16 | 278002767 | Switch LH VTS/Sport/Eco |
| 18 | 278002910 | Clip (double dart) |
| 19 | 278003136 | Batt. Support |
| 20 | 278003266 | Steering Harness Ass'y |
| 21 | 410301203 | Battery YUASA YTX20L |
| 21a | 250000282 | Battery Bolt Kit |
| 23 | 278003332 | Main Harness |
| 25 | 278003012 | Starter Relay |
| 26 | 278003521 | Clip This part replaces 278003359. |
| 27 | 278003398 | Cable-Starter |
| 28 | 293750008 | Tie Wrap 368 mm |
| 31 | 278003269 | Battery Ground Cable |
| 32 | 278003382 | LCD Gauge |
| 33 | 515178840 | Terminal Dess One-Wire This part replaces 515178049. |
| 34 | 278002963 | Safety Nut (DESS Switch) |
| 35 | 278003537 | O.T.A.S Actuator This part replaces 278003053. |
| 36 | 278003009 | O.T.A.S. Sensor Ass'y |
| 37 | 293750053 | Tie Rap 300mm |
| 38 | 293750047 | Tie Rap, 533 mm |
| 38 | 414115200 | Tie-Rap 180 mm |
| 39 | 278003008 | O.T.A.S. Sensor |
| 40 | 278003400 | Safety Lanyard Ass'y, RFID |
| 40 | 278003401 | Safety Lanyard Ass'y, Learning / RFID |
