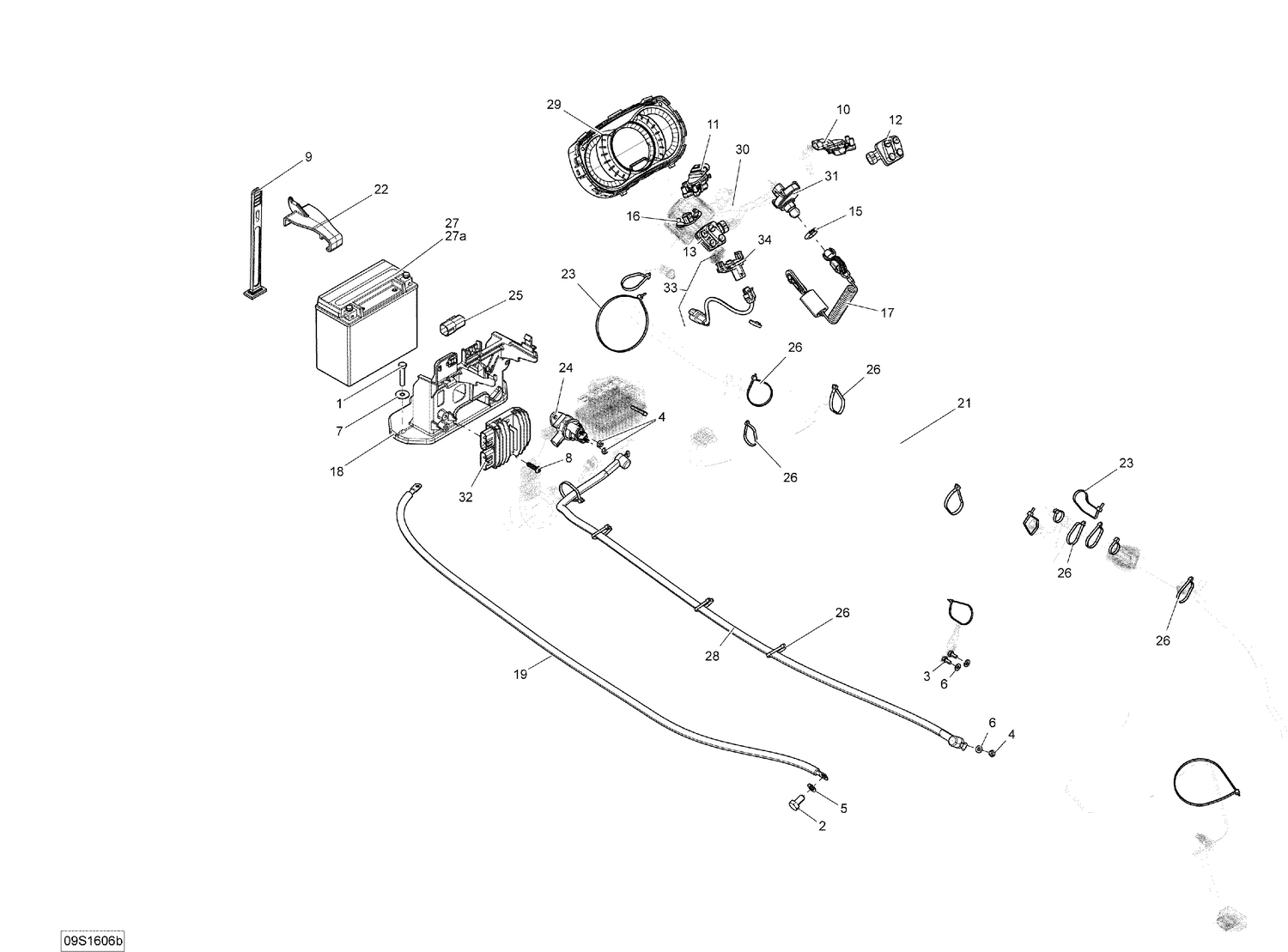

10- Electrical System - GTI LTD
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207184060 | Hex. Screw M8 X 40 |
| 2 | 207302060 | Hex. Screw M10 X 20, Scotch Grip |
| 3 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 4 | 232561200 | Brass Elastic Stop Nut M6 |
| 5 | 234000600 | Flat Washer 10 mm, Stainless |
| 6 | 234061600 | Stainless Flat Washer M6 |
| 7 | 234082600 | Flat Washer 8 mm, Stainless |
| 8 | 250000466 | Torx Screw Plastite M6 |
| 9 | 269502417 | Strap This part replaces 269500408. |
| 10 | 278002283 | Throttle Position Sensor |
| 11 | 278002284 | LH Throttle Sensor |
| 12 | 278002602 | Switch RH Mode/Set |
| 13 | 278002767 | Switch LH VTS/Sport/Eco |
| 15 | 278002963 | Safety Nut (DESS Switch) |
| 16 | 278003537 | O.T.A.S Actuator This part replaces 278003053. |
| 17 | 278003402 | Safety Lanyard Ass'y, RFID |
| 18 | 278003136 | Batt. Support |
| 19 | 278003270 | Battery Ground Cable |
| 21 | 278003336 | Main Harness |
| 22 | 278003521 | Clip This part replaces 278003359. |
| 23 | 293750008 | Tie Wrap 368 mm |
| 24 | 278003012 | Starter Relay |
| 25 | 278002704 | Diagnostic Connector |
| 26 | 414115200 | Tie-Rap 180 mm |
| 27 | 410301203 | Battery YUASA YTX20L |
| 27a | 250000282 | Battery Bolt Kit |
| 28 | 278003370 | Cable-Starter |
| 29 | 278003378 | LCD Gauge |
| 30 | 278003262 | Steering Harness Ass'y |
| 31 | 515178840 | Terminal Dess One-Wire This part replaces 515178049. |
| 32 | 710001103 | Voltage Regulator |
| 33 | 278003009 | O.T.A.S. Sensor Ass'y |
