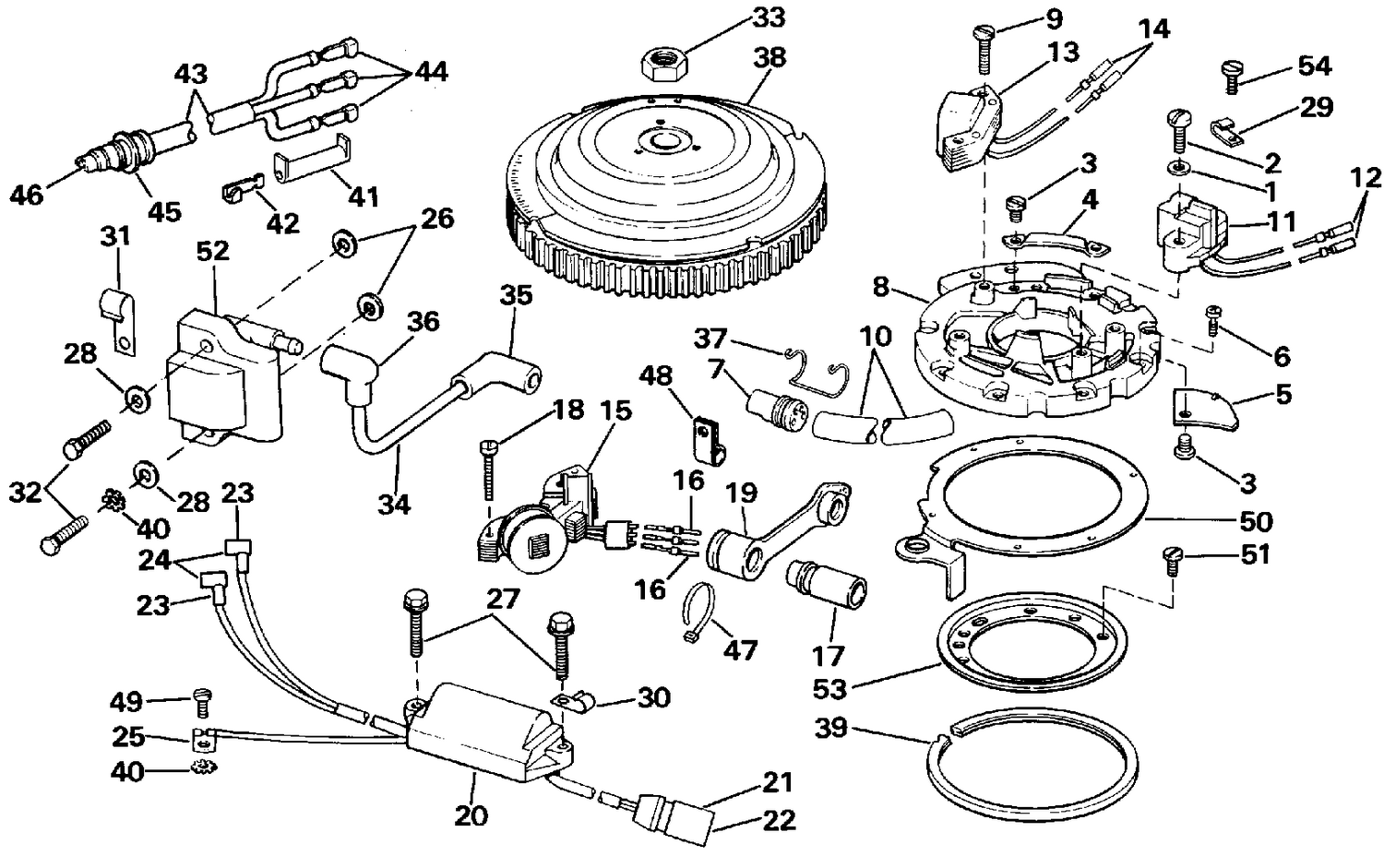

| Ref | Part Number | Description |
|---|
| 3 |
0303212 |
VIS, collier & capot |
| 4 |
0511458 |
COLLIER, fils |
| 5 |
0511459 |
CACHE, fils |
| 6 |
0511460 |
VIS, dispositif de retenue |
| 8 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 10 |
0511482 |
SLEEVE |
| 11 |
0583387 |
SENSOR ASSEMBLY This part replaces 0581655. |
| 13 |
0581670 |
CHARGE COIL |
| 20 |
0583604 |
POWER PACK |
| 27 |
0328726 |
SCREW (Use existing coil screw) |
| 31 |
0310441 |
CLAMP, CPS lead |
| 32 |
0328726 |
SCREW (Use existing coil screw) |
| 33 |
0326111 |
NUT |
| 34 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 37 |
0512743 |
DISPOSITIF DE RETENUE |
| 38 |
0583696 |
FLYWHEEL ASSEMBLY This part replaces 0583012. |
| 39 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 48 |
0330157 |
CLAMP |
| 49 |
0317753 |
SCREW |
| 50 |
0334193 |
RETAINER, Ign. plate assy. |
| 51 |
0332070 |
SCREW, Retaining plate This part replaces 0326875. |
| 52 |
0582508 |
COIL ASSY |
| 53 |
0332063 |
PLATE, Support |
| 0583391 |
0583391 |
ARMATURE PLATE ASSEMBLY |
