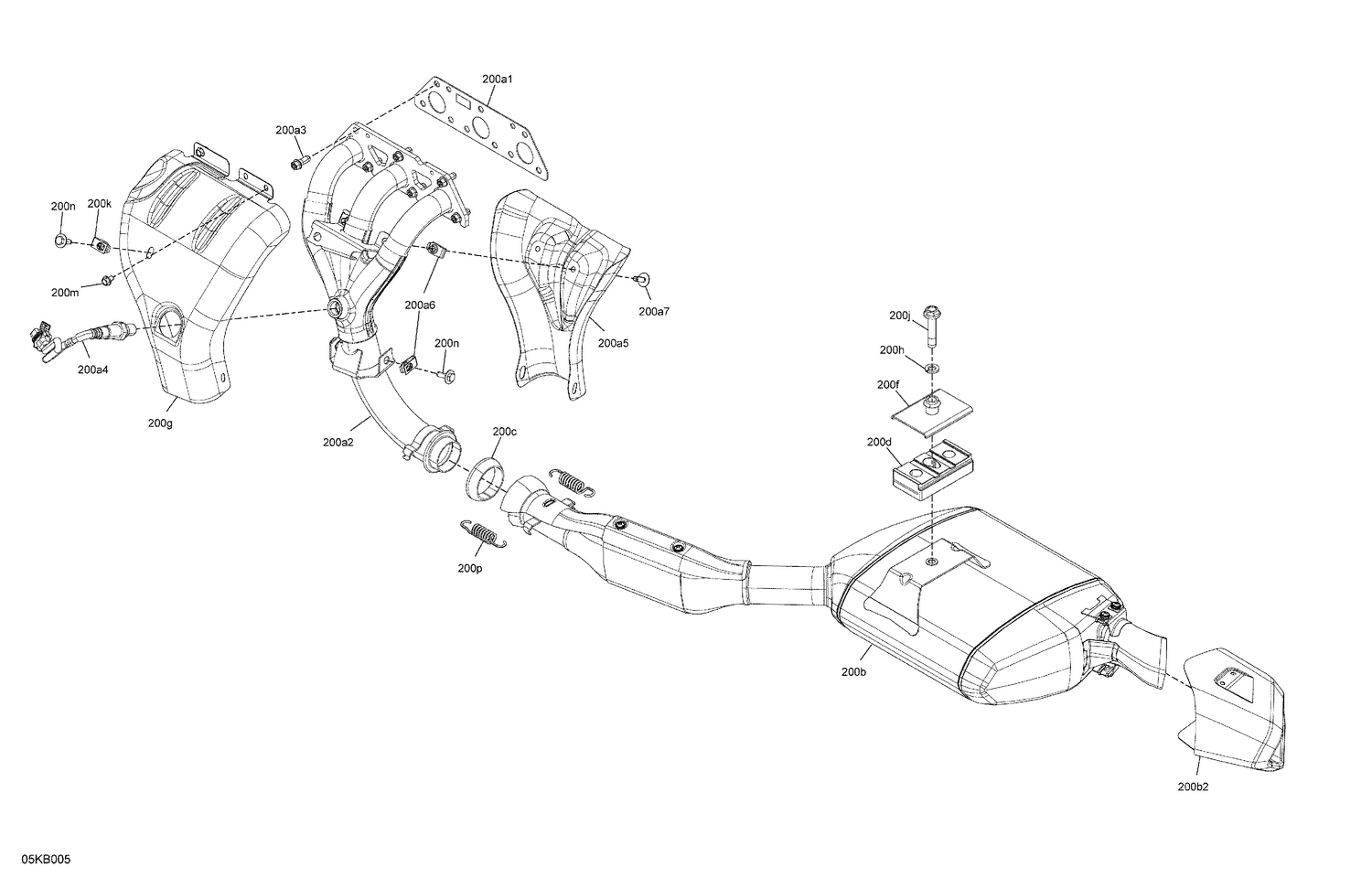

02- Engine - Exhaust
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 200a1 | 707602002 | Exhaust Manifold Gasket |
| 200a2 | 707602001 | Exhaust Manifold |
| 200a3 | 250001089 | Hex. Flange Screw M8 X 20 |
| 200a4 | 707600872 | Oxygen Sensor |
| 200a5 | 707602267 | Deflector |
| 200a6 | 250100198 | Panel Nut M6 X 1.0 |
| 200a7 | 250000965 | Hex Screw M6 X 20 |
| 200b2 | 707603273 | Exhaust Muffler Pipe |
| 200c | 707601033 | Exhaust Gasket |
| 200d | 707603448 | Vibration Damper This part replaces 707602056. |
| 200f | 707602413 | Plate Fastener |
| 200g | 707602312 | Deflector |
| 200h | 234101601 | Helicoidal Lock Washer M10 |
| 200j | 250001079 | Hex. Flange Screw M10 X 50 |
| 200k | 250100198 | Panel Nut M6 X 1.0 |
| 200m | 210261050 | Hex. Forming Screw M6 X 10 |
| 200n | 250000965 | Hex Screw M6 X 20 |
