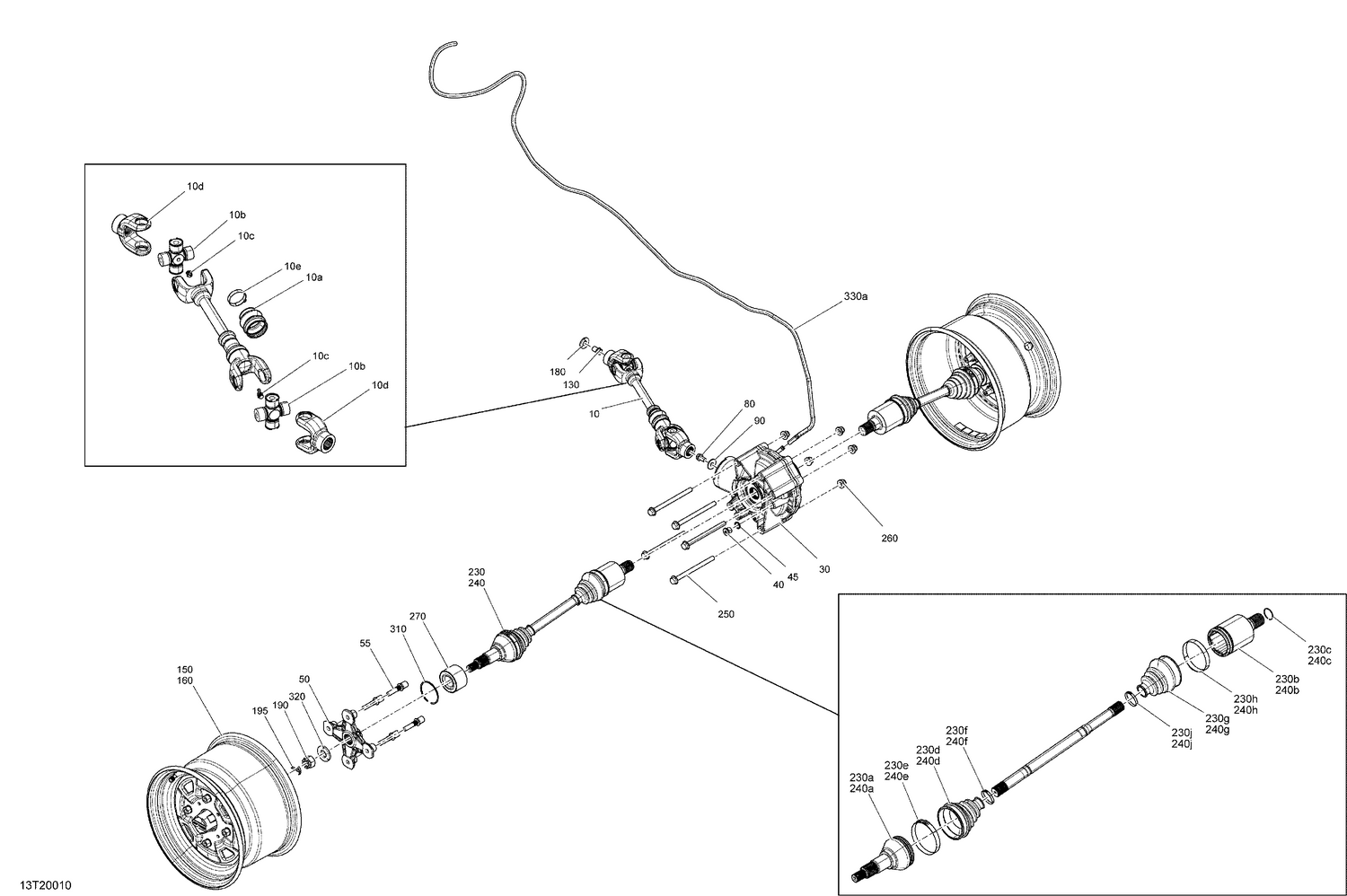

08- Rear Drive - Common Parts
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10c | 715900295 | Grease Fitting |
| 10d | 715900439 | Fixe Yoke |
| 10e | 705400036 | Wear Ring |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 50 | 705501716 | Wheel Hub Ass'y |
| 55 | 250300643 | Wheel Stud This part replaces 250300642. |
| 80 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP |
| 90 | 250200014 | Flat Washer M10 |
| 130 | 250001039 | Hex Flange Screw M12 X 16 |
| 150 | Not | Available As Spare Part - RH Rear Wheel |
| 160 | Not | Available As Spare Part - LH Rear Wheel |
| 180 | 250200005 | Conical Spring Washer M12 |
| 190 | 232291413 | Hex. Flange Castellated Nut M18 |
| 195 | 250400071 | Cotter Pin |
| 230 | 705501897 | RH Half Shaft Ass'y |
| 230a | 705401344 | CV Joint |
| 230b | 715900304 | Plunging Joint |
| 230c | 705501781 | Circlip |
| 230e | 715900282 | Oetiker Clamp |
| 230f | 715900283 | Oetiker Clamp, Small |
| 230h | 715900284 | Oetiker Clamp, Large |
| 230j | 715900261 | Oetiker Clamp, Small |
| 240 | 705501898 | LH Half Shaft Ass'y |
| 240a | 705401344 | CV Joint |
| 240b | 715900304 | Plunging Joint |
| 240c | 705501781 | Circlip |
| 240e | 715900282 | Oetiker Clamp |
| 240f | 715900283 | Oetiker Clamp, Small |
| 240h | 715900284 | Oetiker Clamp, Large |
| 240j | 715900261 | Oetiker Clamp, Small |
| 250 | 250001041 | Hex. Flange Screw M10 X 135 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 293350150 | Ball Bearing This part replaces 293350118. |
| 310 | 293370019 | Circlip |
| 320 | 250200171 | Conical Spring Washer M18 |
