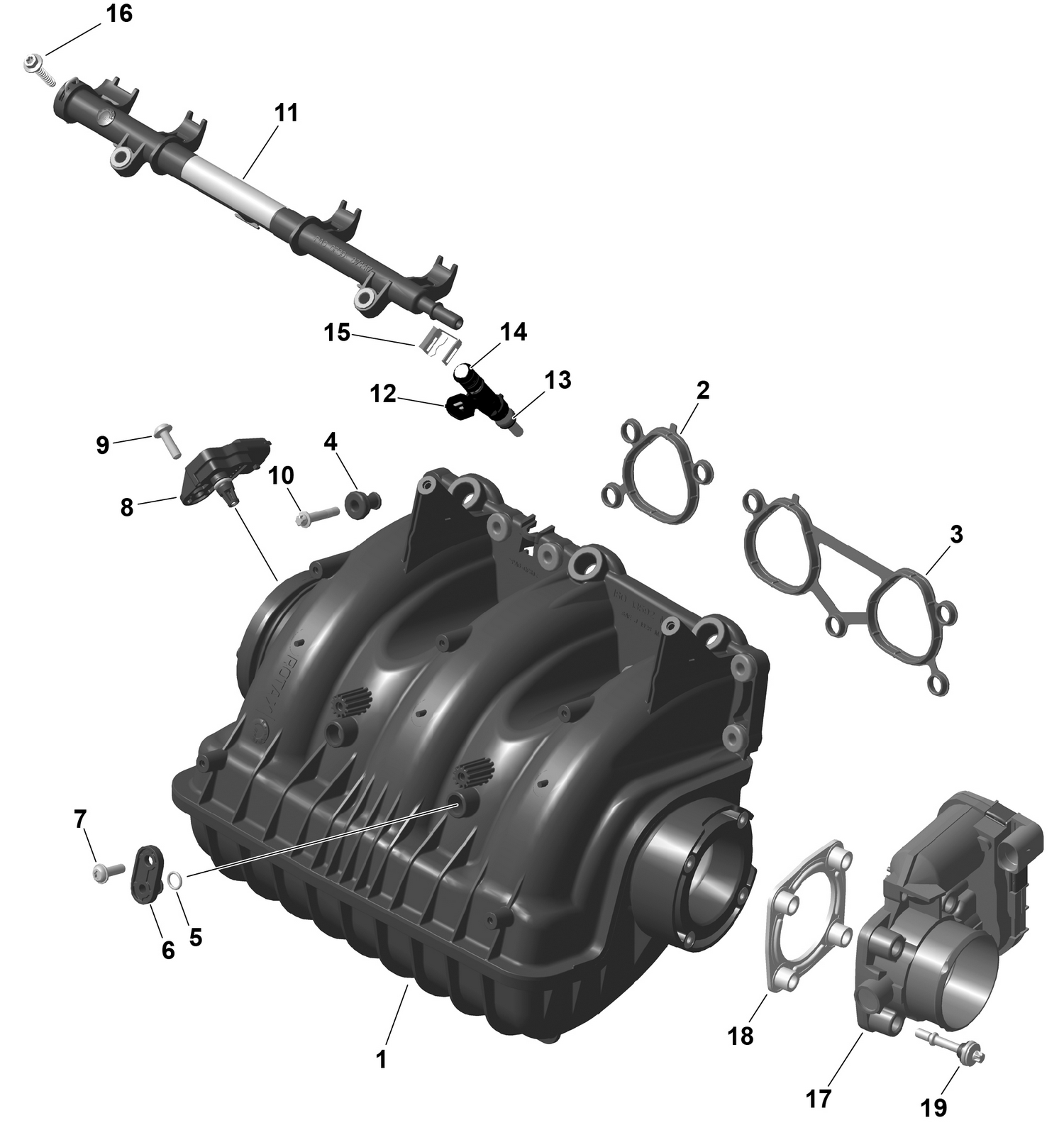

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 420629173 | Distance Sleeve Ass'y |
| 5 | 420230463 | O-Ring |
| 6 | 420460980 | Cover |
| 7 | 420841103 | Torx Flange Screw M6 X 20 |
| 8 | 515178563 | Pressure Sensor And Air Temperature This part replaces 420874656. |
| 9 | 420841103 | Torx Flange Screw M6 X 20 |
| 10 | 420840663 | Torx Flange Screw M6 X 30 |
| 11 | 420874416 | Fuel Rail Ass'y |
| 13 | 420831050 | O-Ring |
| 14 | 420831060 | O-Ring |
| 15 | 420853030 | Injector Clip |
| 16 | 420441575 | Torx Screw 6X30 |
| 17 | 420892592 | Throttle Body Socket Ass’y |
| 18 | 420950792 | Rubber Gasket |
