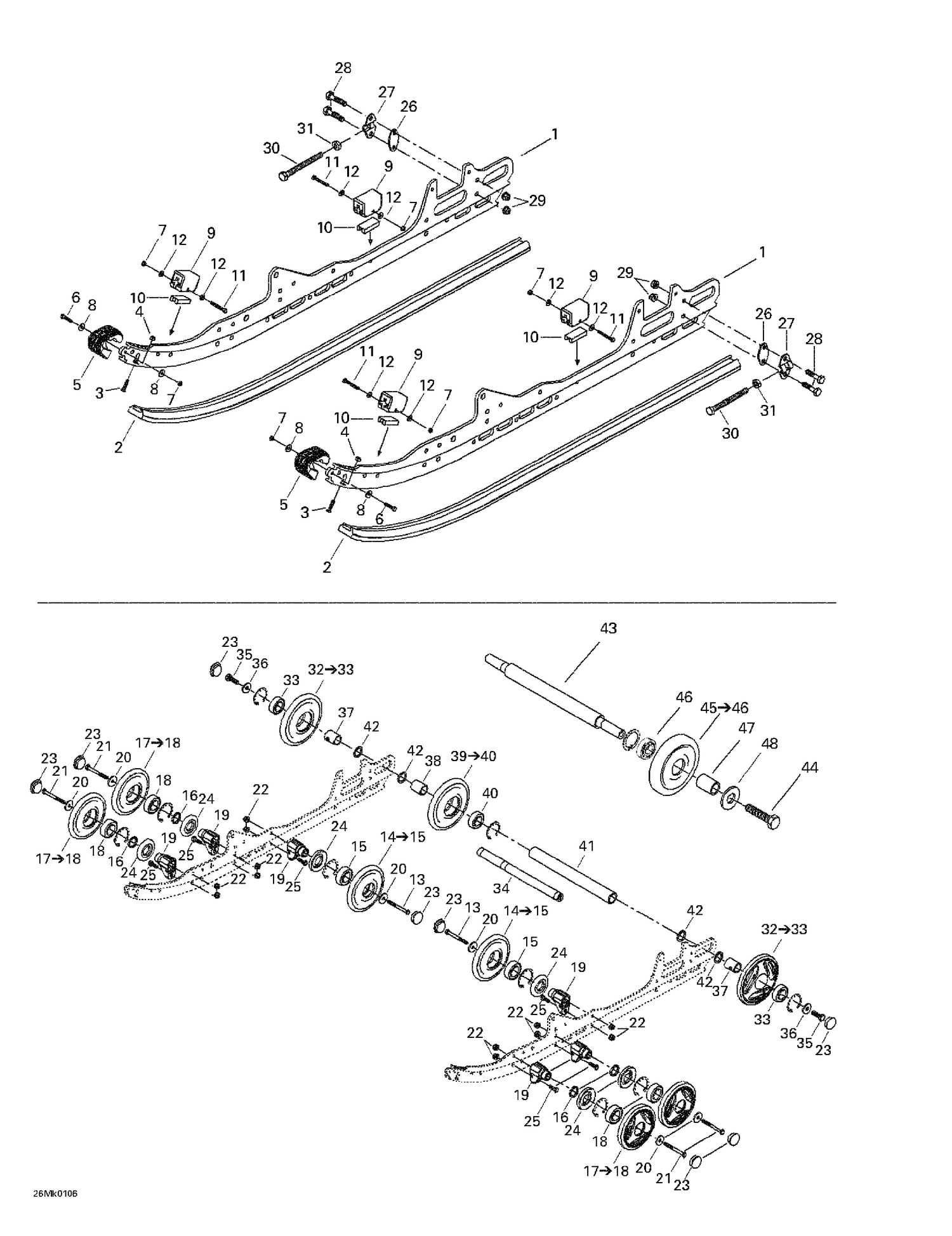

| Ref | Part Number | Description |
|---|
| 1 |
503189415 |
Runner |
| 2 |
605355362 |
Slide Shoe This part replaces 503189639. |
| 3 |
208562560 |
Phillips Screw M6 X 25 |
| 4 |
232561414 |
Elastic Stop Nut M6 |
| 5 |
572075400 |
RUNNER PROTECTOR - Call your local BRP dealership |
| 6 |
207152544 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 7 |
232551414 |
Elastic Stop Nut M5 |
| 8 |
391301600 |
Washer |
| 9 |
570063000 |
Rubber Stopper |
| 10 |
572084800 |
Reinforcement Stopper |
| 11 |
207054044 |
HEX. SCREW M5 X 40 - Call your local BRP dealership |
| 12 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 13 |
207088044 |
Hex. Screw M8 X 80 |
| 15 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 16 |
503173700 |
WASHER - Call your local BRP dealership |
| 18 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 19 |
503190389 |
SUPPORT - Call your local BRP dealership This part replaces 503174600. |
| 20 |
503183100 |
Washer |
| 21 |
207088544 |
HEX. SCREW M8 X 85 - Call your local BRP dealership |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 23 |
570063600 |
Wheel Cap |
| 24 |
572089000 |
LABYRINTH SEAL - Call your local BRP dealership |
| 25 |
207182544 |
Hex. Screw M8 X 25 |
| 26 |
503189160 |
TENSIONER SPACER - Call your local BRP dealership |
| 27 |
503155300 |
Tensioner |
| 28 |
207063044 |
Hex. Screw M6 X 30 |
| 29 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 30 |
230100044 |
HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 31 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 33 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 34 |
503167900 |
Rear Axle This part replaces 503160700. |
| 35 |
250000019 |
Hex. Screw With Nylon |
| 36 |
503183300 |
Washer |
| 37 |
503189809 |
Outer Spacer This part replaces 503189161. |
| 38 |
503182900 |
Inner Spacer |
| 40 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 41 |
503183000 |
CENTRAL SPACER - Call your local BRP dealership |
| 42 |
503180400 |
Washer |
| 43 |
503153600 |
Wheel Support Axle |
| 44 |
207383044 |
HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 46 |
405404600 |
Ball Bearing |
| 47 |
572048300 |
Spacer |
