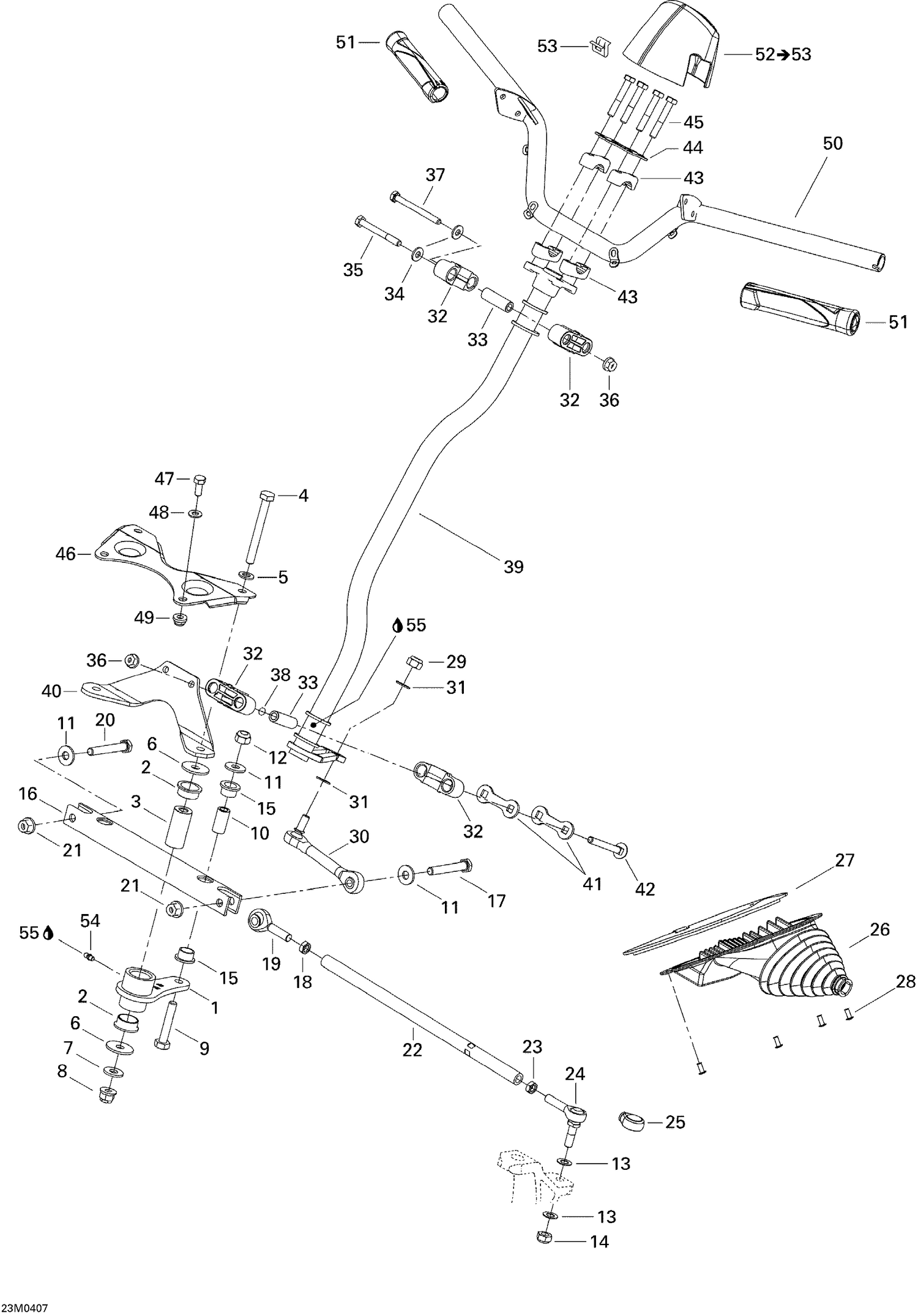

| Ref | Part Number | Description |
|---|
| 1 |
506151651 |
RH Swivel Arm |
| 2 |
415041100 |
CUSHION - Call your local BRP dealership |
| 3 |
506151272 |
SWIVEL PIVOT - Call your local BRP dealership |
| 4 |
207009086 |
HEX. SCREW M10 X 90 - Call your local BRP dealership |
| 5 |
503183800 |
Washer |
| 6 |
506150000 |
Washer 10 mm |
| 7 |
250200014 |
Flat Washer M10 This part replaces 506151251. |
| 8 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
| 9 |
207005544 |
Hex. Screw M10 X 55 |
| 10 |
506151273 |
Pivot Bar |
| 11 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 12 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 13 |
503175800 |
Washer |
| 14 |
232501416 |
Elastic Flange Nut M10 |
| 15 |
503191555 |
Swivel Bushing This part replaces 506150200. |
| 16 |
506151328 |
SWIVEL BAR - Call your local BRP dealership |
| 17 |
207006544 |
Hex. Screw M10 X 1.5 X 65 |
| 18 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 19 |
506151810 |
LH Ball Joint |
| 20 |
Not |
Available As Spare Part - Hex Screw M10 X 45 |
| 21 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 22 |
506151340 |
TIE-ROD - Call your local BRP dealership |
| 23 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 24 |
506151811 |
Ball Joint |
| 25 |
506151650 |
PROTECTION CAP - Call your local BRP dealership |
| 26 |
506151725 |
RH Tie-Rod Cap |
| 27 |
506151356 |
RH RETAINER RING - Call your local BRP dealership |
| 28 |
390402200 |
Pop Rivet 3/16" |
| 29 |
232501416 |
Elastic Flange Nut M10 |
| 30 |
506151621 |
BALL JOINT, DOUBLE - Call your local BRP dealership |
| 31 |
503175800 |
Washer |
| 32 |
506150400 |
Housing Half |
| 33 |
506150500 |
Housing Bushing |
| 34 |
503189157 |
Washer |
| 35 |
207087044 |
Hex. Screw M8 X 70 |
| 36 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 37 |
207088044 |
Hex. Screw M8 X 80 |
| 38 |
506151140 |
O-RING - Call your local BRP dealership |
| 39 |
506151334 |
Main Tube |
| 40 |
506151330 |
STEERING SHAFT SUPPORT - Call your local BRP dealership |
| 41 |
506150600 |
Stopper Plate |
| 42 |
207787044 |
Carriage Bolt M8 X 70 |
| 43 |
709400919 |
Steering Support This part replaces 506151622. |
| 44 |
506151547 |
REINFORCEMENT - Call your local BRP dealership |
| 45 |
250000082 |
HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership |
| 46 |
506151536 |
PIVOT SUPPORT - Call your local BRP dealership |
| 47 |
207182044 |
Hex. Screw M8 X 20 |
| 48 |
234081410 |
Flat Washer 8 mm |
| 49 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 50 |
506151667 |
Handlebar |
| 51 |
506152238 |
Handle Grip This part replaces 506151716. |
| 53 |
517302785 |
Edge Clip |
| 54 |
408200700 |
Grease Fitting |
| 506151357 |
Anneau |
De Retenue GA - Appelez votre concessionnaire BRP local 506151357 |
| 506151357 |
LH |
RETAINER RING - Call your local BRP dealership 506151357 |
| 506151652 |
Bras |
De Pivot GA - Appelez votre concessionnaire BRP local 506151652 |
| 506151652 |
LH |
SWIVEL ARM - Call your local BRP dealership 506151652 |
| 506151726 |
Capuchon |
De Timonerie GA 506151726 |
| 506151726 |
LH |
Tie-Rod Cap 506151726 |
