| Ref | Part Number | Description |
|---|
| B |
710001589 |
Female Terminal |
| B |
710001591 |
Cover, 48 positions |
| B |
710001592 |
Plug |
| B |
710001593 |
Plug |
| B |
710001727 |
Female Terminal |
| B |
710001728 |
Terminal |
| B |
710001967 |
Molex Housing, 48 Circuits |
| BAT1 |
710003266 |
Terminal 90° |
| BAT1 |
710005488 |
PROTECTOR CAP - Call your local BRP dealership |
| BN1 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| BN1 |
250000437 |
Stainless, Socket Screw, M6X16 S.Grip This part replaces 205461660. |
| BN1 |
710000913 |
Terminal |
| BP1 |
710000913 |
Terminal |
| BP2 |
710000495 |
Protector Cap |
| CL |
515175801 |
Female Housing, 24 Circuits |
| CL |
515175802 |
Retainer Block |
| CL |
515175803 |
Wire Seal |
| CL |
515175812 |
Plug |
| CL |
710000399 |
Female Housing |
| CL |
710001131 |
Female Terminal |
| D2 |
409012700 |
Diode |
| DB |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| DB |
710002705 |
Lock |
| DB |
710002706 |
Female Housing 6 Circuits |
| DB |
710005438 |
Female Terminal |
| DB |
710005439 |
Female Terminal |
| DB_CAP |
710003006 |
Housing |
| DC1 |
710005077 |
Terminal |
| DC1 |
710005373 |
Housing |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DC3_CAP |
710000667 |
Male Housing, 2 Circuits |
| DESS |
710001161 |
Housing |
| DESS |
710001162 |
Lock |
| DESS |
710001163 |
Wire Seal |
| DESS |
710001164 |
Female Terminal |
| DPS |
278002186 |
Wire Seal |
| DPS |
278002187 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001873 |
Terminal |
| DPS |
710002075 |
Plug |
| DPS |
710003153 |
Seal |
| DPS |
710004989 |
Female Housing |
| DPS |
710005098 |
Lock |
| DPSSW |
710002000 |
Housing |
| DPSSW |
710005491 |
Female Terminal |
| EVAP |
409012100 |
Female Terminal |
| EVAP |
710000402 |
Wire Seal |
| FP |
278002185 |
Male Housing, 4 Circuits |
| FP |
278002186 |
Wire Seal |
| FP |
278002187 |
Female Terminal |
| FP |
710001222 |
Lock |
| FP |
710001873 |
Terminal |
| FP |
710003153 |
Seal |
| FRA |
515175658 |
Female Housing, 2 Circuits |
| FRA |
710003896 |
Female Terminal |
| FT |
278000217 |
Female Housing, 2 Circuits |
| FT |
278000218 |
Wire Seal |
| FT |
409004300 |
Male Terminal |
| FT |
710000992 |
Clip |
| FT2 |
278000217 |
Female Housing, 2 Circuits |
| FT2 |
278000218 |
Wire Seal |
| FT2 |
409004300 |
Male Terminal |
| FT2 |
409210100 |
Clip Bracket Connector (edge) |
| HIBM |
710002000 |
Housing |
| HIBM |
710003047 |
Terminal |
| HIC |
710001222 |
Lock |
| HIC |
710001225 |
Cap |
| HIC |
710001228 |
Terminal |
| HIC |
710001229 |
Terminal |
| HIC |
710001233 |
Seal |
| HIC |
710001332 |
Seal Wire |
| HIC |
710001928 |
Housing |
| HIC5ML |
278000222 |
Male Terminal |
| HIC5ML |
278000281 |
Female Terminal Housing, 3 Circuits |
| HIC5ML |
278001065 |
Wire Seal |
| HIC5ML |
710001343 |
Clip |
| HIC5MR |
278000222 |
Male Terminal |
| HIC5MR |
278000281 |
Female Terminal Housing, 3 Circuits |
| HIC5MR |
278001065 |
Wire Seal |
| HIC5MR |
710001343 |
Clip |
| HL_L |
278001482 |
Seal |
| HL_L |
710000645 |
Housing |
| HL_L |
710001134 |
Female Terminal |
| HL_R |
278001482 |
Seal |
| HL_R |
710000645 |
Housing |
| HL_R |
710001134 |
Female Terminal |
| HO2S1 |
278001482 |
Seal |
| HO2S1 |
710001343 |
Clip |
| HO2S1 |
710002466 |
Housing |
| HO2S1 |
710002469 |
Lock |
| HO2S1 |
710002597 |
Gold Terminal |
| MODE |
710002000 |
Housing |
| MODE |
710003047 |
Terminal |
| MODE |
710005491 |
Female Terminal |
| OVR |
710002000 |
Housing |
| OVR |
710003047 |
Terminal |
| OVR |
710005491 |
Female Terminal |
| PF1 |
278000999 |
Wire Seal |
| PF1 |
278002172 |
Foam |
| PF1 |
415128501 |
Seal |
| PF1 |
415129856 |
Fuse Box Base Ass´y |
| PF1 |
710000836 |
Female Terminal |
| PF1 |
710000837 |
Female Terminal |
| PF1 |
710000840 |
Cap |
| PF1 |
710001026 |
Fuse Cover |
| PF1 |
710005492 |
TERMINAL - Call your local BRP dealership |
| PF1 |
710005972 |
Switch Housing |
| PF2 |
278001325 |
Fuse Holder |
| PF2 |
278001326 |
Fuse Holder Cap |
| PF2 |
710000113 |
Female Terminal |
| PPS_F |
710001222 |
Lock |
| PPS_F |
710001229 |
Terminal |
| PPS_F |
710001232 |
Housing |
| PPS_F |
710001233 |
Seal |
| P_BPA |
278000992 |
Open Barrel |
| R1 |
515176774 |
Relay, 30 AMP |
| R10 |
715900824 |
Relay This part replaces 710001778. |
| R2 |
715900824 |
Relay This part replaces 710001778. |
| R3 |
515176775 |
Relay, 50 AMP |
| R8 |
715900824 |
Relay This part replaces 710001778. |
| SB |
278001482 |
Seal |
| SB |
710001134 |
Female Terminal |
| SB |
710002043 |
Lock |
| SB |
710002177 |
Housing |
| SIG_L |
278001482 |
Seal |
| SIG_L |
710001134 |
Female Terminal |
| SIG_L |
710005321 |
Female Housing |
| SIG_R |
278001482 |
Seal |
| SIG_R |
710001134 |
Female Terminal |
| SIG_R |
710005321 |
Female Housing |
| SPARE1 |
710000744 |
Little Fuse, 10 Amperes |
| SPARE2 |
710000744 |
Little Fuse, 10 Amperes |
| SPARE3 |
710000744 |
Little Fuse, 10 Amperes |
| SPARE4 |
710000746 |
Little Fuse, 20 Amperes |
| SPARE5 |
710000746 |
Little Fuse, 20 Amperes |
| SPARE6 |
710000747 |
Little Fuse, 30 Amperes |
| SS |
515177192 |
Female Housing, 2 Circuits |
| SS |
710001163 |
Wire Seal |
| SS |
710001164 |
Female Terminal |
| STSW |
710000402 |
Wire Seal |
| 2X4 |
710002000 |
Housing |
| 2X4 |
710003047 |
Terminal |
| 2X4 |
710005491 |
Female Terminal |

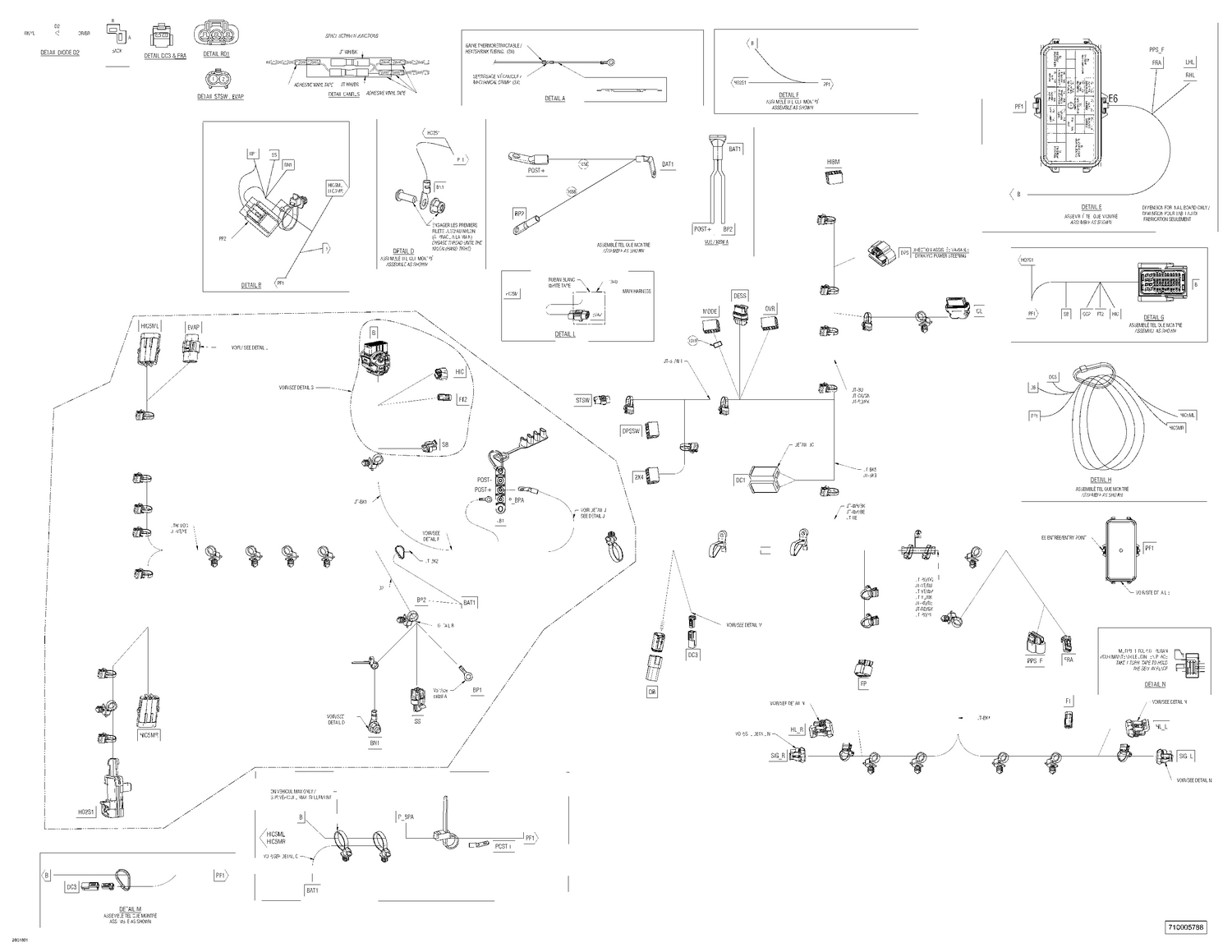

| 300 |
710005788 |
Harness-Ass'y |
