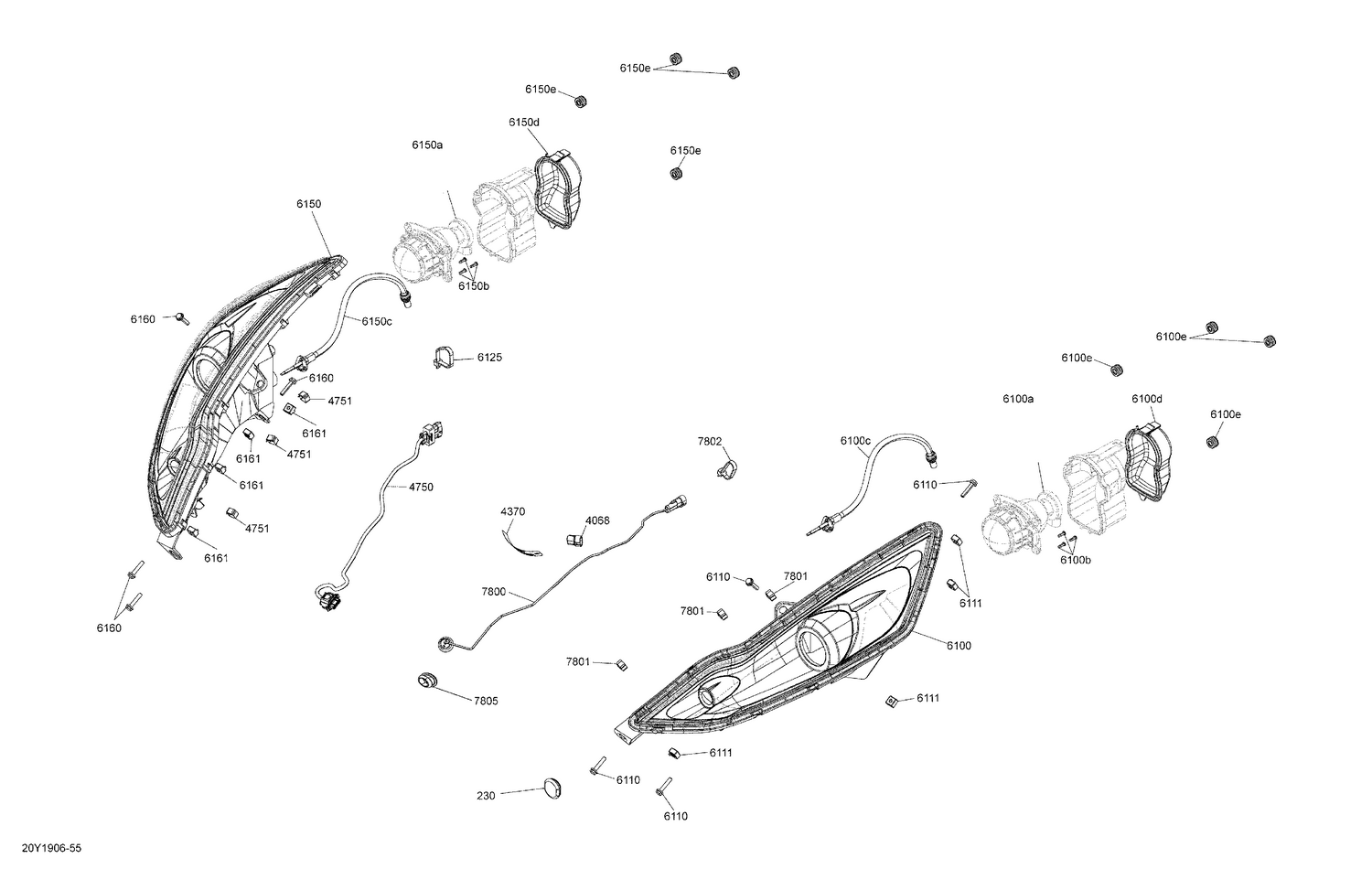

10- Electrical System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 230 | 710002858 | Rubber Plug |
| 4370 | 710003077 | RH/LH Fuse Box Decal |
| 4750 | 710004764 | AAPTS Harness |
| 4751 | 414227300 | Clip |
| 6100a | 219800136 | Halogen Bulb HB3 65W |
| 6100b | 219800110 | CHROMED SCREW 4X13 - Call your local BRP dealership |
| 6100c | 219800105 | Adjustement Cable |
| 6100d | 219800174 | Cover With Seal |
| 6100e | 219800101 | Rubber Vent |
| 6110 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 6111 | 269500252 | M6 Nut Housing Ass'y |
| 6125 | 293750002 | Tie Wrap 142 mm |
| 6150a | 219800136 | Halogen Bulb HB3 65W |
| 6150b | 219800110 | CHROMED SCREW 4X13 - Call your local BRP dealership |
| 6150c | 219800105 | Adjustement Cable |
| 6150d | 219800174 | Cover With Seal |
| 6150e | 219800101 | Rubber Vent |
| 6160 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 6161 | 269500252 | M6 Nut Housing Ass'y |
