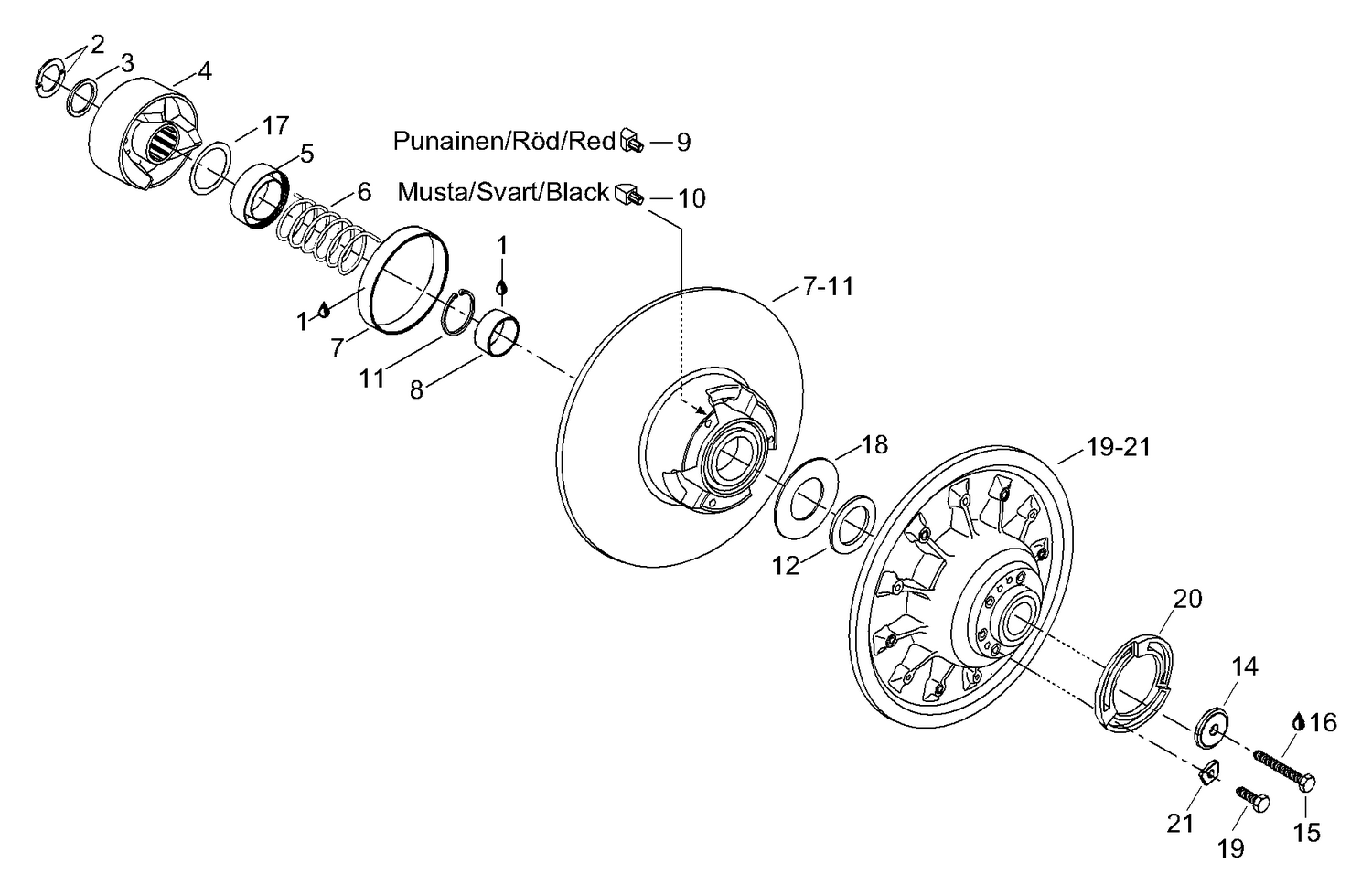

| Ref | Part Number | Description |
|---|
| 1 |
413703100 |
Loctite 609 10cc |
| 2 |
371911000 |
HALF KEY - Call your local BRP dealership |
| 3 |
417126375 |
Spacer |
| 4 |
417126385 |
Cam 47-44 degr. |
| 5 |
417126381 |
GUARD - Call your local BRP dealership |
| 6 |
417126687 |
SPRING, BLACK - Call your local BRP dealership |
| 7 |
417126902 |
BUSHING - Call your local BRP dealership This part replaces 414978100. |
| 8 |
414978200 |
Bushing |
| 9 |
417126373 |
Cam slide shoe (rear) |
| 10 |
417126374 |
Cam slide shoe (front) |
| 11 |
371911200 |
CIRCLIP - Call your local BRP dealership |
| 12 |
504112300 |
SHIM - Call your local BRP dealership |
| 14 |
517302322 |
Washer |
| 15 |
40089 |
M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
417126322 |
SWIVEL ABUTMENT - Call your local BRP dealership |
| 18 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 19 |
207162244 |
HEX. SCREW M6 X 22 - Call your local BRP dealership |
| 19 |
207162544 |
Screw M6x25 |
| 20 |
415005800 |
Ring-adjustment |
