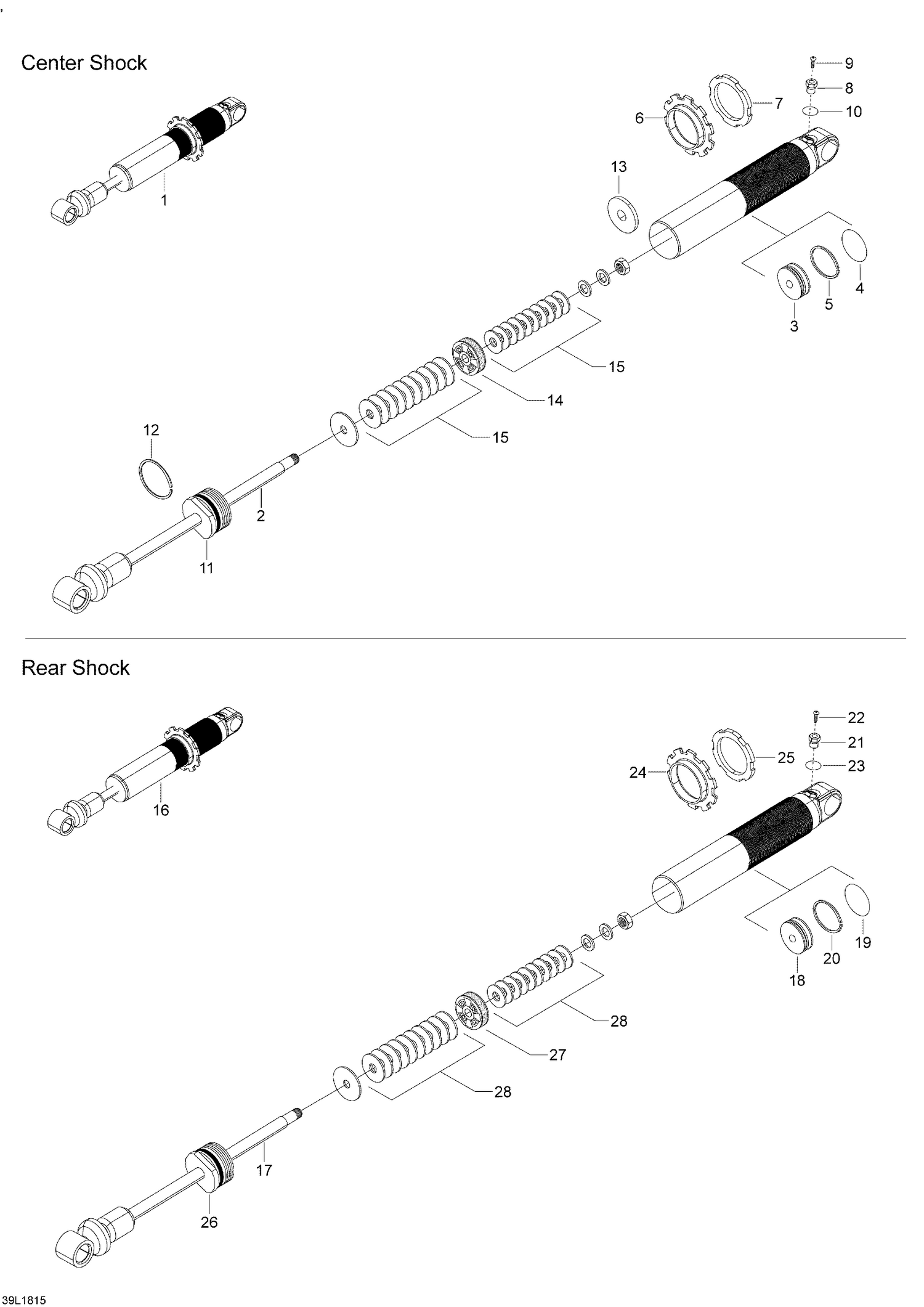

08- Take Apart Shock, Rear XTRIM - 600HO E-TEC

08- Take Apart Shock, Rear XTRIM - 600HO E-TEC

Parts (152)

RefPart NumberDescription
1 503193287 Shock
2 Not Available As Spare Part - Rod Ass'y
3 Not Available As Spare Part - Floating Piston
4 414888312 O-Ring
5 503189308 Piston Ring
6 414888316 SPRING COLLAR - Call your local BRP dealership
7 Not Available As Spare Part - Nut
8 505070398 Air Valve
9 505070399 Screw
10 505070400 O-Ring
11 Not Available As Spare Part - Seal Carrier Ass´y
12 Not Available As Spare Part - Stop Ring
13 Not Available As Spare Part - Dust Seal Ass' y
14 415128848 Piston (2 X 0,3-1) (C36)
14 619300071 Piston 36 mm, 3 x 0,3 Slits
14 619300108 Piston 36 mm, 0 x 0,3 Slits
14 619300109 Piston 36 mm, 4 x 0,3 Slits
14 619300110 Piston 36 mm, 6 x 0,3 Slits
14 619300111 Piston 36 mm, 5 x 0,3 Slits
14 619300161 Piston 36 mm, 2 x 0,3 slits
15 230016 Shim 36 mm, 18 x 0,254
15 230017 Shim 36 mm, 20 x 0,254
15 230018 Shim 36 mm, 22 x 0,114
15 230019 Shim 36 mm, 22 x 0,254
15 230021 Shim 36 mm, 24 x 0,114
15 230022 Shim 36 mm, 24 x 0,152
15 230023 Shim 36 mm, 24 x 0,203
15 230024 Shim 36 mm, 26 x 0,114
15 230025 Shim 36 mm, 28 x 0,114
15 230026 Shim 36 mm, 28 x 0,254
15 619300058 Shim 36 mm, 17 x 0,254
15 619300068 Shim 36 mm, 18 x 0,114
15 619300075 Shim 36 mm, 12 x 0,152
15 619300076 Shim 36 mm, 13 x 0,114
15 619300077 Shim 36 mm, 13 x 0,152
15 619300078 Shim 36 mm, 13 x 0,203
15 619300079 Shim 36 mm, 13 x 0,254
15 619300080 Shim 36 mm, 14 x 0,114
15 619300081 Shim 36 mm, 14 x 0,152
15 619300082 Shim 36 mm, 14 x 0,203
15 619300083 Shim 36 mm. 14 X 0,254
15 619300084 Shim 36 mm, 16 x 0,114
15 619300085 Shim 36 mm, 17 x 0,114
15 619300086 Shim 36 mm, 17 x 0,152
15 619300087 Shim 36 mm, 17 x 0,203
15 619300088 Shim 36 mm, 19 x 0,114
15 619300089 Shim 36 mm, 19 x 0,152
15 619300090 Shim 36 mm, 19 x 0,203
15 619300091 Shim 36 mm, 19 x 0,254
15 619300092 Shim 36 mm, 21 x 0,152
15 619300093 Shim 36 mm, 21 x 0,203
15 619300094 Shim 36 mm, 21 x 0,254
15 619300095 Shim 36 mm, 24 x 0,254
15 619300096 Shim 36 mm, 28 x 0,152
15 619300098 Shim 36 mm, 22 x 0,203
15 619300099 Shim 36 mm, 26 x 0,254
15 619300102 Shim 36 mm, 28 x 0,203
15 619300104 Leaf Valve 30 X 0,152
15 619300113 Shim 36 mm, 30 x 0,254
15 619300114 Shim 36 mm, 16 x 0,152
15 619300115 Shim 36 mm, 15 x 0,152
15 619300116 Shim 36 mm, 16 x 0,254
15 619300117 Shim 36 mm, 12 x 0,203
15 619300118 Shim 36 mm, 15 x 0,254
15 619300119 Shim 36 mm, 16 x 0,203
15 619300120 Shim 36 mm, 12 x 0,254
15 619300121 Shim 36 mm, 15 x 0,114
15 619300122 Shim 36 mm, 15 x 0,203
15 619300123 Shim 36 mm, 18 x 0,152
15 619300124 Shim 36 mm, 18 x 0,203
15 619300125 Shim 36 mm, 20 x 0,114
15 619300126 Shim 36 mm, 20 x 0,152
15 619300127 Shim 36 mm, 20 x 0,203
15 619300128 Shim 36 mm, 21 x 0,114
15 619300129 Shim 36 mm, 22 x 0,152
15 619300130 Shim 36 mm, 26 x 0,152
15 619300131 Shim 36 mm, 26 x 0,203
15 619300132 Shim 36 mm, 30 x 0,203
15 619300162 Shim 36 mm, 12 x 0,114
16 503192998 Shock, Rear
17 Not Available As Spare Part - Rod Ass'y
18 503189008 FLOTTING PISTON - Call your local BRP dealership
19 503189007 O-RING - Call your local BRP dealership
20 503189006 PISTON RING - Call your local BRP dealership
21 505070398 Air Valve
22 505070399 Screw
23 505070400 O-Ring
24 706000062 SHOCK SPRING STOPPER - Call your local BRP dealership
25 706000082 STOPPER RING - Call your local BRP dealership
26 230060 Seal Carrier Ass'y
27 230039 Piston 2,0 Mm
27 230043 Piston 0 Bleed
27 619300159 Piston 1.2
27 619300160 Piston-rod
27 Not Available As Spare Part - Piston 46 mm, 2.2 mm
28 230029 Leaf Valve 20 X 0,114
28 230030 Leaf Valve 20 X 0,152
28 230031 Leaf Valve 20 X 0,203
28 230032 Leaf Valve 20 X 0,254
28 230033 Leaf Valve 34 X 0,114
28 230034 Leaf Valve 34 X 0,152
28 230035 Leaf Valve 34 X 0,203
28 230036 Leaf Valve 34 X 0,254
28 230037 Leaf Valve 36 X 0,114
28 230040 Leaf Valve 38 X 0,152
28 230041 Leaf Valve 38 X 0,203
28 230042 Leaf Valve 38 X 0,254
28 230082 Leaf Valve D32 X 0.114.
28 619300022 Leaf Valve 32 X 0,305
28 619300056 Leaf Valve 30 X 0,305
28 619300059 Leaf Valve 32x0,254
28 619300060 Leaf Valve 17x0,114
28 619300067 Leaf Valve 18x0,152
28 619300068 Shim 36 mm, 18 x 0,114
28 619300069 Leaf Valve 17x0,203
28 619300070 Leaf Valve 34 X 0,305
28 619300095 Shim 36 mm, 24 x 0,254
28 619300097 Leaf Valve 20 X 0,305
28 619300098 Shim 36 mm, 22 x 0,203
28 619300099 Shim 36 mm, 26 x 0,254
28 619300100 Leaf Valve 26 X 0,305
28 619300101 Leaf Valve 28 X 0,114
28 619300102 Shim 36 mm, 28 x 0,203
28 619300103 Leaf Valve 28 X 0,254
28 619300104 Leaf Valve 30 X 0,152
28 619300105 Leaf Valve 36 X 0,305
28 619300106 Leaf Valve 38 X 0,305
28 619300112 Leaf Valve D40 X 0.203
28 619300113 Shim 36 mm, 30 x 0,254
28 619300134 Washer-piston 22 X
28 619300137 Leaf Valve 32 X 0.152
28 619300138 Leaf Valve 32 X 0.203
28 619300140 Washer-piston 22 X 0.152t
28 619300141 Washer-piston 26 X 0.152t
28 619300142 Washer-piston 36 X 0.203t
28 619300143 Washer-piston 22 X 0.114
28 619300144 Washer-piston 22 X
28 619300145 Washer-piston 24 X
28 619300146 Washer-piston 24 X
28 619300147 Washer-piston 24 X
28 619300148 Washer-piston 24 X
28 619300149 Washer-piston 26 X
28 619300150 Washer-piston 26 X
28 619300151 Washer-piston 28 X
28 619300152 Washer-piston
28 619300153 Washer-Piston 30 X
28 619300154 Washer-piston 30 X
28 619300155 Washer-piston 36 X
28 619300156 Washer-Piston 36 X
28 619300157 Washer-piston 40 X
28 619300158 Washer-Piston 40 X
28 Not Available As Spare Part - Shim 40/46 mm, 17 x 0,152
