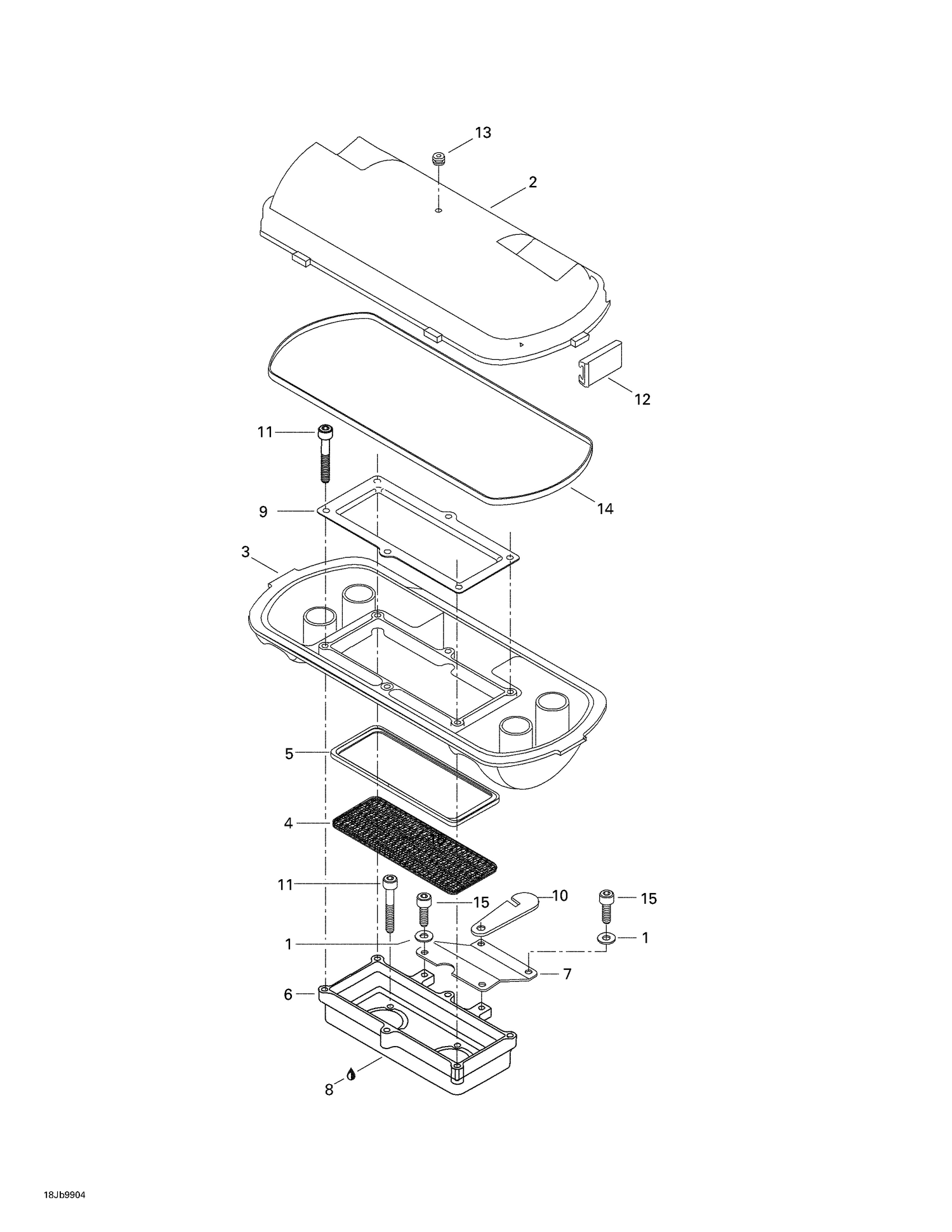

02- Air Intake System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 234061600 | Stainless Flat Washer M6 |
| 2 | 273000115 | AIR SILENCER COVER - Call your local BRP dealership |
| 3 | 204250054 | Air Intake Silencer Base |
| 4 | 273000118 | Flame Arrester |
| 5 | 273000020 | ISOLATOR - Call your local BRP dealership |
| 6 | 273000022190 | Housing Arrester (Double Intake) |
| 7 | 270000412 | Support |
| 9 | 273000059 | HOLDER PLATE - Call your local BRP dealership |
| 10 | 204250072 | Spark Plug Support |
| 11 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 12 | 273000006 | Retainer Clip |
| 13 | 293830005 | Rubber Bumper |
| 14 | 293250023 | GASKET - Call your local BRP dealership |
