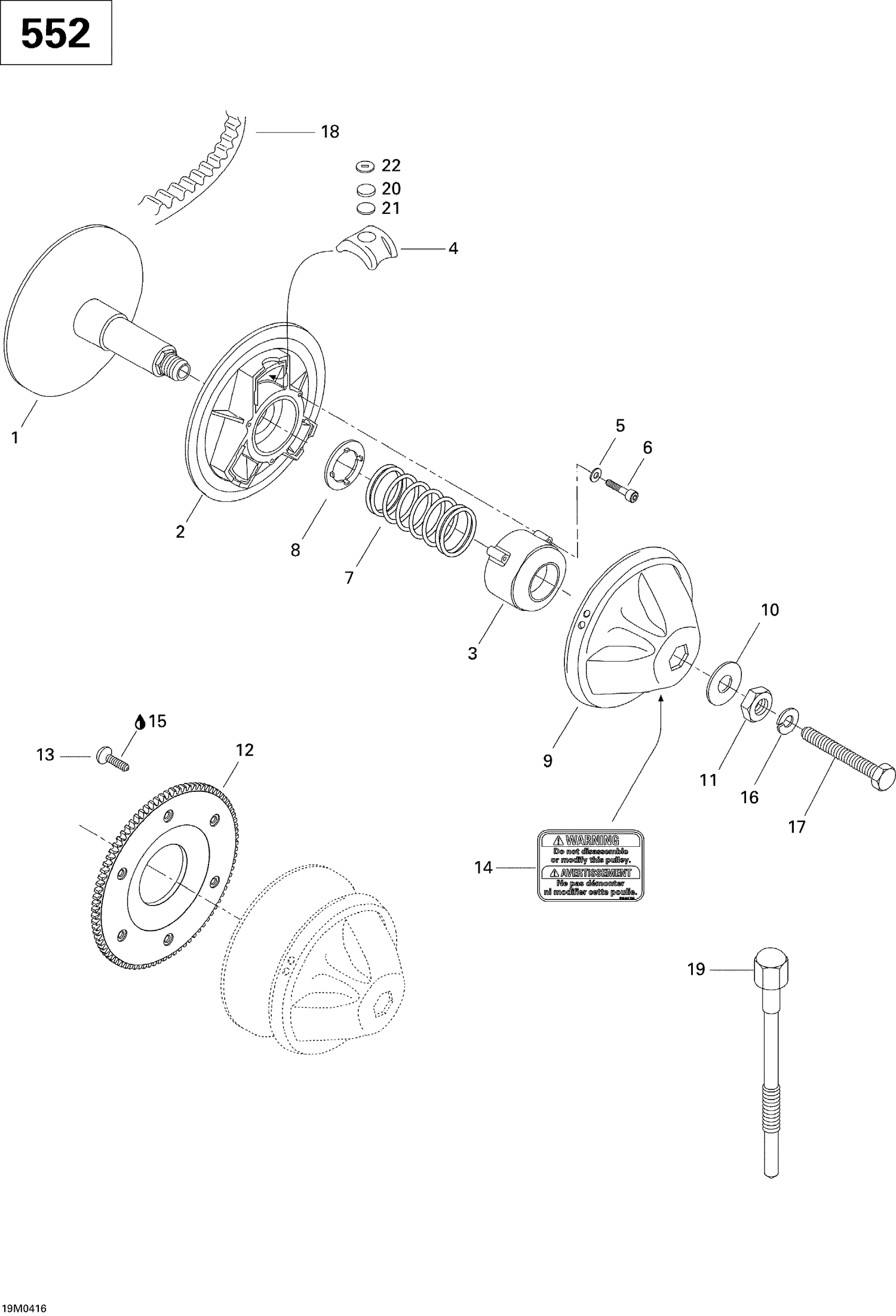

| Ref | Part Number | Description |
|---|
| 1 |
M140054 |
Fixed Flange |
| 2 |
M140055 |
Sliding Flange |
| 3 |
415128602 |
SPRING COVER - Call your local BRP dealership |
| 4 |
417118100 |
CENTRIFUGE BLOCK - Call your local BRP dealership |
| 5 |
420245370 |
WASHER - Call your local BRP dealership |
| 6 |
415128606 |
SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership |
| 7 |
414742100 |
SPRING YELLOW/GREEN - Call your local BRP dealership |
| 8 |
417126694 |
SPRING SEAT - Call your local BRP dealership |
| 9 |
415128609 |
Cap |
| 10 |
415128610 |
WASHER - Call your local BRP dealership |
| 11 |
417118300 |
NUT - Call your local BRP dealership |
| 12 |
417300186 |
RING GEAR - Call your local BRP dealership |
| 13 |
236281684 |
Hex. Screw M8 X 16 |
| 14 |
516001726 |
Security Label |
| 15 |
293800005 |
Loctite 271, 10 ml |
| 16 |
M20090 |
Conical Spring Washer |
| 17 |
417113800 |
BOLT - Call your local BRP dealership |
| 18 |
414633800 |
Drive Belt |
| 19 |
529000064 |
Puller This part replaces 529022400. |
| 20 |
417120400 |
ADJUSTMENT WEIGH - Call your local BRP dealership |
| 21 |
417114400 |
ADJUSTMENT WEIGH - Call your local BRP dealership |
