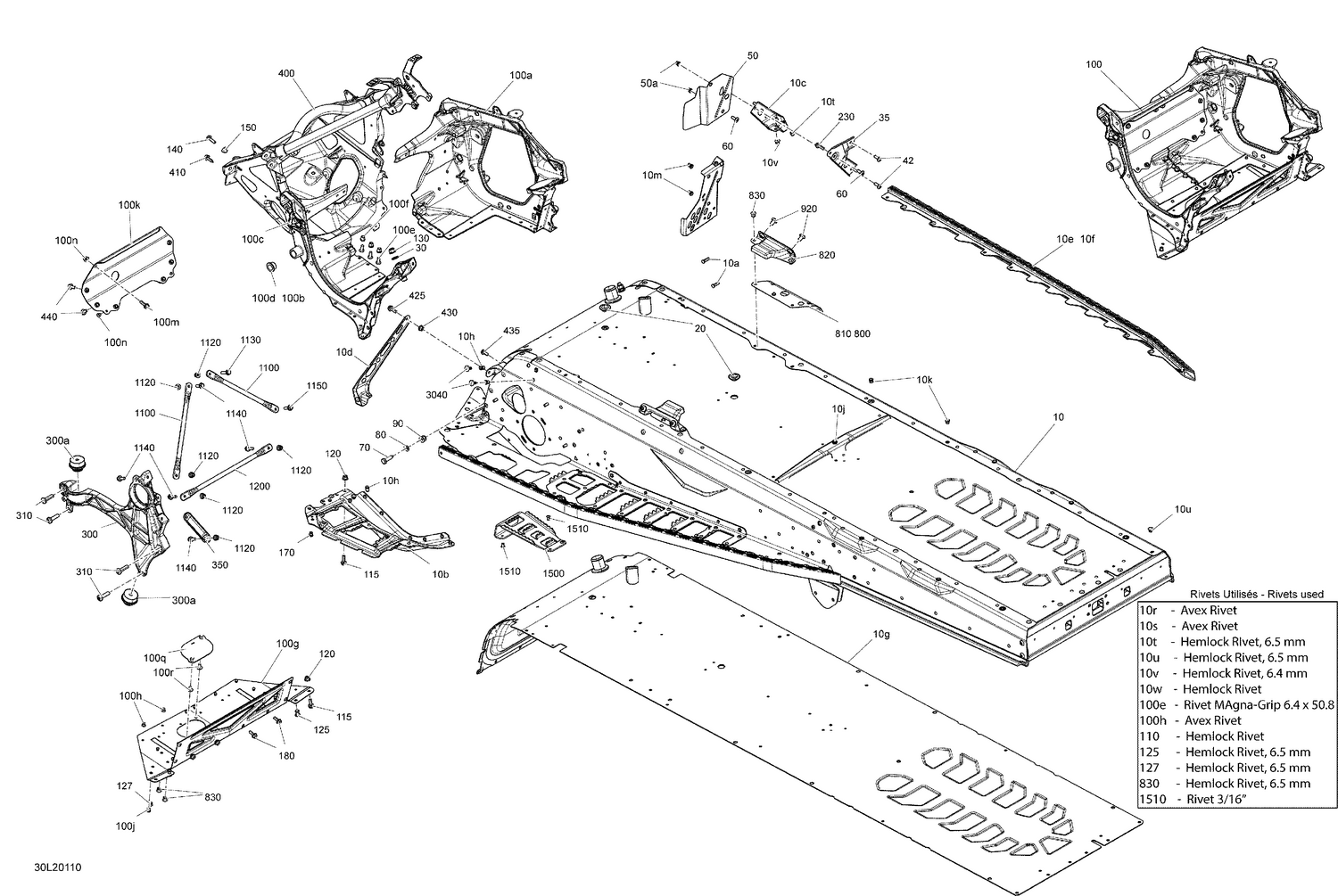

| Ref | Part Number | Description |
|---|
| 10a |
250300027 |
Clinch Stud M6 X 20 |
| 10b |
518330976 |
LH Drive Axle Cover |
| 10c |
518329789 |
RH Footrest Reinforcement |
| 10d |
518331560 |
Deep Black, LH Chasssis Reinforcement |
| 10e |
518330282 |
RH Roller |
| 10f |
518330281 |
LH Roller |
| 10g |
518332324 |
Radiator_Tunnel 129 Assy This part replaces 518331794. |
| 10h |
605636003 |
Clinch Nut M6 Hexsert |
| 10j |
293450275 |
Insert |
| 10m |
605636003 |
Clinch Nut M6 Hexsert |
| 10r |
390909100 |
Avex Rivet |
| 10s |
390909200 |
Avex Rivet |
| 10t |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10u |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10v |
293150174 |
Hemlock Rivet, 6.5 mm |
| 10w |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 20 |
293730052 |
Black, Plug |
| 30 |
506151252 |
Washer |
| 35 |
518331727 |
RH Stirrup Reinforcement |
| 42 |
250000717 |
Torx Head Screw M6 X 16 |
| 50a |
605636003 |
Clinch Nut M6 Hexsert |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100b |
505073317 |
Leg Cushion |
| 100d |
505073317 |
Leg Cushion |
| 100e |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100f |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100g |
518329342 |
Bottom Plate |
| 100h |
390909100 |
Avex Rivet |
| 100j |
293450268 |
Insert M5 X 0.8 |
| 100k |
518330100 |
Front Member |
| 100m |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100n |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100q |
518329454 |
Oil Plate |
| 100r |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 115 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 127 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 350 |
518331740 |
LH Front Chassis Reinforcement |
| 400 |
518334551 |
Chassis Suspension Module Ass'y This part replaces 518330570. |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 425 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 435 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 440 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 800 |
518331729 |
LH Under Chassis Reinforcement |
| 810 |
518331731 |
RH Under Chassis Reinforcement |
| 820 |
518331733 |
Cross Member Support |
| 830 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562054 |
Hex. Flange Screw S.GRIP M6 X 20 |
| 1200 |
518329756 |
Center Colomn Support |
