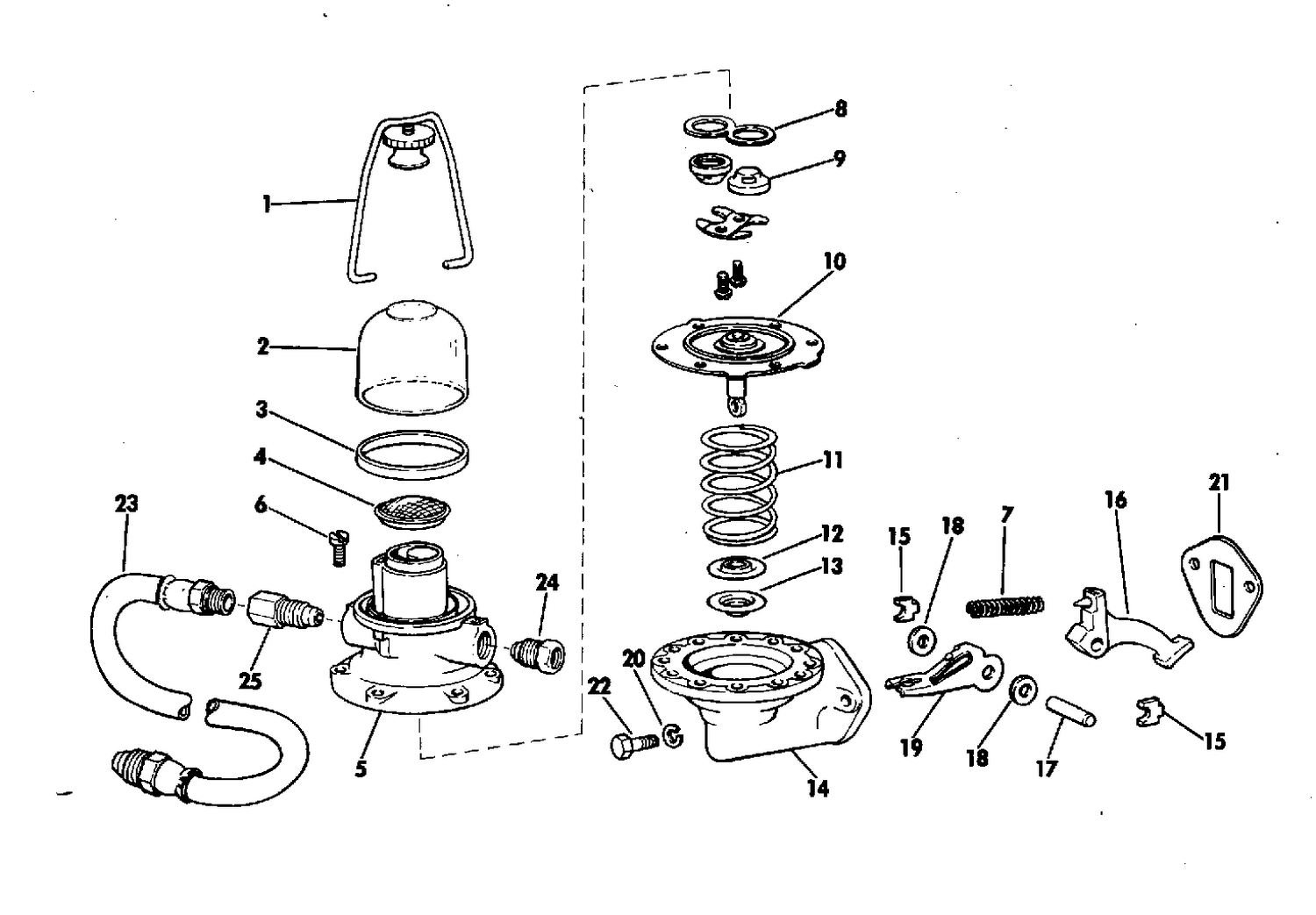

FUEL PUMP GROUP 90 HP
Parts (24)
| Ref | Part Number | Description |
|---|
| 1 |
EIADKN-9387-B |
YOKE, Bowl |
| 2 |
EIADKN-9355 |
BOWL, Filter |
| 3 |
EIADKN-9364-A |
GASKET, Filter bowl |
| 4 |
109E-9365 |
SCREEN, Filter |
| 5 |
105E-9351 |
BODY, Upper |
| 6 |
31612-S7/8 |
SCREW, Body halves |
| 7 |
BE-9380 |
SPRING, Rocker arm |
| 8 |
EIADDN-9365 |
GASKET, Valve |
| 9 |
105E-9352 |
VALVE |
| 10 |
2735E-9398-A |
DIAPHRAGM ASSEMBLY |
| 11 |
E93A-9396 |
SPRING DIAPHRAGM |
| 12 |
EOTA-99401 |
RETAINER, Seal |
| 13 |
EOTA-99399-B |
SEAL |
| 14 |
109E-9375 |
BODY, Lower |
| 15 |
EIADKN-9379-B |
RETAINER, Pin |
| 16 |
109E-9376-B |
ARM, Rocker |
| 17 |
EIADKN-9378 |
PIN, Rocker arm |
| 18 |
78E-9389 |
WASHER, Pin |
| 19 |
E93A-9381-B |
LINK |
| 20 |
34806-S7/8 |
LOCKWASHER |
| 21 |
105E-9374 |
GASKET, Pump mounting |
| 22 |
20406-S2 |
BOLT, Pump mounting |
| 23 |
0381956 |
HOSE ASSEMBLY |
| 24 |
0314122 |
FITTING, Fuel pump |
