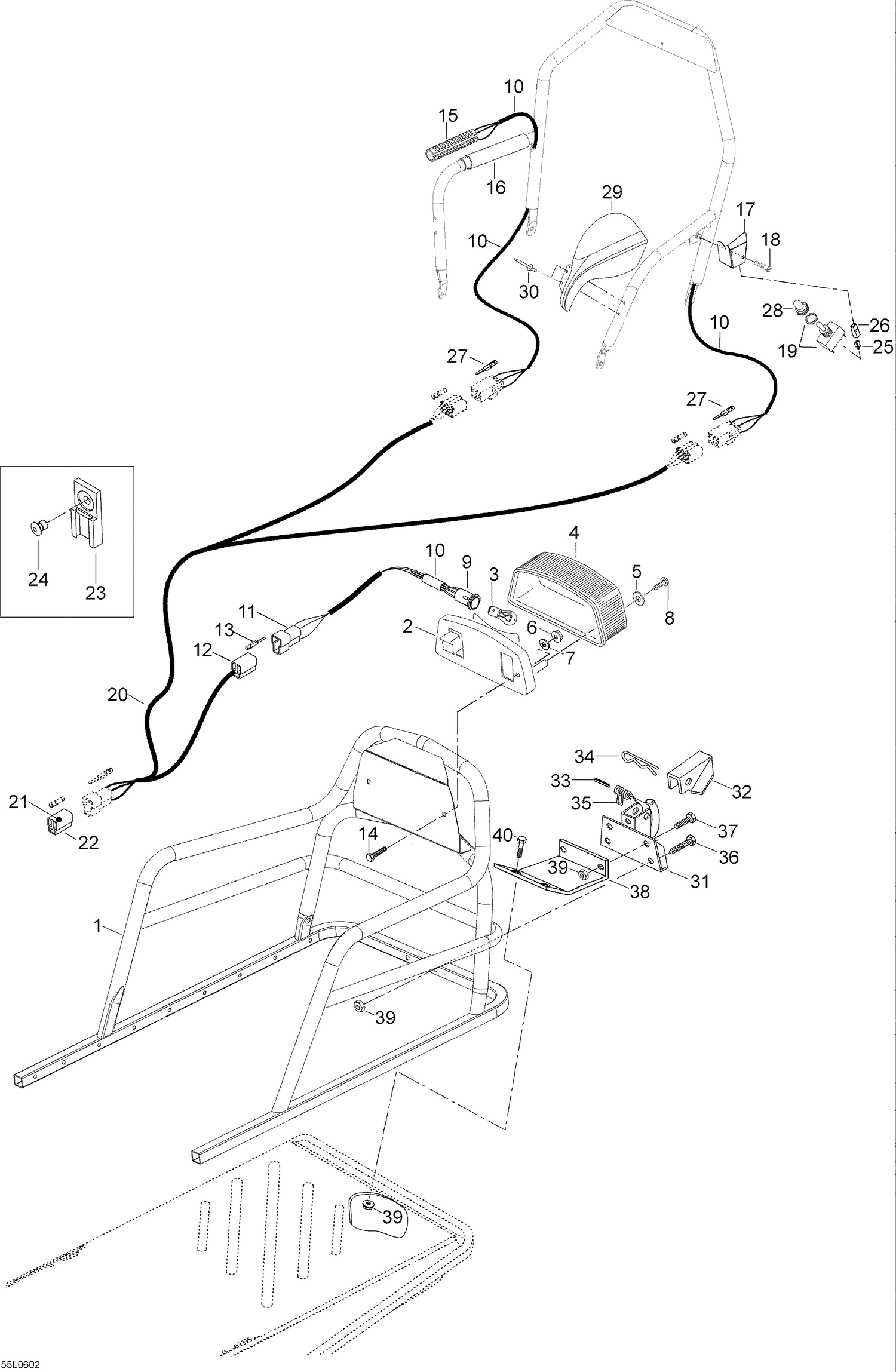

| Ref | Part Number | Description |
|---|
| 1 |
605150300 |
Rack |
| 2 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 3 |
520000758 |
Bulb This part replaces 410504000. |
| 4 |
414513700 |
Lens |
| 5 |
414516400 |
Washer - Call your local BRP dealership |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 7 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 8 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 9 |
515175852 |
Wiring harness |
| 10 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 11 |
42271 |
Male connector housing |
| 12 |
42606 |
Female connector housing |
| 13 |
605642629 |
Connector AMP 926882-3 - Call your local BRP dealership This part replaces 42614. |
| 14 |
40149 |
Locking screw M6 x 30 |
| 15 |
515175573 |
Heater |
| 16 |
415050300 |
Grip |
| 17 |
605350310 |
Bracket |
| 18 |
40393 |
Socket head screw M6 x 30 |
| 19 |
410107300 |
Switch |
| 20 |
605250449 |
Wiring harness |
| 21 |
409206900 |
Male Housing, 2 Circuits |
| 22 |
409207500 |
Lock |
| 23 |
270000141 |
Clip |
| 24 |
36009 |
Rivet |
| 25 |
42178 |
Connector |
| 26 |
42179 |
Connector housing |
| 27 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 28 |
515175281 |
Cover |
| 29 |
572089400 |
RH Passengers hand grip shelter |
| 29 |
572089500 |
LH Passengers hand grip shelter |
| 30 |
36037 |
Rivet |
| 31 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 32 |
5440767 |
Lock |
| 33 |
41012 |
Spring Pin |
| 34 |
41029 |
Needle Pin |
| 35 |
545693 |
SPRING - Call your local BRP dealership |
| 36 |
40007 |
Hex. screw M8 x 40 |
| 37 |
40037 |
Hex. screw M8 x 25 |
| 38 |
605349063 |
Support |
| 39 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
