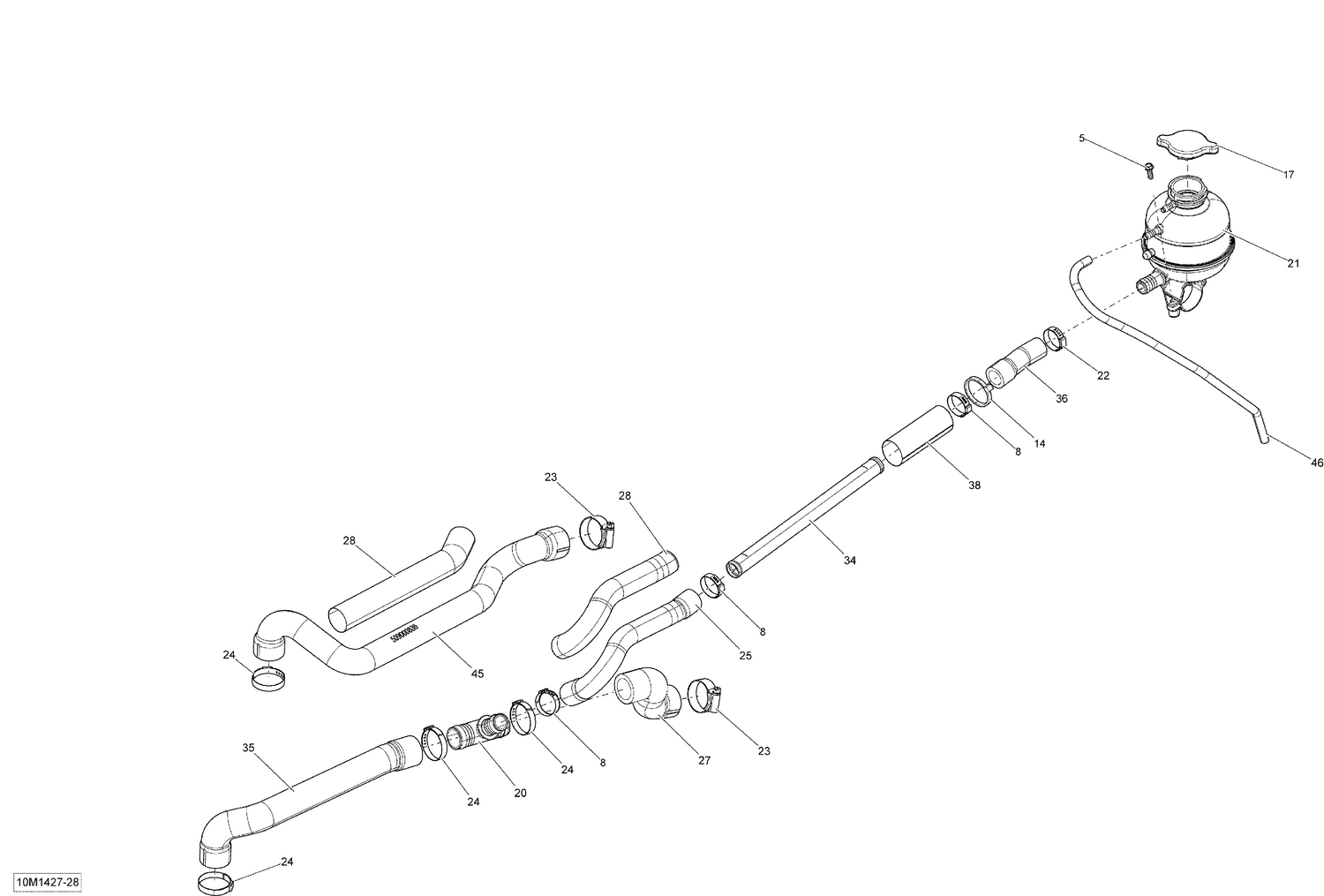

01- Cooling System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 8 | 293650099 | Crimp Clamp |
| 14 | 414115200 | Tie-Rap 180 mm |
| 17 | 509000180 | Radiator Pressure Cap |
| 20 | 509000372 | T-Fitting |
| 21 | 509000421 | Coolant Tank |
| 22 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 23 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 24 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 25 | 509000563 | HOSE - Call your local BRP dealership |
| 27 | 509000565 | Engine Inlet Hose |
| 28 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 34 | 509000644 | PIPE - Call your local BRP dealership |
| 35 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 36 | 509000698 | HOSE - Call your local BRP dealership |
| 38 | 707001349 | Protector Tube This part replaces 509000730. |
| 45 | 509000836 | Engine Outlet Hose |
