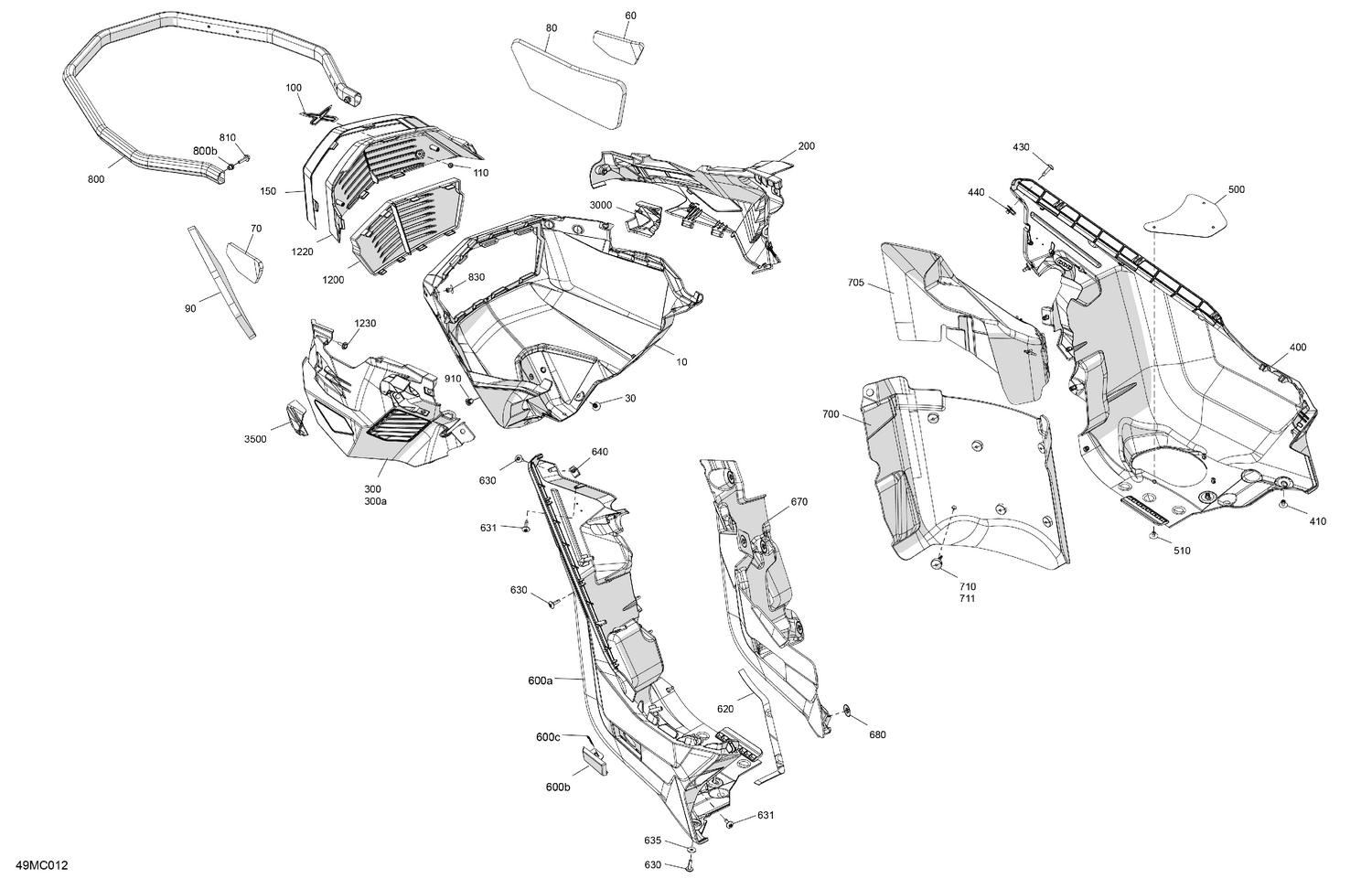

07- Body - Bottom Pan
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502008645 | Deep Black, Front Bottom Pan This part replaces 502008256. |
| 30 | 293150104 | Pop Rivet 3/16" |
| 60 | 502008308 | RH Front Central Bottom Pan Foam |
| 70 | 502008309 | LH Front Central Bottom Pan Foam |
| 80 | 502008355 | Bonded Foam |
| 90 | 502008356 | Bonded Foam |
| 100 | 502008454 | Emblem X |
| 110 | 250100206 | Push Nut |
| 150 | 502008386 | Spartan Red, Central Trim |
| 200 | 502008264 | Deep Black, RH Bottom Pan Cap |
| 300a | 502008265 | Deep Black, LH Bottom Pan Cap |
| 400 | 502008223 | Deep Black, RH Bottom Pan |
| 410 | 293150104 | Pop Rivet 3/16" |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 500 | 502008690 | Plate This part replaces 502008283. |
| 510 | 293150103 | Pop Rivet 3/16" |
| 600a | 502008222 | Deep Black, LH Bottom Pan |
| 600b | 502008267 | Bottom Pan Door |
| 600c | 269800431 | Hairpin Cotter |
| 620 | 219704476 | Gasket, Neoprene 2000Mm Long |
| 630 | 250000586 | Torx Truss M5 X 20 |
| 631 | 250000586 | Torx Truss M5 X 20 |
| 635 | 250200025 | Washer M5 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 670 | 502008240 | LH Lower Acoustic Panel |
| 680 | 508000853 | Push Nut |
| 700 | 502008754 | Acoustic Panel This part replaces 502008353. |
| 705 | 502008254 | Acoustic Panel |
| 710 | 502008621 | Stopper This part replaces 502008396. |
| 711 | 502008621 | Stopper This part replaces 502008396. |
| 810 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 | 293150104 | Pop Rivet 3/16" |
| 910 | 518321954 | Panel Fastener |
| 1200 | 502008245 | Lower Prefilter Grille |
| 1220 | 502008736 | Upper Grille Prefilter This part replaces 502008244. |
| 1230 | 250000725 | Screw M4 X 16 |
| 3000 | 502008363 | Deep Black, LH Front Cap |
