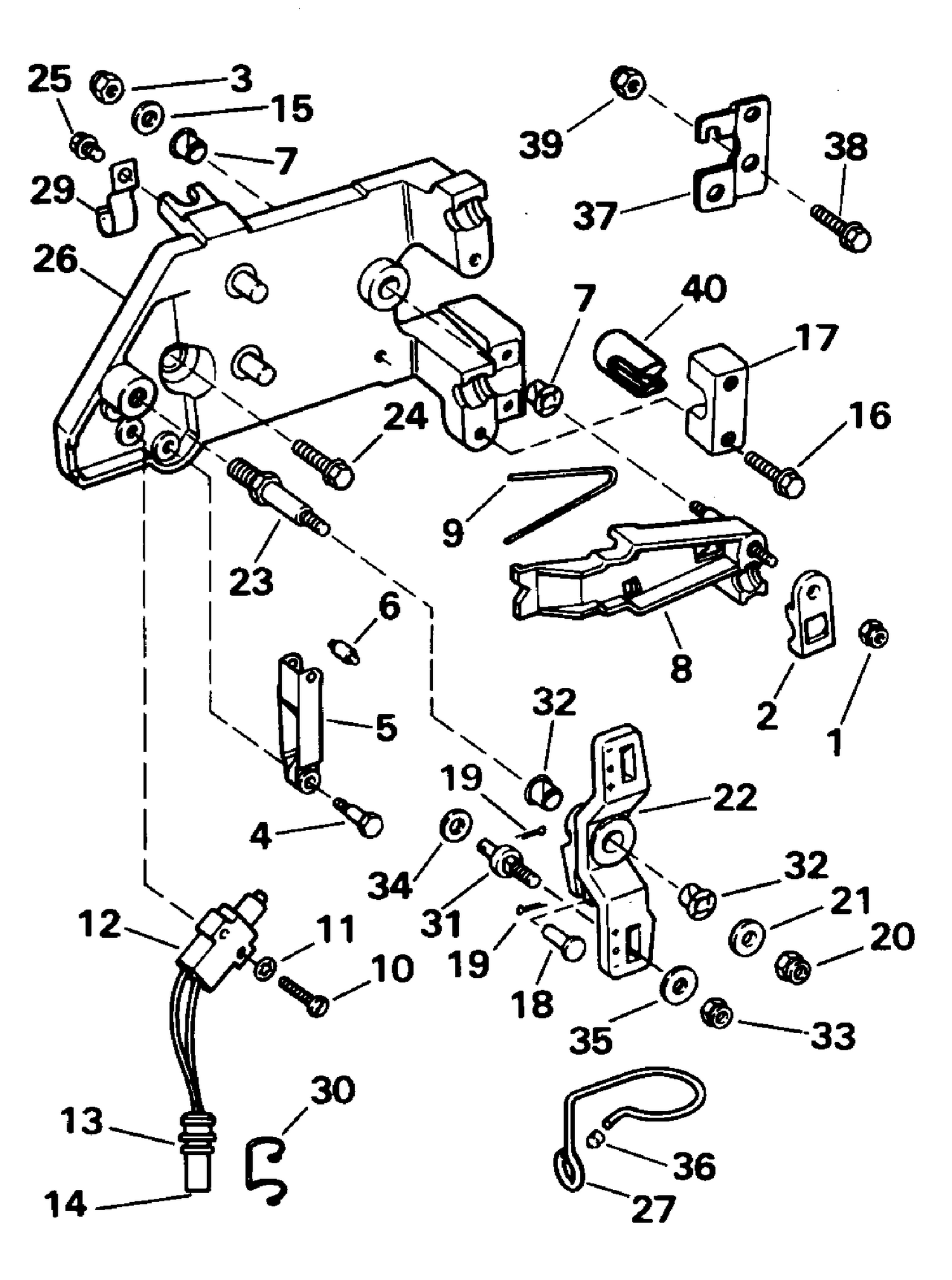

| Ref | Part Number | Description |
|---|
| 2 |
3853249 |
ANCHOR, Shift cable |
| 4 |
3853248 |
SCREW, Shift interrupter cam |
| 5 |
3853251 |
CAM, Shift switch |
| 6 |
3853247 |
ROLLER, Cam, shift interrupter |
| 8 |
3853250 |
HOUSING, Shift interrupter |
| 9 |
3853322 |
SPRING, Shift interrupter |
| 12 |
3854432 |
SWITCH, Shift assist This part replaces 3854133. |
| 13 |
3853564 |
CONNECTOR |
| 15 |
0328738 |
LOCKWASHER This part replaces 3852189. |
| 16 |
0303459 |
ECREW,Exhaust cover,1-1/2"long This part replaces 3852048. |
| 17 |
3850266 |
ANCHOR BLOCK |
| 18 |
3852835 |
PIN, Shift cable |
| 21 |
0328738 |
LOCKWASHER This part replaces 3852189. |
| 22 |
3853753 |
LEVER, Shift |
| 23 |
3853296 |
SHAFT, Shift lever |
| 24 |
0341013 |
SCREW, Cover This part replaces 3852454. |
| 26 |
3854932 |
BRACKET, Shift |
| 27 |
3853233 |
GUIDE, Shift hose |
| 29 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 3852199. |
| 30 |
0512742 |
DISPOSITIF DE RETENUE, connecteur This part replaces 3852237. |
| 31 |
3853314 |
PIN, Shift cable |
| 36 |
3853537 |
CAP, Breaker assy |
| 37 |
3855055 |
ADAPTOR, Anchor |
| 38 |
0122147 |
VIS, connecteur This part replaces 3852006. |
