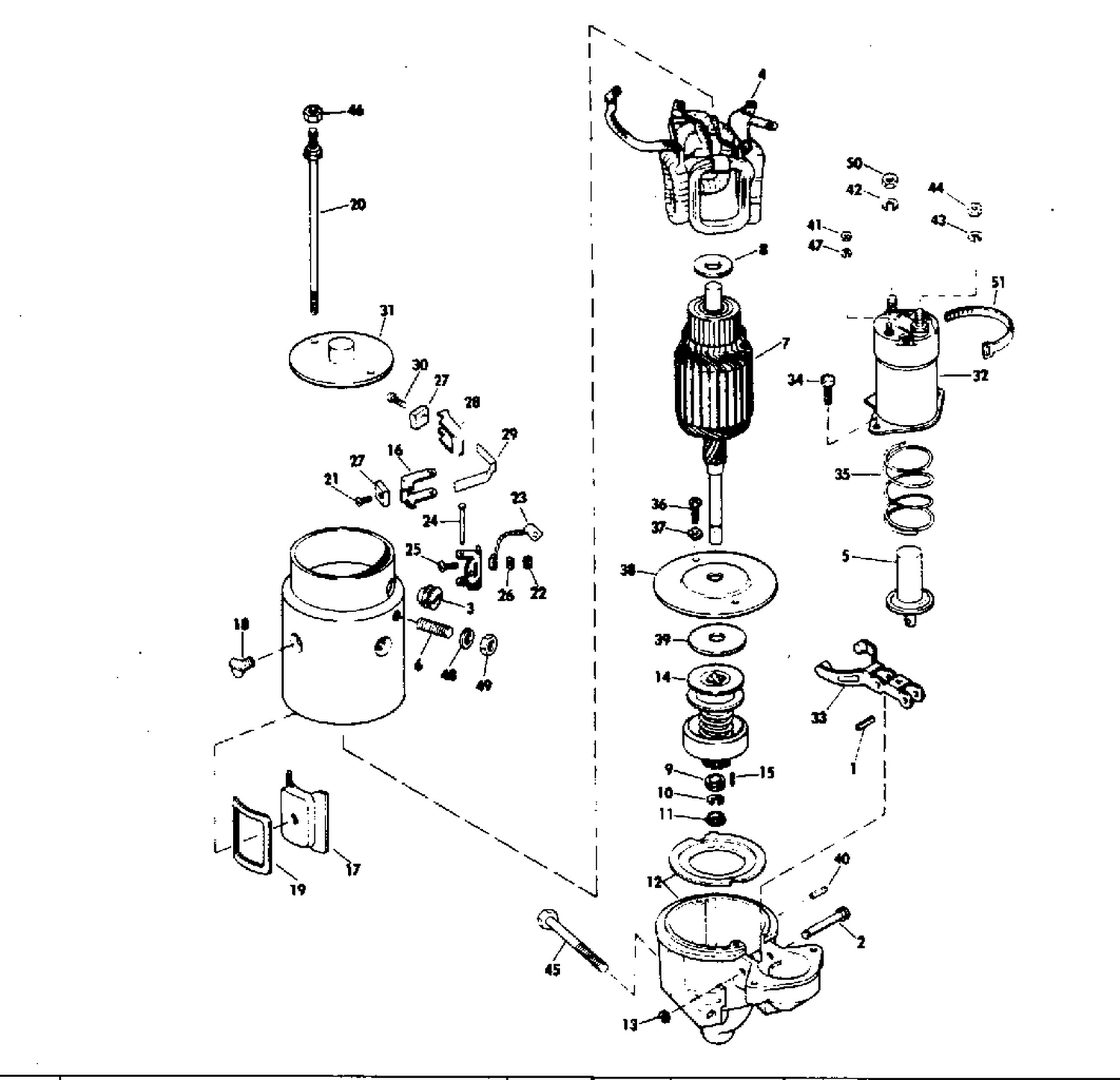

| Ref | Part Number | Description |
|---|
| 1 |
0455106 |
PIN |
| 2 |
1945804 |
SHAFT |
| 3 |
1966391 |
GORMMET |
| 4 |
1877291 |
FIELD COIL |
| 5 |
1941113 |
PLUNGER |
| 6 |
0550074 |
STUD |
| 7 |
0830842 |
ARMATURE |
| 8 |
0818265 |
WASHER |
| 9 |
1927849 |
COLLAR, Stop |
| 10 |
1927848 |
RIKNG |
| 11 |
1927850 |
COLLAR, Thrust |
| 12 |
0830845 |
DRIVE HOUSING (incl bushing) |
| 13 |
9416878 |
RETAINER RING |
| 14 |
1954842 |
DRIVE ASSEMBLY |
| 15 |
0809593 |
DOWEL PIN |
| 16 |
1940477 |
BRUSH HODLER,Grounded |
| 17 |
1931129 |
POLE SHOE |
| 18 |
1970469 |
SCREW, Pole shoe |
| 19 |
1927853 |
INSULATOR |
| 20 |
1939970 |
THRU BOLT |
| 20 |
1941111 |
THRU BOLT |
| 21 |
0310859 |
BOLT, Throttle lever to carb |
| 27 |
1906945 |
BRUSH |
| 28 |
1926618 |
BRUSH HOLDER, Insulated |
| 29 |
1926622 |
BRUSH,Spring |
| 30 |
1967747 |
SCREW |
| 31 |
1928966 |
FRAME & BUSHING |
| 32 |
1114356 |
SWITCH |
| 33 |
0801433 |
LEVER, Shift |
| 34 |
0132255 |
SCREW |
| 35 |
1958679 |
RETURN SPRING |
| 36 |
1914580 |
SCREW |
| 37 |
1962276 |
WASHER |
| 38 |
1956939 |
PLATE |
| 39 |
1914842 |
THRUST WASHER |
| 40 |
0315986 |
ROLL PIN, Drive housing |
| 44 |
0309602 |
LOCK NUT, Steering handle |
| 45 |
1366042 |
SCREW, Starter short |
| 45 |
1366043 |
SCREW, Srarter, long |
| 49 |
0312329 |
NUT |
| 0981078 |
0981078 |
STARTER MTR & STUD ASSY |
| 1928015 |
1928015 |
SUPPORT PACKAGE |
